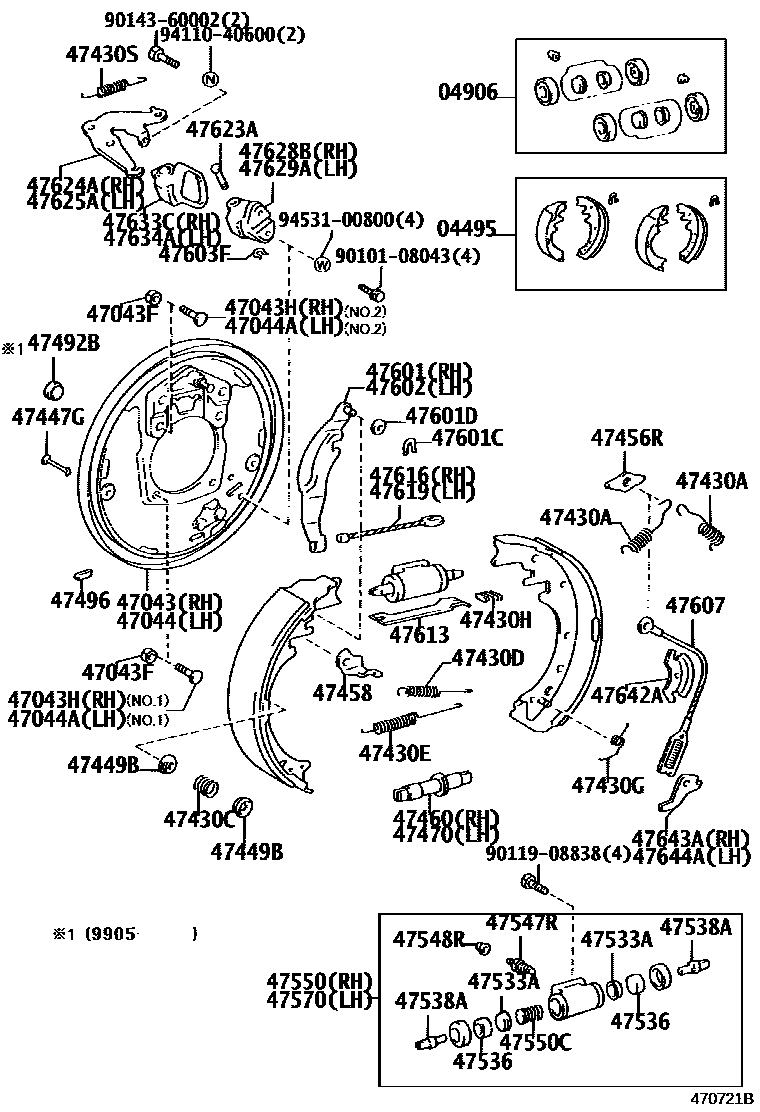

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1���������� 0009 1 0010 1

04495SHOE KIT, REAR BRAKE

main04494-25040iYY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT199505-200107

main04494-25080iLY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST199505-199905

main04495-25080iLY122,132,202,212,YY121,131,201,211..ST199905-200107

main04495-25130iLY21#,YY211..T4199505-200107

main04495-26170iLY162..WT;YY211..ATM199505-200107

main04495-35122iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505-200107

main04495-35151iLY15#..T3,TW2;LY161..(T3,TW1)..TS;LY162..(T3,TW1)..TS..(CBU,IV3)199610-200107

sub04495-35230

main04495-60060iLY16#..TW2;LY16#..ST..15T199610-200107

sub04495-60070

04906CUP KIT, REAR WHEEL CYLINDER

main04906-25050iYY211..(T2,TW2)..MTM..WT;LY201,211,YY201..(T2,TW2)..WT199505-199607

main04906-25051iYY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT199607

main04906-25070iLY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST199505-199905

main04906-26040iLY162..WT;YY211..ATM199505

main04906-26070iLY122,132,202,212,YY121,131,201,211..ST199905

sub04906-26071

main04906-31010iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..T2..125199505

main04906-35080iLY10#,11#,YY101..T1,T3,TW1,TW2199610

main04906-35120iLY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)199610

main04906-36130iLY211,YY211..T4199505-199905

main04906-37070iLY212,YY211..T4199905

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-25080iYY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT199505

main47043-25110iLY21#,YY211..T4199505

main47043-25120iLY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST199505-199905

sub47043-25121

main47043-25140iLY16#..TW2;LY16#..ST..15T199610

main47043-25150iLY102,112,YY101;LY152,162..T2..125199905

main47043-25160iLY122,132,202,212,YY121,131,201,211..ST199905

main47043-26031iLY162..WT;YY211..ATM199505

main47043-26060iLY151,161..T2..125;LY101,111,201,YY101,201..ST..(125,1T)199505-199905

main47043-26071iLY111..IV5199805-199806

main47043-26072iLY11#,16#..IV5199806

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10021×8iLY12#,13#,162,20#,21#,YY121,131,201,211..(T2,TW2)..WT199505

main90170-10178×8iLY211,YY211..T4199505-199802

main90179-10041×8iLY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T)199505

main90179-12119×8iLY16#..TW2;LY16#..ST..15T199610

main94110-71000×12iLY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST199505

main94130-01002×8iLY21#,YY211..T4199802

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main42184-35011×6iLY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST199505

main90101-10028×4iLY12#,13#,162,20#,21#,YY121,131,201,211..(T2,TW2)..WT199505

main90101-12175×4iLY16#..TW2;LY16#..ST..15T199610

main90114-10002×4iLY151..T3,TW2;LY161..(T3,TW1)..TS199610-199805

main90114-10016×2iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main90114-10019×4iLY21#,YY211..T4199505-199907

main90114-10063×4iLY212,YY211..T4199907

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-25050iYY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT199505

main47044-25080iLY21#,YY211..T4199505

main47044-25090iLY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST199505-199905

sub47044-25091

main47044-25110iLY16#..TW2;LY16#..ST..15T199610

main47044-25120iLY102,112,YY101;LY152,162..T2..125199905

main47044-25130iLY122,132,202,212,YY121,131,201,211..ST199905

main47044-26031iLY162..WT;YY211..ATM199505

main47044-26060iLY151,161..T2..125;LY101,111,201,YY101,201..ST..(125,1T)199505-199905

main47044-26071iLY111..IV5199805-199806

main47044-26072iLY11#,16#..IV5199806

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main42184-35011×6iLY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST199505

main90101-10028×4iLY12#,13#,162,20#,21#,YY121,131,201,211..(T2,TW2)..WT199505

main90101-12175×4iLY16#..TW2;LY16#..ST..15T199610

main90114-10002×4iLY151..T3,TW2;LY161..(T3,TW1)..TS199610-199805

main90114-10016×2iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main90114-10019×4iLY21#,YY211..T4199505-199907

main90114-10063×4iLY212,YY211..T4199907

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331×4iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iLY16#..TW2;LY16#..ST..15T;YY211..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..WT199505

main90501-20604×4iLY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T)199505

main90501-20756×4iLY162..WT;YY211..ATM;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST199505

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12412×2iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main90506-23010×2iLY162..WT;YY211..ATM199505

main90506-26007×4iYY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT199505

main90506-26009×4iLY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST199505

main90506-26011iLY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)199610

main90506-26014iLY11#,162..IV5199805

main90507-29002×4iLY21#,YY211..T4199505

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-16343×2iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main90506-18031×2iLY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)199610

main90506-26159×2iLY162..WT;YY211..ATM199505

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031×2iLY11#..IV5199805

main90508-20261iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main90508-20262iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90504-14003×2iLY162..WT;YY211..ATM199505

main90504-18012×2iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

47430SSPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)

main90506-18004×2iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main90506-20033×4iLY16#..TW2;LY16#..ST..15T199610

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iLY162..WT;LY15#,16#..T2..125;LY10#,11#,12#,13#,20#,21#,YY101,121,131,201,211199505

main47447-30020×4iLY15#..T3,TW2;LY161..(T3,TW1)..TS;LY162..(T3,TW1)..TS..(CBU,IV3)199610

main47447-60010×4iLY16#..TW2;LY16#..ST..15T199610

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

47456RPLATE, REAR BRAKE SHOE GUIDE

main47456-20010×2iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

47458BRACKET, REAR BRAKE SHOE RETURN SPRING

main47457-35020iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47458-35020iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47405-30020iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47460-28011iLY162..WT;YY211..ATM199505

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47406-30020iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47470-28011iLY162..WT;YY211..ATM199505

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iLY211,YY211..T3,T4;LY121,131,YY121,131..ST;LY211,YY211..(T2,TW2)..ST;LY151,161..(T3,TW2)..(125,1T);LY161,201,YY201..(T2,T3,TW1)..ST..(15T,1T)199505-199805

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iLY11#,162..IV5199805

main47491-35040×2iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47491-36010×8iLY162..WT;YY211..ATM199505

sub47491-36020

47533ASEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-26020×8iLY151..T2;LY201,YY201..TS..ST199505-199905

main47533-40013×8iLY211,YY211..T4199505-199905

main47533-60011×8iLY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY121,131,211,YY121,131..T2,T3,TW2199505-199905

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-25020×4iYY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT199505

main47531-26070×4iLY10#,11#,YY101..T1,T3,TW1,TW2199610

main47531-26080×4iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..T2..125199505

main47531-60030×4iLY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST199505-199905

main47536-36020×4iLY211,YY211..T4199505-199905

47538ALINK, WHEEL CYLINDER CONNECTING

main47538-35010×4iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iYY211..(T2,T3,TW2)..MTM;LY122,132,202,212,YY121,131,201..T2,T3,TW2199905

main47547-26010×2iLY162..WT;LY15#,16#,YY211..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47547-27020×2iLY212,YY211..T4199905

main47547-60020×2iLY11#,162..IV5199805

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-25070iYY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT199505

main47550-25090iLY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST199505-199905

main47550-25161iLY122,132,202,212,YY121,131,201,211..ST199905

sub47550-25162

main47550-26070iLY162..WT;YY211..ATM199505

main47550-26090iLY10#,11#,YY101..T1,T3,TW1,TW2199610

main47550-26100iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..T2..125199505

main47550-26110iLY16#..ST..(15T,1T);LY15#,16#..(T3,TW2)..(125,1T)199610

main47550-36130iLY211,YY211..T4199505-199905

main47550-37090iLY212,YY211..T4199905

sub47550-37091

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010×2iLY10#,11#,YY101..T1,T3,TW1,TW2199610

main47509-22010×2iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..T2..125199505

main90029-60009×2iLY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)199610

main90501-07006×2iLY162..WT;YY211..ATM199505

sub90029-60014

main90501-09735×4iYY211..T2..WT..15T;LY122,132,202,212,YY121,131,201..(T2,TW2)..WT199905

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26070iLY162..WT;YY211..ATM199505

main47550-26090iLY10#,11#,YY101..T1,T3,TW1,TW2199610

main47550-26100iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..T2..125199505

main47550-26110iLY11#..IV5199805

main47570-25070iYY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT199505

main47570-25090iLY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST199505-199905

main47570-25111iLY122,132,202,212,YY121,131,201,211..ST199905

sub47570-25112

main47570-36130iLY211,YY211..T4199505-199905

main47570-37050iLY212,YY211..T4199905

sub47570-37051

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-26020iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47611-26040iLY162..WT;YY211..ATM199505

main47611-35040iLY162..ST..(15T,1T);LY152,162..(T3,TW2)..(125,1T)..(CBU,IV3)200009

main47611-60010iLY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)199610-200009

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010×2iYY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101199505

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-10059×2iLY162..WT;LY15#,16#,YY211..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-26020iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47612-26040iLY162..WT;YY211..ATM199505

main47612-35040iLY162..ST..(15T,1T);LY152,162..(T3,TW2)..(125,1T)..(CBU,IV3)200009

main47612-60010iLY11#,162..IV5199805-200009

47603FWASHER, TYPE C(FOR PARKING BRAKE BELL CRANK)

main90213-06013×2iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST199505

47607CABLE SUB-ASSY, REAR BEAKE AUTOMATIC ADJUST

main47607-30010×2iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-26010×2iLY162..WT;YY211..ATM199505

main47613-35020iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47614-35020iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

47616WIRE, PARKING BRAKE, RH

main47616-26030iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47616-35030iLY11#,16#..IV5199806

main47616-60010iLY151..T3,TW2;LY161..(T3,TW1)..TS199610-199806

47619WIRE, PARKING BRAKE, LH

main47616-26030iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47616-35030iLY11#,16#..IV5199806

main47616-60010iLY111..IV5199805-199806

47623APIN(FOR PARKING BRAKE BELL CRANK)

main90249-08068×2iLY11#,162..IV5199805

main90249-08075×2iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

47624ACRANK, PARKING BRAKE BELL, RH

main47624-26040iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47624-26050iLY15#..T3,TW2;LY161..(T3,TW1)..TS;LY162..(T3,TW1)..TS..(CBU,IV3)199610

main47624-60010iLY16#..TW2;LY16#..ST..15T199610

47625ACRANK, PARKING BRAKE BELL, LH

main47625-26040iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47625-26050iLY15#..T3,TW2;LY161..(T3,TW1)..TS;LY162..(T3,TW1)..TS..(CBU,IV3)199610

main47625-60010iLY16#..TW2;LY16#..ST..15T199610

47628BBRACKET, REAR BRAKE BELLCRANK, RH

main47628-26010iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47628-35020iLY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)199610

47629ABRACKET, REAR BRAKE BELLCRANK, LH

main47628-26010iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47628-35020iLY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)199610

47633CBOOT, REAR BRAKE BELLCRANK, RH

main47633-26010iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47633-35020iLY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)199610

47634ABOOT, REAR BRAKE BELLCRANK, LH

main47633-26010iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47633-35020iLY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)199610

47642AGUIDE, REAR BRAKE AUTOMATIC ADJUST CABLE

main47642-20010×2iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-20011iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47643-60010iLY11#,162..IV5199805

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-20011iLY15#,16#..T2..125;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main47644-60010iLY162..LPG;LY161..15T,1T;LY162..T2..ST..15T;LY162..T3..125..IV3;LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW1,TW2)..(CBU,IV5)199610

9010108043

main90101-08043

9011908838

main90119-08838

9014360002

main90143-60002

9411040600

main94110-40600

9453100800

main94531-00800

54 parts on this diagram · 9 diagrams in section
