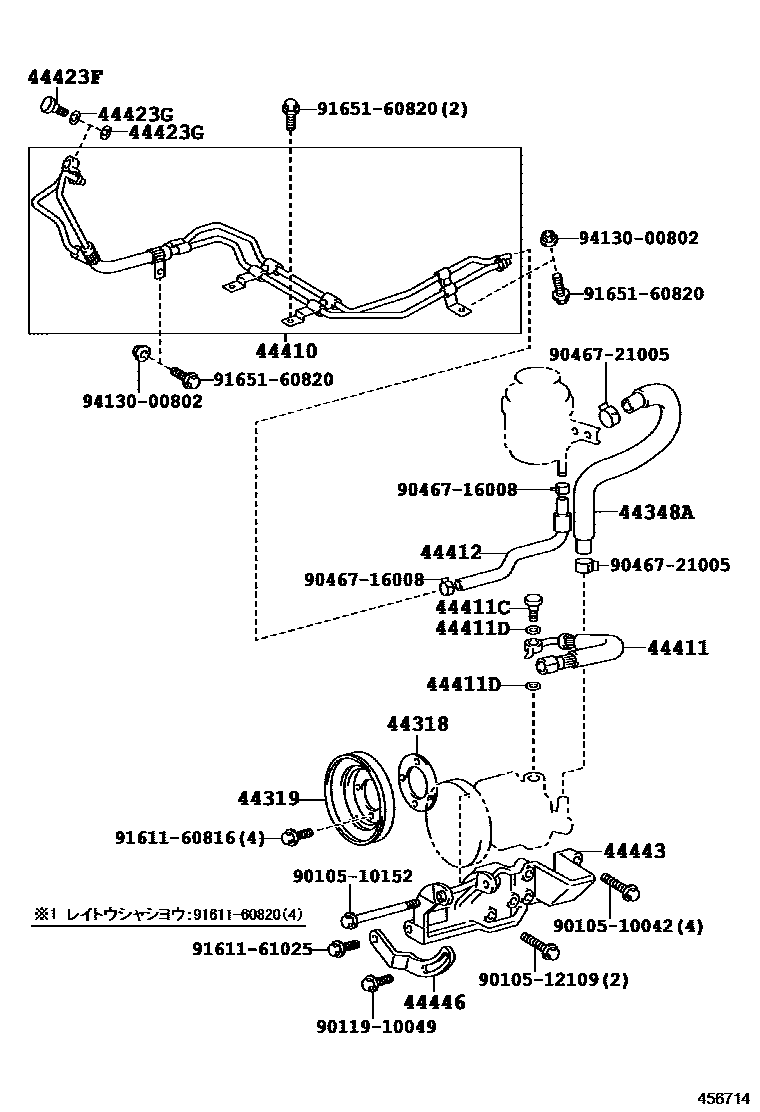

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

main44318-28012iLY161,YY101,121,131,201,211..CBR,LPG199505-199905

44319PULLEY, VANE PUMP DRIVE

main44319-26010iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

main44319-26060iLY152..T3..IV3;LY162..T3..15T..DSL..IV3;LY10#,202..TS..MTM..(125,15T)..IV3;LY12#,13#,201,21#..(T2,T4)..MTM..15T..IV3199505

main44319-28013iLY16#,YY101,121,131,201,211..CBR,LPG199505

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-25030iLY20#,21#199505

sub44348-25031

main44348-25040iLY121,131..T2..MTM..15T..IV3199610-199710

main44348-26060iLY10#,11#199610

sub44348-26061

main44348-26110iLY12#,13#,15#,16#..DSL199610

sub44348-26111

44410TUBE ASSY, PRESSURE FEED

main44410-25050iYY201,211199505

main44410-25060iLY20#,21#199505

main44410-25070iLY10#,11#199610

main44410-25080iYY101199610

main44410-25090iLY12#,13#,15#,16#..DSL199610

main44410-25100iLY16#,YY121,131..CBR,LPG199610

main44410-25110iLY121,131..T2..MTM..15T..IV3199610-199710

44411HOSE, PRESSURE FEED

main44411-25050iLY20#,21#199505

main44411-25060iLY121,131..T2..MTM..15T..IV3199610-199710

main44411-26021iLY10#,11#199610

main44411-26070iLY12#,13#,15#,16#..DSL199610

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16027iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16168×2iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44412HOSE, RETURN

main44412-25040iLY20#,21#199505

44423FBOLT, UNION

main90401-17002iLY201,211,YY201,211199505-199801

main96341-11703iLY20#,21#,YY201,211199801

sub90401-17005

44423GGASKET, UNION BOLT

main90430-17002×2iLY20#,21#,YY201,211199505

44443BRACKET, PUMP

main44443-25010iLY10#,11#,20#,21#199505

main44443-25020iLY121,131..T2..MTM..15T..IV3199610-199905

main44443-26020iLY12#,13#,15#,16#..DSL199610

main44443-26061iLY201,21#..(T2,T4)..MTM..15T..IV3;LY10#,202..TS..MTM..(125,15T)..IV3199505

main44443-28021iLY16#,YY101,121,131,201,211..CBR,LPG199505

44446STRUT, ADJUSTING

main44446-26010iLY12#,13#,15#,16#..DSL199610

main44446-30070iLY10#,11#,20#,21#199505

9010510042

main90105-10042

9010510152

main90105-10152

9010512109

main90105-12109

9011910049

main90119-10049

9046716008

main90467-16008

9046721005

main90467-21005

9161160816

main91611-60816

9161161025

main91611-61025

9165160820

main91651-60820

9413000802

main94130-00802

22 parts on this diagram · 6 diagrams in section
