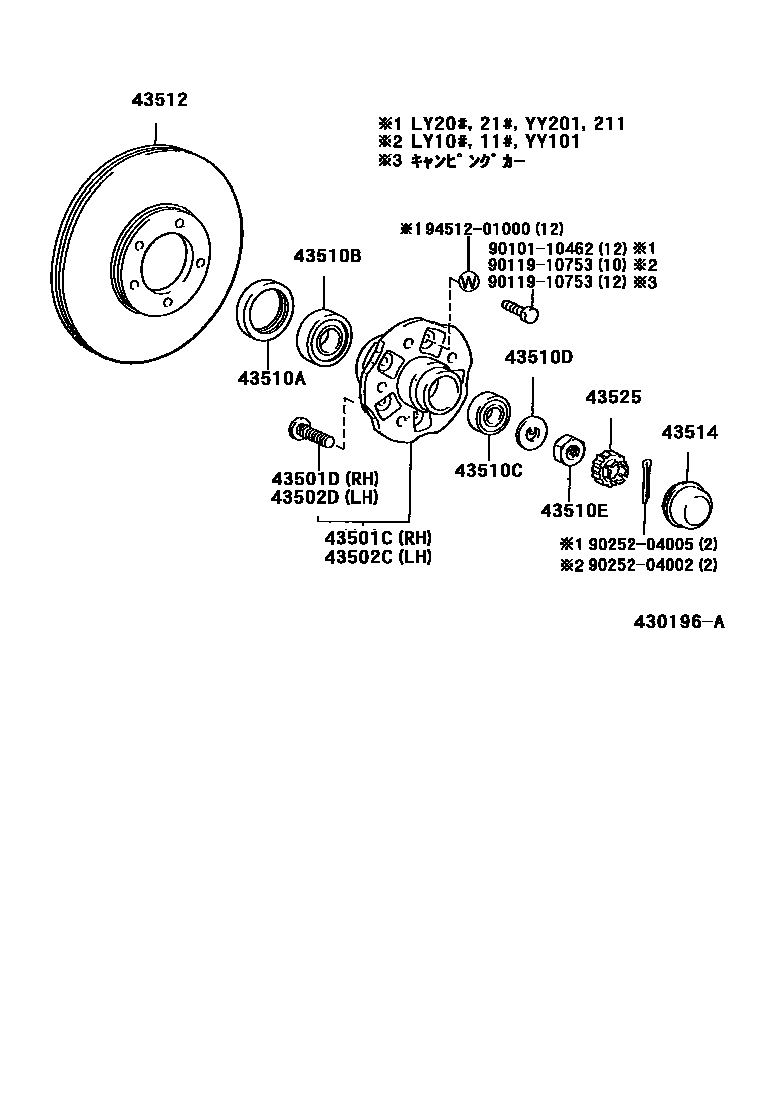

FRONT AXLE HUB

0001 1 0002 1 0003 1 0004 1

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43501-37020iLY21#,YY211..T4199505

main43502-25010iLY20#,212,YY201..T2;LY211,YY211..T2..ST;LY211,YY211..(T2,TW2)..WT199505

sub43502-29065

main43502-25020iLY20#,21#,YY201,211..(T1,T3,TW2)..ST199505

sub43502-29075

main43502-26050iLY10#,11#,YY101199610

main43502-26070iLY11#..IV5199805

main43511-39015iLY12#,13#,15#,16#,YY121,131199610

sub43502-29095

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02047×6iLY20#,212,YY201..T2;LY211,YY211..T2..ST;LY211,YY211..(T2,TW2)..WT199505

main90942-02049×6iLY12#,13#,15#,16#,YY121,131199610

main90942-02058×6iLY20#,21#,YY201,211..(T1,T3,TW2)..ST199505

sub90942-02112

main90942-02061×6iLY21#,YY211..T4199505

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-25010iLY20#,212,YY201..T2;LY211,YY211..T2..ST;LY211,YY211..(T2,TW2)..WT199505

sub43502-29065

main43502-25020iLY20#,21#,YY201,211..(T1,T3,TW2)..ST199505

sub43502-29075

main43502-26050iLY10#,11#,YY101199610

main43502-26070iLY11#..IV5199805

main43502-37020iLY21#,YY211..T4199505

main43511-39015iLY12#,13#,15#,16#,YY121,131199610

sub43502-29095

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02047×6iLY11#..IV5199805

main90942-02049×6iLY12#,13#,15#,16#,YY121,131199610

main90942-02058×6iLY20#,21#,YY201,211..(T1,T3,TW2)..ST199505

sub90942-02112

main90942-02062×6iLY21#,YY211..T4199505

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50003×2iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main90311-50005×2iLY10#,11#,YY101199610

main90311-66001×2iLY12#,13#,15#,16#,YY121,131199610

sub90311-66003

main90311-68001×2iLY21#,YY211..T4199505

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90080-36064×2iLY12#,13#,15#,16#,YY121,131199610

main90366-35004×2iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main90368-34001×2iLY10#,11#,YY101199610

main90368-42045×2iLY21#,YY211..T4199505

main90368-49084×2iLY12#,13#,15#,16#,YY121,131199610

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90080-36067×2iLY12#,13#,15#,16#,YY121,131199610

main90368-21001×2iLY10#,11#,YY101199610

main90368-22007×2iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

sub90366-22002

main90368-28001×2iLY21#,YY211..T4199505

main90368-45087×2iLY12#,13#,15#,16#,YY121,131199610

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007×2iLY10#,11#,YY101199610

main90214-23004×2iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main90214-27001×2iLY21#,YY211..T4199505

main90214-42030×2iLY12#,13#,15#,16#,YY121,131199610

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2iLY10#,11#,YY101199610

main90170-22003×2iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main90170-26001×2iLY21#,YY211..T4199505

43512DISC, FRONT

main43512-25020×2iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main43512-25050×2iLY21#,YY211..T4199505

main43512-25060×2iLY122,132,152,162,YY121,131199905

sub43512-25061

main43512-26070×2iLY10#,11#,YY101199610

sub43512-35180

main43512-26081×2iLY121,131,151,161,YY121,131199610-199905

main43512-26140×2iLY11#..IV5199805

43514CAP, FRONT HUB GREASE

main43514-25010×2iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main43514-35010×2iLY10#,11#,YY101199610

main43514-35020×2iLY12#,13#,YY121,131199610

main43514-36030×2iLY21#,YY211..T4199505

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2iLY10#,11#,YY101199610

main43525-25010×2iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main43525-36010×2iLY21#,YY211..T4199505

9010110462

main90101-10462

9011910753

main90119-10753

9025204002

main90252-04002

9025204005

main90252-04005

9451201000

main94512-01000

17 parts on this diagram · 4 diagrams in section
