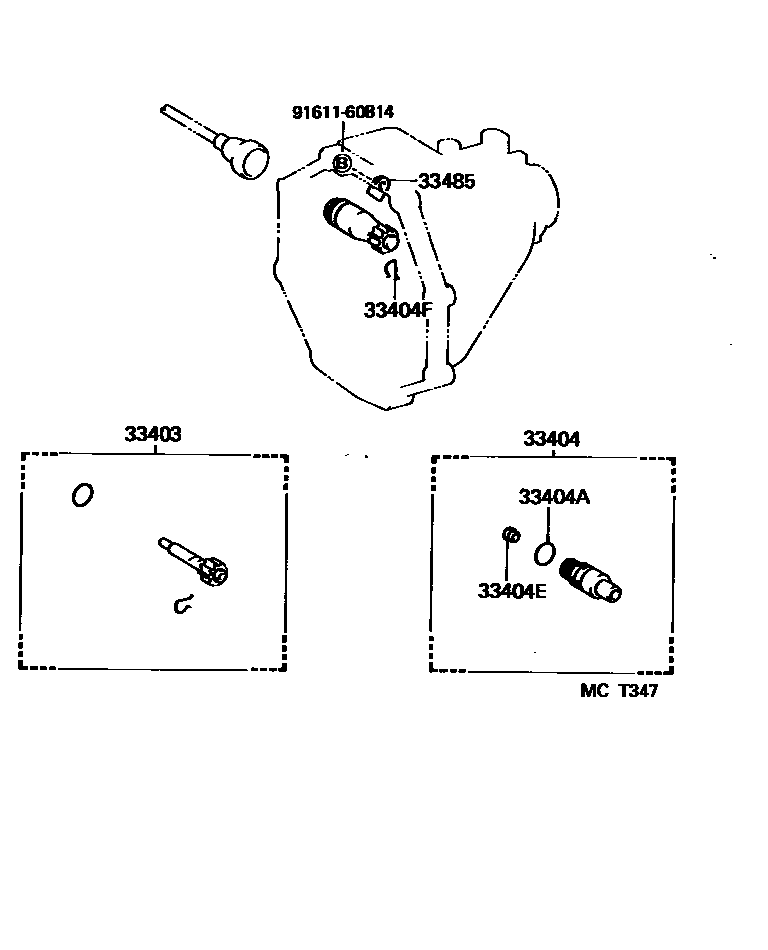

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1G54,R451,R452,R453 0002 1R351F

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29135iLY20#,21#..(T3,TW2)..MTM..ST..(125,15T)199505

main33403-29175iYY121,131,201..WT;YY211..T2..WT..15T;YY201,211..(T3,TW2)..(125,15T)199505

main33403-29185iLY21#,YY211..T4..MTM;YY121,131..(T3,TW2)..ST199505

main33403-29195iYY131,211..T2..ST199505

main33403-29255iLY211..T2..ST;LY12#,13#..MTM;LY212..T2..MTM;LY20#,211..(T2,TW2)..MTM..WT199505

main33403-29305iLY15#,16#..T2..MTM..125199610-199708

main33482-29045iYY201..T2..ST199505-199610

main33482-29186iLY161;LY151..T3,TW2199610-199708

main33482-29275iLY16#..LPG199805

main33482-39025iLY201..T2..ST199505-199610

main33482-39035iYY101..T1,T3,TW2199610

main33482-39065iLY10#,11#..(T1,T3,TW1,TW2)..MTM199610

main33482-39085iYY101..T2;YY201..T1,TW2199505

main33482-39135iLY201..T1,TW2;LY10#,11#..T2..MTM199505

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..MTM199505

main33404-35010iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..MTM..ST199505

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..MTM..ST199505

main96711-24030iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..MTM199505

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLY162..MTM..ST;LY10#,11#,12#,13#,15#,161,20#,21#,YY101,121,131,201,211..MTM199505

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLY162..MTM..ST;LY10#,11#,12#,13#,15#,161,20#,21#,YY101,121,131,201,211..MTM199505

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLY162..MTM..ST;LY10#,11#,12#,13#,15#,161,20#,21#,YY101,121,131,201,211..MTM199505

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
