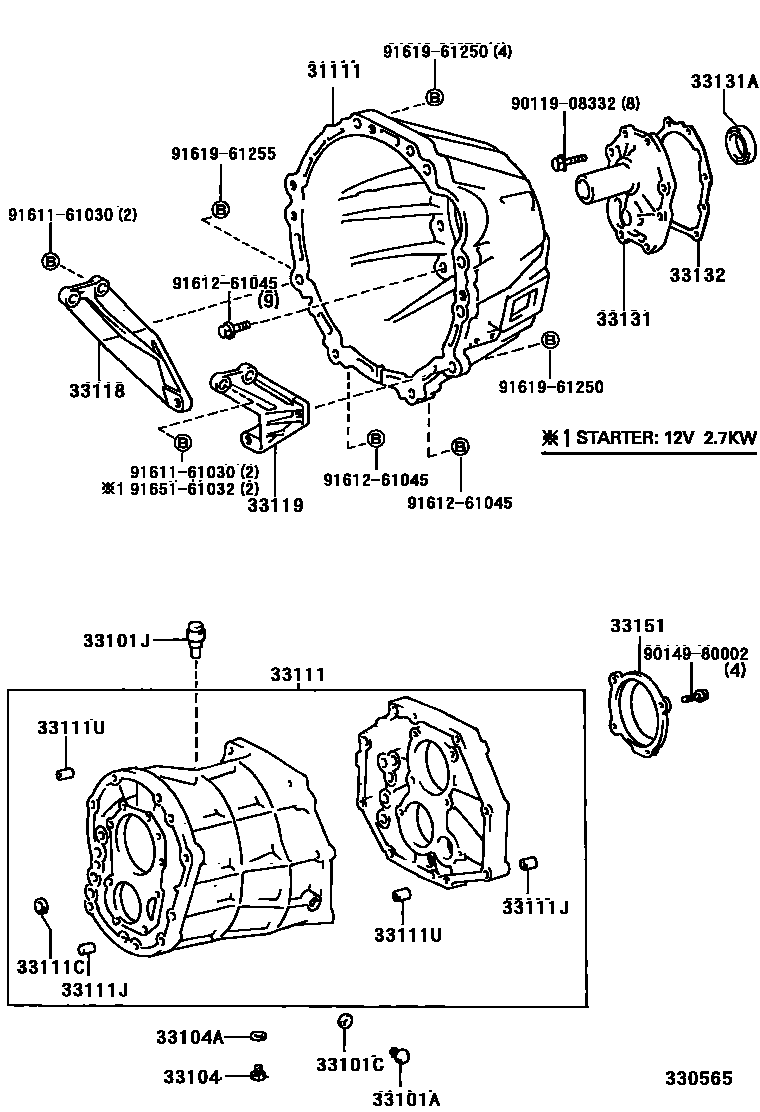

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G54 0003 1G54 0005 1R351F 0006 1R351F 0007 1R451,R452,R453 0008 1R452 0009 1R451,R452,R453

31111HOUSING, CLUTCH

main31111-22114iLY10#,11#,201..MTM..ST..(125,1T)199505-200107

main31111-25030iLY201..WT;LY201..ST..15T;LY12#,13#,202,21#..MTM199505-200107

main31111-25040iYY201..WT;YY201..ST..15T;LY16#,YY121,131,211..MTM..(CBR,LPG)199505-200107

main31111-26020iLY15#,16#..MTM..DSL199610-200107

main31111-30190iYY101,201..TS..ST199505-200107

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505-200107

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505-200107

33101JPLUG, BREATHER

main90930-03085iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505-200107

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211..MTM199505-200107

main90341-18032iLY10#,11#,YY101..MTM199806-200107

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505-200107

33111CASE, MANUAL TRANSMISSION

main33101-25020iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..MTM199505-200107

sub33101-25021

main33101-26040iLY15#,16#..MTM199610-200107

sub33101-26041

main33101-28020iLY101,111,201,YY101,201..MTM..ST..(125,1T)199505-199806

sub33101-35060

sub90341-18032

main33101-35060iLY10#,11#,YY101..MTM199806-200107

sub33101-26060

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM199505-200107

main96411-41800iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM199505-200107

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM199505-200107

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505-200107

main90253-15001iLY10#,11#,201,YY101,201..MTM..ST..(125,1T)199505-200107

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLY10#,11#,12#,13#,15#,16#..MTM..DSL199610

main33118-25040iLY201,211..MTM199505-199805

sub33118-25050

main33118-25050iLY20#,21#..MTM199805

main33118-36031iLY16#,YY101,121,131,201,211..MTM..(CBR,LPG)199505

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLY10#,11#..MTM199610

main33119-25040iLY201..TS..ST199505-199610

main33119-25050iLY201..WT;LY211..MTM;LY201..ST..15T199505-199805

sub33119-25051

main33119-25051iLY20#,21#..MTM199805

main33119-25060iLY12#,13#,15#,16#..MTM..DSL199805

main33119-26010iLY121,131,151,161..MTM199610-199805

sub33119-25060

main33119-36030iLY16#,YY101,121,131,201,211..MTM..(CBR,LPG)199505

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLY10#,11#,201,YY101,201..MTM..ST..(125,1T)199505-200107

main33131-35031iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM199505-200107

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iLY10#,11#,201,YY101,201..MTM..ST..(125,1T)199505-200107

main90311-32012iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM199505-200107

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLY10#,11#,201,YY101,201..MTM..ST..(125,1T)199505

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM199505-200107

main33151-35030iLY10#,11#,201,YY101,201..MTM..ST..(125,1T)199505-200107

9011908332

main90119-08332

9014980002

main90149-80002

9161161030

main91611-61030

9161261045

main91612-61045

9161961250

main91619-61250

9161961255

main91619-61255

9165161032

main91651-61032

23 parts on this diagram · 7 diagrams in section
