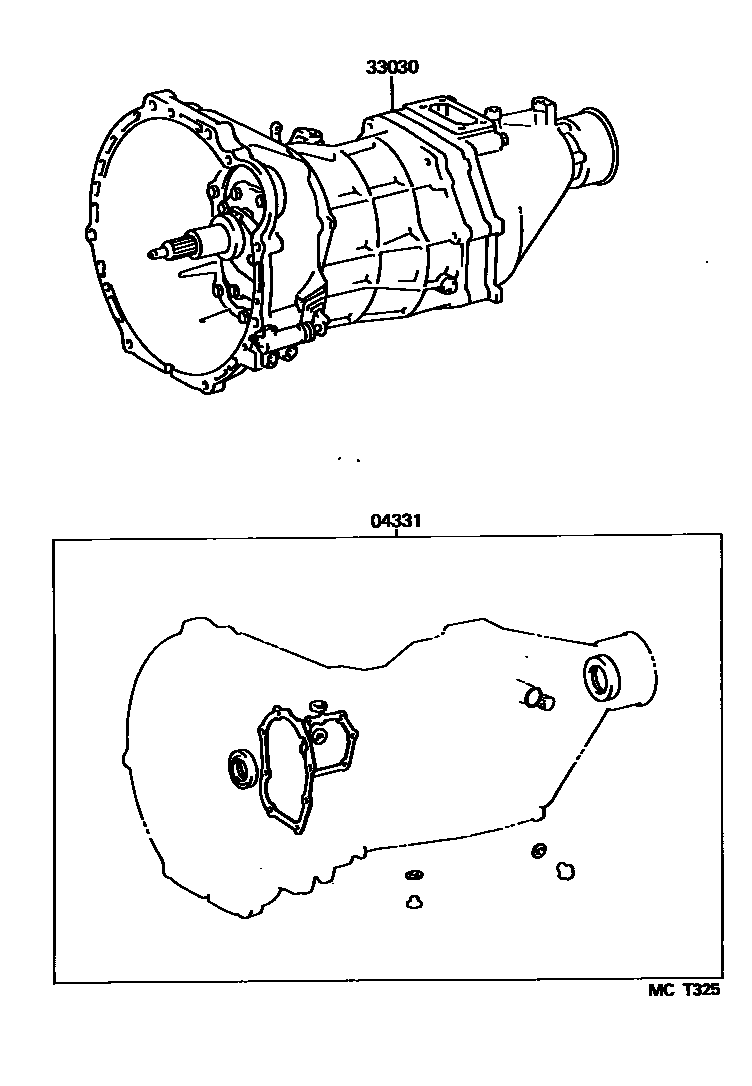

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1G54 0002 1R451,R452,R453 0003 1R351F

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-25030iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM199505-200107

main04331-28010iLY10#,11#,201,YY101,201..MTM..ST..(125,1T)199505-200107

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-25090iYY101..T1,T3,TW2199610-200107

main33030-25110iYY101..T2;YY201..TS..ST199505-200107

main33030-25120iLY201..TS..ST;LY10#,11#..T2..MTM199505-200107

main33030-25130iLY10#,11#..(T1,T3,TW1,TW2)..MTM199610-200107

main33030-25160iLY15#,16#..MTM..DSL199610-200107

main33030-25180iLY16#..LPG199805-200107

main33120-25460iLY21#..T4..MTM199505-200107

main33120-25490iYY211..T2..ST199505-200107

main33120-25500iYY201,211..T2..MTM..WT;YY201,211..(T3,T4,TW2)..(125,15T)199505-200107

main33120-25520iLY202,212..T3,TW2200102-200107

main33120-25620iLY20#,21#..(T3,TW2)..MTM..ST..(125,15T)199505-200102

sub33120-25520

main33120-25630iLY211..T2..ST;LY212..T2..MTM;LY20#,211..(T2,TW2)..MTM..WT199505-200107

main33120-25640iLY12#,13#..MTM199610-200107

main33120-25660iYY121;YY131..WT;YY131..(T3,TW2)..ST199610-200107

main33120-25670iYY131..T2..ST199610-200107

2 parts on this diagram · 3 diagrams in section
