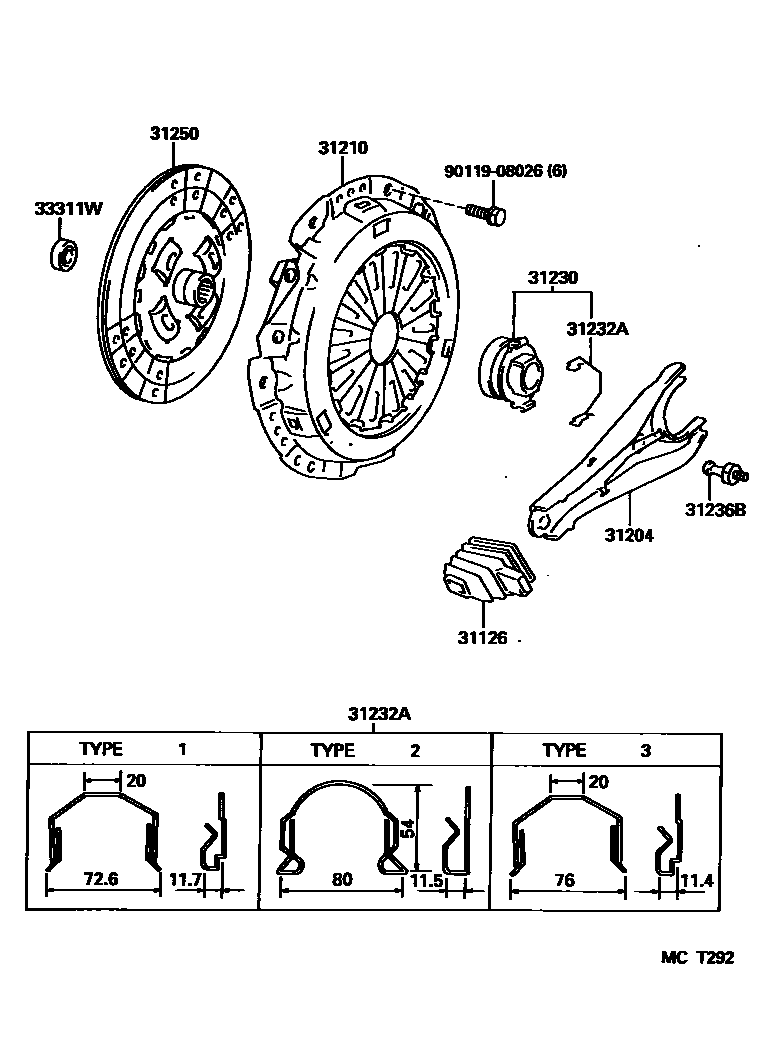

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYY101,201..TS..ST199505-200107

main31126-20070iLY10#,11#,201..MTM..ST..(125,1T)199505-200107

main31126-34010iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM199505-200107

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iYY101,201..TS..ST199505-200107

main31204-35031iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM199505-200107

main31204-35050iLY10#,11#,201..MTM..ST..(125,1T)199505-200107

31210COVER ASSY, CLUTCH

main31210-26100iLY16#,YY101..CBR,LPG199610

sub31210-27060

main31210-35090iYY121,131,201,211..MTM199505

sub31210-22100

main31210-35121iLY10#,11#,12#,13#,15#,16#,20#,21#..MTM..DSL199505-200102

sub31210-35122

main31210-35122iLY102,112,122,132,152,162,202,212..MTM..DSL200102

sub31210-26160

31230BEARING ASSY, CLUTCH RELEASE

main31230-35060iLY10#,11#,12#,13#,15#,16#,20#,21#..MTM..DSL199505-200107

sub31230-35061

main31230-35070iYY201..WT;YY201..ST..15T;LY16#,YY121,131,211..MTM..(CBR,LPG)199505-200107

sub31230-35071

main31230-35090iYY101,201..TS..ST199505-200107

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLY101,111..T2..MTM;LY102,112,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505-200107

main31232-35030iYY201..WT;YY201..ST..15T;LY101,111..T2..MTM;LY102,112,12#,13#,15#,16#,20#,21#,YY121,131,211..MTM199505-200107

main31232-35040iYY101,201..TS..ST199505-200107

31236BSUPPORT, RELEASE FORK

main31236-30060iLY10#,11#,201,YY101,201..MTM..ST..(125,1T)199505-200107

main31236-35030iLY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM199505-200107

31250DISC ASSY, CLUTCH

main31250-20240iYY121,131,201,211..MTM199604-199702

sub31250-20241

main31250-20241iYY121,131,201,211..MTM199702

sub31250-20242

main31250-20260iYY101199610-199703

sub31250-20261

main31250-20261iLY16#,YY101..CBR,LPG199703

sub31250-20262

main31250-25122iYY201,211..MTM199505-199604

sub31250-20240

main31250-25141iLY201,211..(T2,T4)..MTM..15T..IV3199505-199703

sub31250-25142

main31250-25141iLY101,111,121,131,151,161..MTM199610-199703

sub31250-25142

main31250-25142iLY201,211..(T2,T4)..MTM..IV3199703-199905

sub31250-25144

main31250-25142iLY10#,11#,12#,13#,15#,16#..MTM..DSL199703-200012

sub31250-25144

main31250-25143iLY102,112,122,132,152,162..MTM..DSL200012

sub31250-25144

main31250-26180iLY201,211..MTM199505-199612

sub31250-26181

main31250-26181iLY20#,21#..MTM199612-200012

sub31250-26182

main31250-26182iLY202,212..MTM200012

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

sub90363-12024

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
