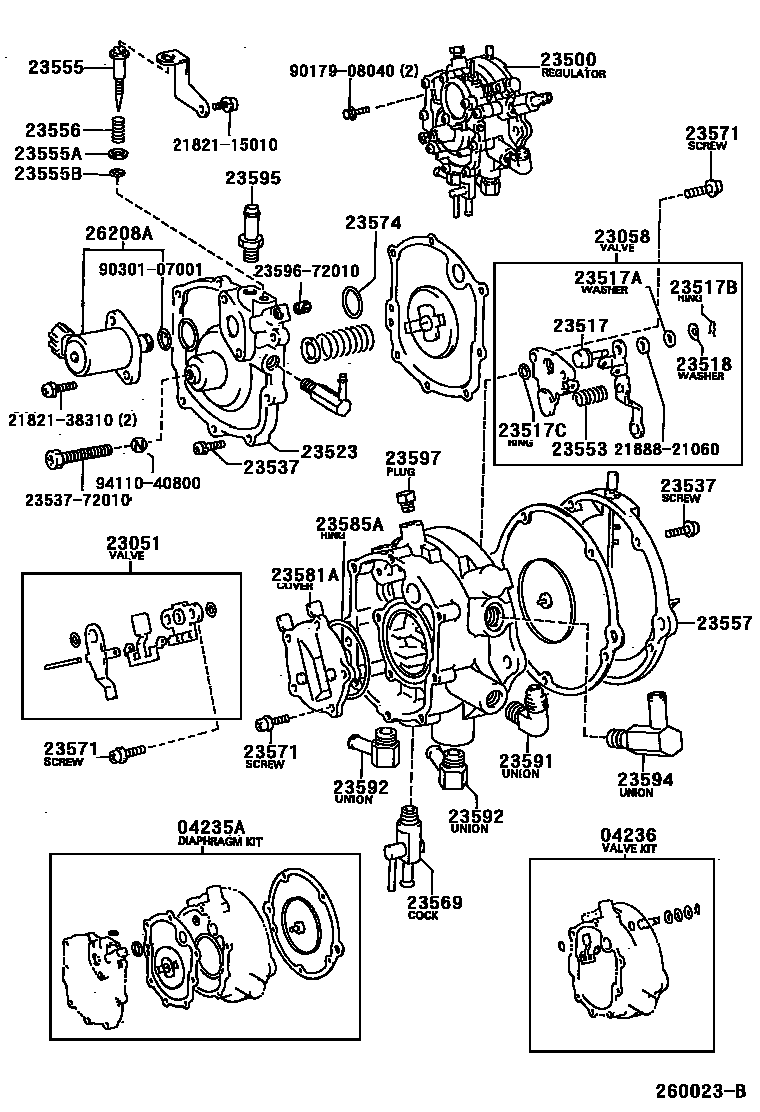

LPG OR CNG REGULATOR

0001 1 0002 1

04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE

main04235-72010i3YP..YY211199505

04236VALVE KIT, LPG REGULATOR

main04236-72010i3YP..YY211199505

23051VALVE SUB-ASSY, 1ST

main23051-72010i3YP..YY211199505

23058VALVE SUB-ASSY, 2ND

main23058-44041i3YP..YY211199505

23500REGULATOR ASSY, LPG(CNG)

main23500-73150i3YP..YY211199505-199610

main23500-73151i3YP..YY211199610

23517VALVE, ELASTIC FACE

main23517-40013i3YP..YY211199505

23517AWASHER(FOR ELASTIC FACE VALVE SET)

main21535-10010i3YP..LY16#199805

23517BRING, SNAP(FOR ELASTIC FACE VALVE SET)

main21792-69210i3YP..YY211199505-199610

main90079-63001i3YP..YY211199610

23517CGASKET(FOR ELASTIC FACE VALVE)

main23532-44020i3YP..YY211199505

23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-40010i3YP..YY211199505

23523COVER, 1ST REGULATOR

main23523-70040i3YP..YY211199610

main23523-73130i3YP..YY211199505-199610

23537SCREW(FOR 2ND REGULATOR COVER SET)

main21821-31140×13i3YP..YY211199505

23553SPRING, 2ND REGULATOR

main23553-44040i3YP..YY211199505

23555SCREW, IDLE ADJUST

main23555-73130i3YP..LY16#199805

sub23555-48050

23555AWASHER, IDLE ADJUST SCREW

main21885-26040i3YP..YY211199505

23555BRING, O(FOR IDLE ADJUST SCREW)

main23532-40010i3YP..YY211199505

23556SPRING, IDLE ADJUST SCREW

main21723-21030i3YP..YY211199505

23557COVER, 2ND REGULATOR

main23557-72010i3YP..LY16#199805

23569COCK, DRAIN

main23569-40010i3YP..YY211199505

23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)

main23571-72010×9i3YP..YY211199505

23574RING, O, NO.1(FOR BULB)

main23574-72010i3YP..YY211199505

23581ACOVER, UPPER PREHEATER

main23581-72010i3YP..YY211199505

23585ARING, O(FOR PREHEATER)

main23585-72010i3YP..YY211199505

23591UNION, NO.1, FUEL

main90407-14023i3YP..YY211199505

23592UNION, NO.2, FUEL HOSE

main23592-44050×2i3YP..YY211199505

sub23592-72010

23594UNION, NO.4, WATER HOSE

main23594-41030i3YP..YY211199505

23595UNION, NO.5

main23119-45020i3YP..YY211199505

23597PLUG, LPG REGULATOR BODY

main90345-51006i3YP..YY211199505

main90345-51025i3YP..LY16#199805

26208AVALVE SUB-ASSY, SOLENOID(FOR LPG REGULATOR)

main26206-73130i3YP..LY161199805-199905

main26208-73131i3YP..LY162199905

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310

2188821060WASHER(FOR POSITIONER VALVE SET)

main21888-21060

2353772010SCREW(FOR 2ND REGULATOR COVER SET)

main23537-72010

2359672010PLUG(FOR LPG REGULATOR BODY)

main23596-72010

9017908040

main90179-08040

9030107001

main90301-07001

9411040800

main94110-40800

37 parts on this diagram · 2 diagrams in section
