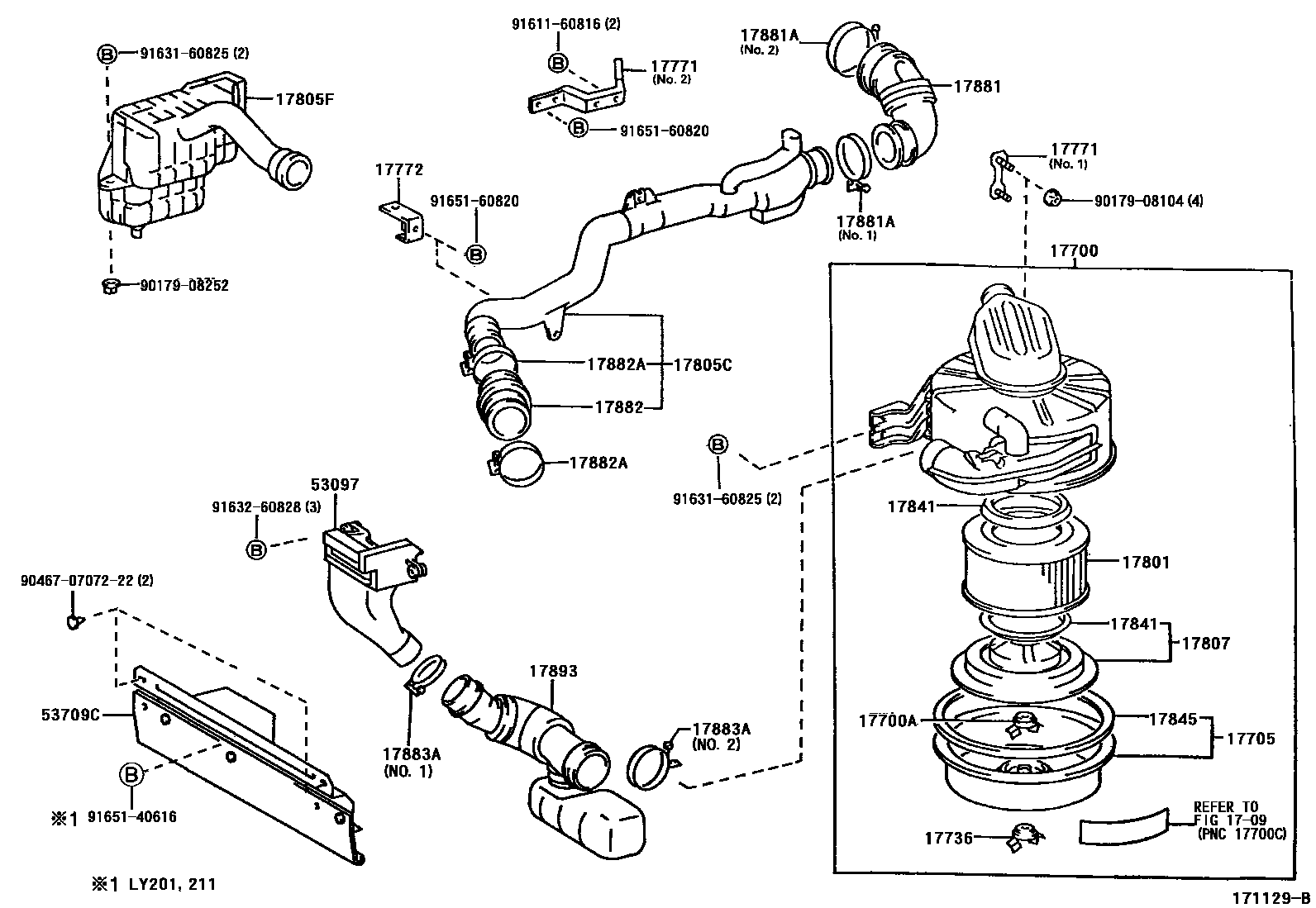

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1709

17700CLEANER ASSY, AIR

main17700-54750i3L,5L..LY20#,21#199505-200005

main17700-54751i5L..LY202,212200005

main17700-54790i3L,5L..LY10#,11#,12#,13#,15#,16#199610-200005

main17700-54791i5L..LY102,112,122,132,152,162200005

main17700-73290i3Y..YY101,121,131199610-200005

main17700-73291i3Y..YY101,121,131200005

main17700-73300i3Y..YY201,211199505-200005

main17700-73301i3Y..YY201,211200005

main17700-73360i3YP..YY211199505

main17700-73370i3YP..LY16#199805

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i3Y#..YY101,121,131,201,211199505

17705CAP SUB-ASSY, AIR CLEANER

main17705-54260i3Y#..YY101,121,131,201,211199505

17736NUT, AIR CLEANER CASE

main90175-06003i3Y#..YY101,121,131,201,211199505

17771BRACKET, AIR CLEANER INLET DUCT

main17771-54010i3L,5L..LY20#,21#199505

main17771-54030i3L,5L,3YP..LY12#,13#,15#,16#199610

main17771-54090i3L,5L..LY10#,11#199610

main17771-71010i3L,5L..LY20#,21#199505

17772BRACKET, INTAKE AIR CONNECTOR, NO.2

main17772-54031i3L,5L..LY20#,21#199505

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-54070i3Y..YY101,121,131,201,211199505

main17801-56020i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main17801-73020i3YP..YY211199505

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-73040i3YP..YY211199505-199609

main17805-73041i3YP..YY211199609

main17805-73191i3Y..YY201,211199505-199610

main17805-73250i3Y..YY101,121,131,201,211199610

17805CPIPE SUB-ASSY, AIR CLEANER, NO.1

main17805-54062i3Y..YY101199610

main17805-54102i3L,5L,3YP..LY12#,13#,15#,16#199610

main17805-54142i3L,5L..LY10#,11#199610

main17805-54153i3L,5L..LY20#,21#199505

main17805-73220i3YP..YY211199505

main17805-73240i3Y..YY121,131199610

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-54260i3L,5L..LY10#,11#,12#,13#,15#,16#199610

main17805-54270i3L,5L..LY20#,21#199505

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-58010i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main17807-58020i3YP..LY16#199805

main17807-73010i3Y..YY101,121,131,201,211199505

17841GASKET, FILTER ELEMENT

main17841-44030×2i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main17841-54010×2i3Y..YY101,121,131,201,211199505

main17841-68010i3YP..YY211199505

main17841-73010i3YP..YY211199505

17845GASKET, AIR CLEANER CAP

main17845-56020i3Y#..YY101,121,131,201,211199505

17881HOSE, AIR CLEANER, NO.1

main17881-54530i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main17881-71080i3Y..YY101,201,211199505

main17881-73070i3YP..YY211199505

main17881-73170i3Y..YY121,131199610

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

CONNECTOR SIDE

main96111-10750i3Y..YY101,121,131,201,211199505

CARBURETOR SIDE

main96111-10830i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

17882HOSE, AIR CLEANER, NO.2

main17882-54220i3Y#..YY101,121,131,201,211199505

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10750×2i3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#199505

17883HOSE, AIR CLEANER, NO.3

main17883-73020i3Y..YY101,121,131199610

main17883-73030i3Y#..YY201,211199505

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main96111-10690i3Y#..YY101,121,131,201,211199505

INLET SIDE

main96111-10750i3Y#..YY101,121,131,201,211199505

17893RESONATOR, INTAKE AIR

main17805-54280i3L,5L..LY20#,21#199505

main17805-54300i3L,5L..LY10#,11#,12#,13#,15#,16#199610

53097INLET SUB-ASSY

main53097-25080iYY201,211199505-199711

main53097-25090iLY10#,11#,12#,13#,15#,16#..DSL199610

main53097-25110iYY211..LPG199711-199804

main53097-25120iYY211..LPG199804

main53097-25140iLY16#..LPG199805

53709CCOVER SUB-ASSY, AIR CLEANER INLET

main53709-25030iYY101,121,131199610

main53709-25060iYY211..LPG199804

main53709-37010iYY201,211..CBR199804

main53709-37030iYY201,211..CBR199804

main53760-25010iYY211..LPG199604-199711

9017908104

main90179-08104

9017908252

main90179-08252

904670707222

main90467-0707222

9161160816

main91611-60816

9163160825

main91631-60825

9163260828

main91632-60828

9165140616

main91651-40616

9165160820

main91651-60820

31 parts on this diagram · 7 diagrams in section
