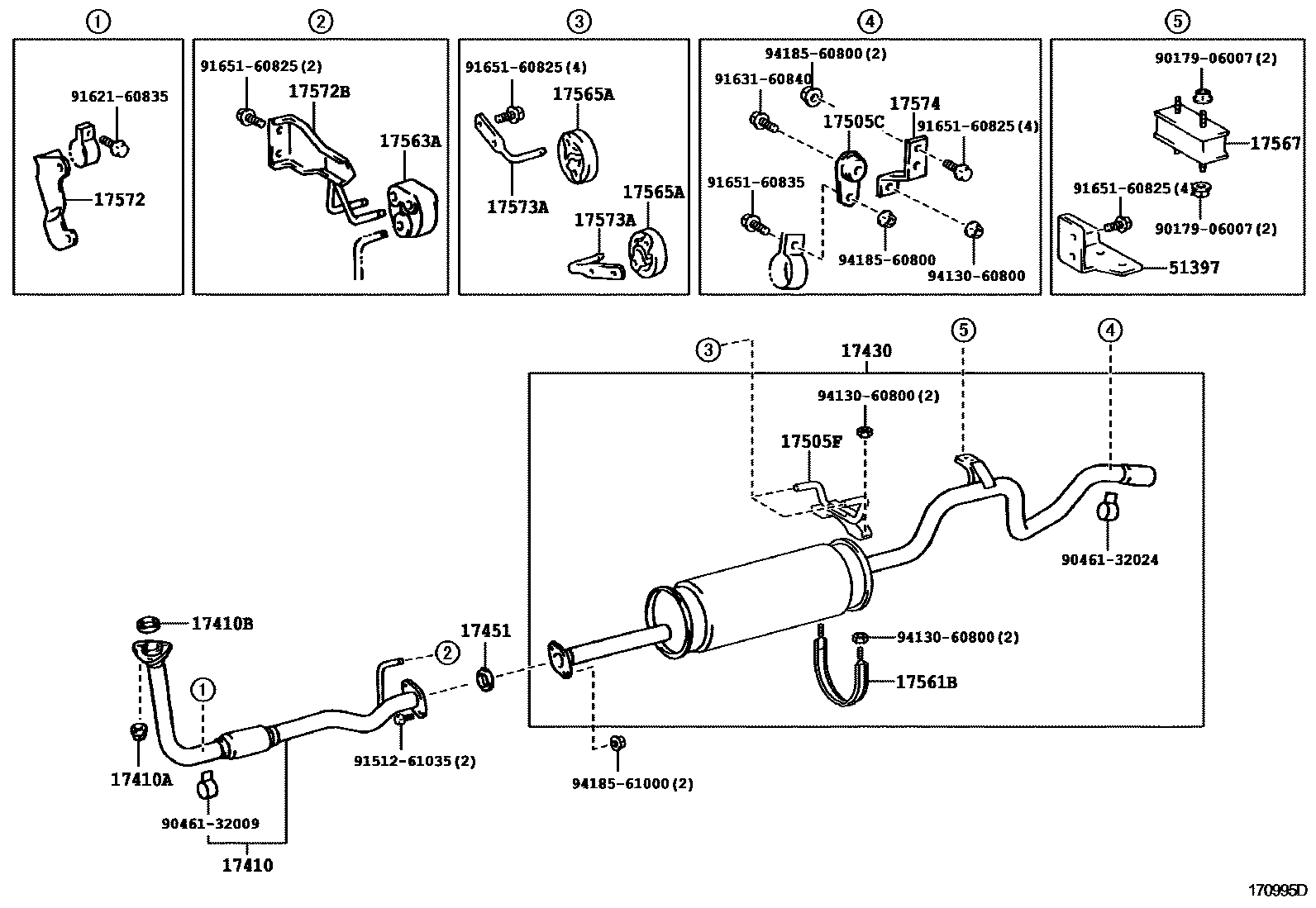

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-5B140i3L..LY101,111199610-199905

main17410-5B210i3L..LY201,211199505-199905

main17410-5B231i3L,5L..LY12#,13#,15#,16#199610-200107

main17410-5B380i5L..LY202,212199905-200107

main17410-5B390i5L..LY102,112199905-200107

main17410-73580i3Y#..YY211..ATM199505-200107

main17410-73590i3Y..YY101199610-200107

main17410-73600i3Y#..YY201,211..MTM199505-200107

main17410-73650i3Y..YY121,131199610-200107

main17410-73660i3YP..LY16#199805-200107

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505-200107

17410BGASKET, EXHAUST PIPE

main90917-06064i3Y#..LY16#,YY101,121,131,201,211199505-200107

main90917-06066i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505-200107

17430PIPE ASSY, EXHAUST, TAIL

main17430-5B641i3L,5L..LY11#199610-200103

sub17430-5B642

main17430-5B642i5L..LY112200103

main17430-5B660i3L,5L..LY10#199610-200103

sub17430-5B661

main17430-5B661i5L..LY102200103

main17430-5B671i3L,5L..LY12#,15#..ST199610-200103

sub17430-5B672

main17430-5B672i5L..LY122,152..ST200103

main17430-5B681i3L,5L..LY13#,16#..ST199610-200103

sub17430-5B682

main17430-5B682i5L..LY132,162..ST200103

main17430-5B690i3Y..YY201;3Y#..YY211..ATM199505-200103

sub17430-5B691

main17430-5B691i3Y..YY201;3Y#..YY211..WT..125200103

main17430-5B700i3Y#..YY211..MTM199505-200103

sub17430-5B701

main17430-5B701i3Y#..YY211..MTM200103

main17430-5B720i3L..LY201199505-199610

sub17430-5B721

main17430-5B721i3L..LY201199610-199805

sub17430-5B722

main17430-5B730i3L..LY211199505-199610

sub17430-5B740

main17430-5B740i3L..LY211199610-199805

sub17430-5B741

main17430-5D040i3L,5L..LY12#..WT199610-200103

sub17430-5D041

main17430-5D041i5L..LY122..WT200103

main17430-5D050i3L..LY131..WT199610-199905

sub17430-5D051

main17430-5D060i3L,5L..LY21#199805-200103

sub17430-5D061

main17430-5D061i5L..LY212200103

main17430-5D080i3L,5L..LY20#199805-200103

sub17430-5D081

main17430-5D081i5L..LY202200103

main17430-5D200i5L..LY132,162..WT199905-200103

sub17430-5D201

main17430-5D201i5L..LY132,162..WT200103

main17430-73451i3Y..YY101199610-200103

sub17430-73452

main17430-73452i3Y..YY101200103

main17430-73510i3Y#..LY16#,YY121..ST199610-200103

sub17430-73511

main17430-73511i3Y#..LY162,YY121..ST200103

main17430-73520i3Y..YY121..WT199610-200103

sub17430-73521

main17430-73521i3Y..YY121..WT200103

main17430-73530i3Y..YY131..ST199610-200103

sub17430-73531

main17430-73531i3Y..YY131..ST200103

main17430-73540i3Y..YY131..WT199610-200103

sub17430-73541

main17430-73541i3Y..YY131..WT200103

17451GASKET, EXHAUST PIPE

main17451-64030i3YP..LY16#199805-200107

sub17451-64031

main90917-06044i3Y#..YY211..ATM199505-200107

main90917-06045i3Y#..YY101,121,131,201,211199505-200107

main90917-06045i3YP..LY16#199805-200107

17505CCUSHION, EXHAUST PIPE(FOR HEAT INSULATOR)

main90917-08009i3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

17505FSUPPORT SUB-ASSY, EXHAUST PIPE

main17505-54130i3L..LY101,111,121,131,151,161199610-199905

main17505-54150i3L..LY201,211199505-199905

17561BSUPPORT, EXHAUST PIPE, NO.1

main17561-54190i5L..LY102,112,122,132,152,162199610-199905

main17561-54200i5L..LY202,212199505-199905

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-54030i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main17565-63030i3Y#..LY16#,YY101,121,131,201,211199505

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-63030i3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-61010i3L,3Y#..LY101,111,121,131,151,161,YY101,121,131,201,211199505-199805

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-54270i3L,5L..LY10#,11#,12#,13#,15#,16#199610

main17571-54460i3L,5L..LY20#,21#199505

main17571-71040i3Y#..YY101,121,131,201,211199505

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17562-72111i3Y#..YY101,121,131,201,211199505

PIPE SIDE

main17572-54200i3L,5L..LY10#,11#199610

main17572-54220i3L,5L..LY20#,21#199505

main17572-54230i3L,5L..LY12#,13#,15#,16#199610

main17572-72030i3Y..YY101199610

BODY SIDE

main17572-72040i3Y#..YY201,211199505

BODY SIDE

main17572-73130i3Y..YY121,131199610

BODY SIDE

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17575-54040i3L,5L,3Y#..LY20#,21#,YY201,211199505

main17575-71050i3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,YY101,121,131199610

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-54060i3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

51397BRACKET, EXHAUST PIPE CLAMP, NO.3

main51397-25010iYY201..ST;YY211..T3,T4;YY211..(T2,TW2)..ST199505-199805

main51397-25020iYY201,211..(T2,TW2)..WT199505-199805

9017906007

main90179-06007

9046132009

main90461-32009

9046132024

main90461-32024

9151261035

main91512-61035

9162160835

main91621-60835

9163160840

main91631-60840

9165160825

main91651-60825

9165160835

main91651-60835

9413060800

main94130-60800

9418560800

main94185-60800

9418561000

main94185-61000

27 parts on this diagram · 5 diagrams in section
