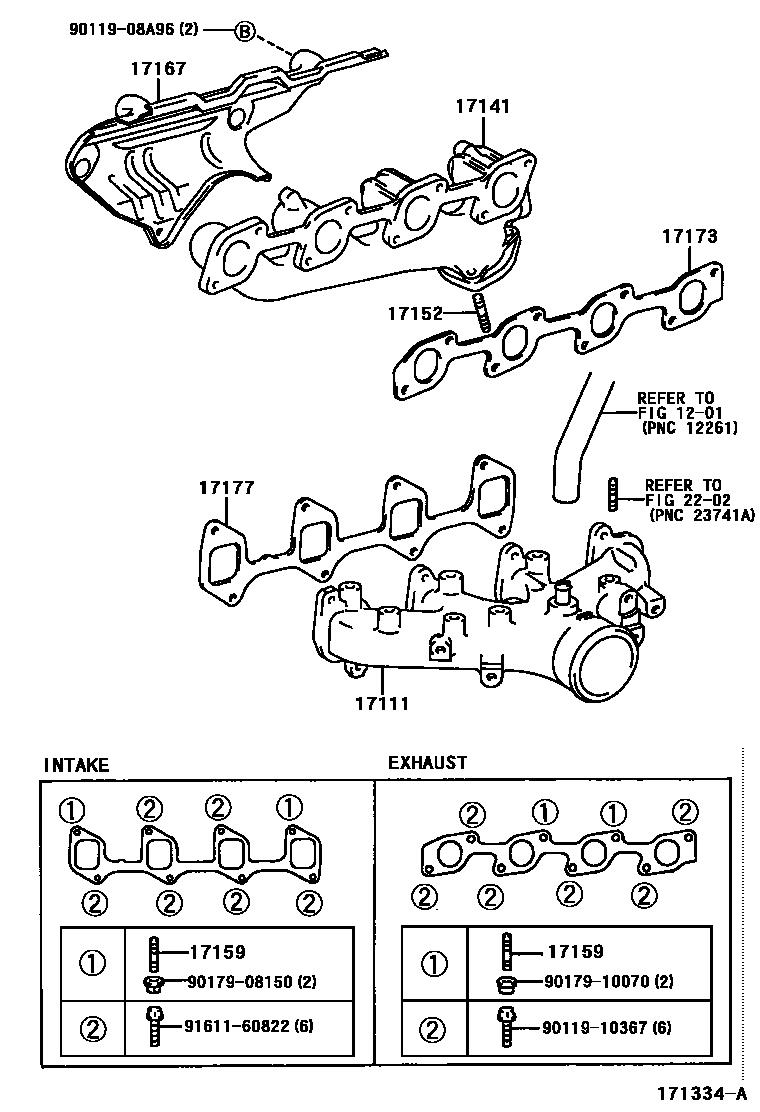

MANIFOLD

0001 1 0002 1 0003 1

1201

17111MANIFOLD, INTAKE

main17101-54110i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main17111-71010i3Y..YY101,121,131,201,211199505

main17111-73020i3YP..YY211199505

17141MANIFOLD, EXHAUST

main17141-54110i3L..LY201,211199505-199602

main17141-54111i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199602

main17141-71010i3Y..YY101,121,131,201,211199505

main17141-72010i3YP..LY16#199505

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10088i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main90116-10146i3Y#..YY101,121,131,201,211199505

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08220i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

INTAKE MANIFOLD

main90116-10063i3Y#..YY101,121,131,201,211199505

main90116-10141i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

EXHAUST MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54110i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main17167-71020i3Y..YY101,121,131,201,211199505

main17167-72011i3YP..LY16#199505

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54030i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54020i3L..LY201,211199505-199507

sub17177-54021

main17177-54021i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199507

2202

9011908A96

main90119-08A96

9011910367

main90119-10367

9017908150

main90179-08150

9017910070

main90179-10070

9161160822

main91611-60822

14 parts on this diagram · 3 diagrams in section
