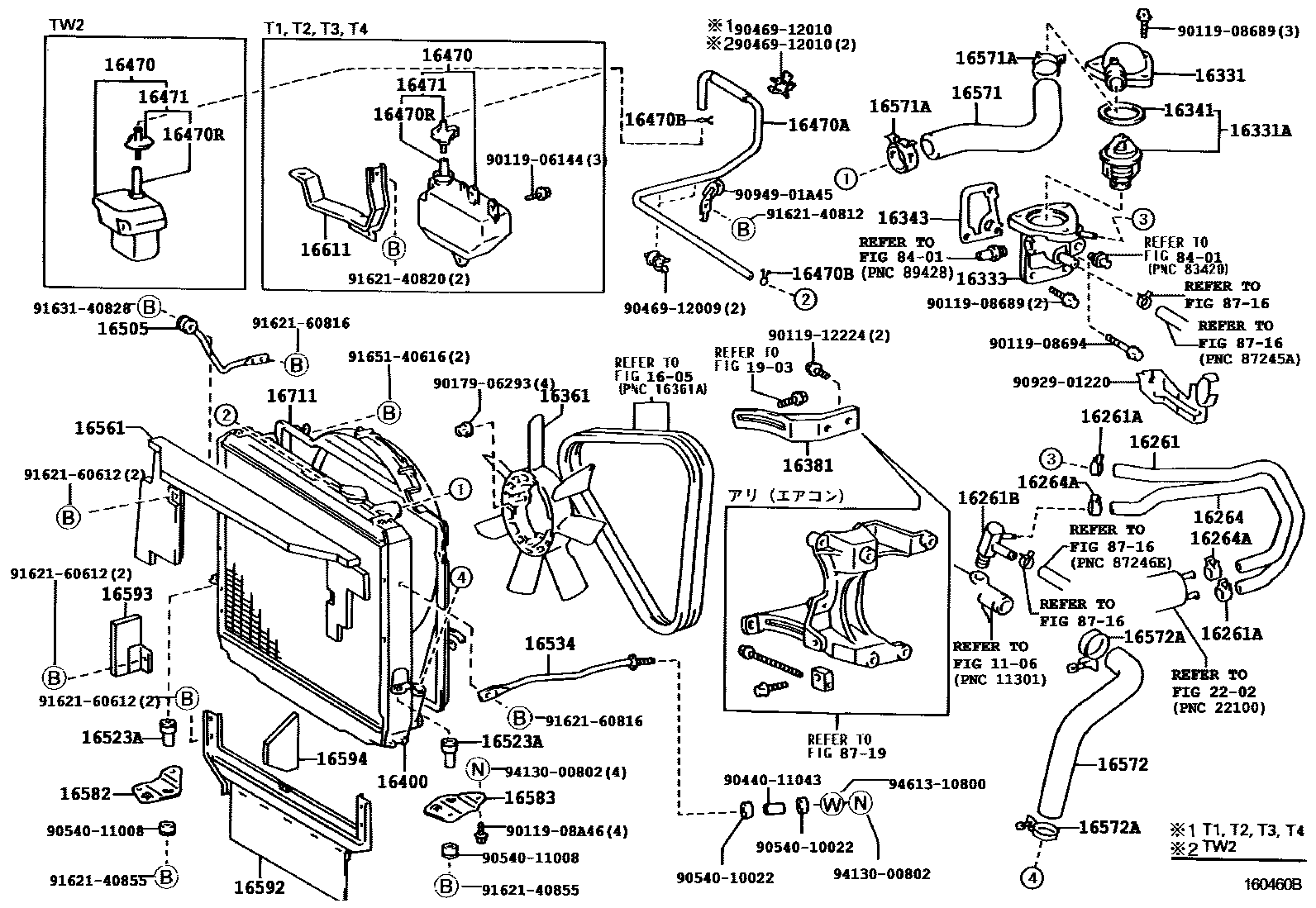

RADIATOR & WATER OUTLET

0001 1 0002 1������ 0003 1 0004 1������ 0005 1 0006 1������ 0007 1 0008 1������ 0009 1 0010 1������ 0011 1 0012 1 0013 1 0014 1 0015 1

1106

1605

16261HOSE, WATER BY-PASS

main16261-54090i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main16261-73140i3YP..LY16#199805

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15022×2i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main90467-20005×2i3YP..LY16#199805

sub96134-41900

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-54037i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main90404-54041i3L..LY101..MTM..125..IV3;3L..LY121,131,201,211..(T2,T4)..MTM..15T..IV3199505-199708

16264HOSE, WATER BY-PASS, NO.2

main16264-54080i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main16281-73010i3YP..LY16#199805

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001×2i3YP..YY211199610

sub96135-51300

main90467-15022×2i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

16331OUTLET, WATER

main16331-54090i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main16331-54170i3L..LY101..MTM..125..IV3;3L..LY121,131,201,211..(T2,T4)..MTM..15T..IV3199505-199708

main16331-71010i3YP..LY16#199805

16331ATHERMOSTAT

main16340-54010i3L..LY111..IV5;3L..LY161..ATM;3L..LY151..T3..IV3;3L..LY161..T3..15T..IV3;5L..LY102,112,122,132,152,162,202,212;3L..LY101,201..TS..MTM..(125,15T)..IV3;3L..LY121,131,199708

main90916-03046i3YP..LY16#199805

16333HOUSING, WATER OUTLET

main16333-54113i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM199505

main16333-54210i3L,5L..LY10#,11#,13#,16#,21#..ATM199505

main16333-54220i3L,5L..LY15#..T3..IV3;3L,5L..LY16#..T3..15T..IV3;3L,5L..LY10#,20#..TS..MTM..(125,15T)..IV3;3L,5L..LY12#,13#,21#..(T2,T4)..MTM..15T..IV3199708

16341GASKET, WATER OUTLET

main16341-35010i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main16341-71011i3Y#..YY101,121,131,201,211199505-199706

main16341-73010i3Y#..YY101,121,131,201,211199707

16343GASKET, WATER OUTLET HOUSING

main16343-54040i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

16361FAN

main16361-38010i3Y#..YY101,121,131,201,211199505

main16361-54040i3L,5L..LY13#,16#,21#..ATM199505

main16361-54050i3L..LY101,111..ATM199610-199705

main16361-54070i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM199505

main16361-54100i3L,5L..LY15#..T3..IV3;3L,5L..LY16#..T3..15T..IV3;3L,5L..LY10#,20#..TS..MTM..(125,15T)..IV3;3L,5L..LY12#,13#,21#..(T2,T4)..MTM..15T..IV3199708

main16361-67030i3L,5L..LY10#,11#..ATM199705

16381BAR, FAN BELT ADJUSTING

main16381-54060i3L..LY211;3L..LY101,111,201..MTM199505-199809

main16381-54061i3L..LY101,111..ATM199809-199905

main16381-54081i3L..LY101..MTM..125..IV3;3L..LY201,211..(T2,T4)..MTM..15T..IV3199505-199905

main16381-54110i3L..LY121,131,151,161199610-199905

main16381-54121i5L..LY102,112,122,132,152,162,202,212199905

main16381-73011i3Y#..YY101,121,131,201,211199505

16400RADIATOR ASSY

main16400-5B190i3L..LY101,111..MTM199610-199708

main16400-5B191i3L,5L..LY10#,11#..MTM199708

main16400-5B240i3L..LY201,211..MTM199505-199708

main16400-5B241i3L,5L..LY20#,21#..MTM199708

main16400-5B250i3L..LY211..ATM199505-199708

main16400-5B251i3L,5L..LY21#..ATM199708

main16400-5B290i3L..LY101..MTM..125..IV3199610-199708

main16400-5B291i3L,5L..LY10#..MTM..125..IV3199708

main16400-5B300i3L..LY201,211..(T2,T4)..MTM..15T..IV3199505-199708

main16400-5B301i3L,5L..LY20#,21#..(T2,T4)..MTM..IV3199708

main16400-5B450i3L..LY121,131..T2..MTM..15T..IV3199610-199708

main16400-5B451i3L,5L..LY15#..T3..IV3;3L,5L..LY16#..T3..15T..IV3;3L,5L..LY12#,13#..T2..MTM..15T..IV3199708

main16400-5B520i3L..LY121,131,151,161..MTM199610-199708

main16400-5B521i3L,5L..LY12#,13#,15#,16#..MTM199708

main16400-5B530i3L..LY131..ATM199610-199708

main16400-5B531i3L,5L..LY13#,16#..ATM199708

main16400-5B570i3L..LY101,111..ATM199610-199702

main16400-5B571i3L..LY101,111..ATM199702-199708

main16400-5B572i3L,5L..LY10#,11#..ATM199708

main16400-73460i3Y..YY101199610-199708

main16400-73461i3Y..YY101199708-200107

main16400-73480i3Y#..YY201,211..MTM199505-199708

main16400-73481i3Y#..YY201,211..MTM199708-200107

main16400-73490i3YP..YY211..125199505-199708

main16400-73491i3Y#..YY211..WT..125199708-200107

main16400-73540i3Y..YY121,131199610-199708

main16400-73541i3Y..YY121,131199708-200107

main16400-73551i3YP..LY16#199805

16470TANK ASSY, RADIATOR RESERVE

main16470-54280i3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4199505

main16470-58080i3L,5L..LY10#,11#,13#,15#,16#,201,21#..TW1,TW2199505

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16567-54130i3L,5L..LY10#,11#,13#,15#,16#,201,21#..TW1,TW2199505

main16567-58010i3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4199505

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#199505

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i3Y#..YY201,211..T1,T2,T3,T4199505-199511

16471CAP SUB-ASSY, RESERVE TANK

main16405-54250i3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4199505

main16405-58050i3L,5L..LY10#,11#,13#,15#,16#,201,21#..TW1,TW2199511

main16405-58060i3Y..YY201,211..TW2199505-199511

16505SUPPORT SUB-ASSY, RADIATOR, RH

main16505-54020i3L,5L..LY10#,11#199610

main16505-54030i3L,5L,3YP..LY12#,13#,15#,16#199610

main16505-54040i3L,5L..LY20#,21#199505

16523ACUSHION, RADIATOR SUPPORT

main16523-54050×2i3L,5L..LY20#,21#199505

main53210-36010×2i3L,5L,3YP..LY10#,11#,12#,13#,15#,16#199610

16534SUPPORT, RADIATOR, NO.2

main16534-54030i3L,5L..LY20#,21#199505

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-71010i3Y#..YY101,201,211199505

main16561-73020i3L,5L,3YP..LY12#,13#,16#199610

16571HOSE, RADIATOR, INLET

main16571-54390i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main16571-54400i3L,5L..LY201,21#..(T2,T4)..MTM..15T..IV3;3L,5L..LY10#,202..TS..MTM..(125,15T)..IV3199505

main16571-54480i3L..LY121,131..T2..MTM..15T..IV3199610-199708

main16571-73120i3YP..LY16#199805

main16571-73130i3Y#..YY201,211199505

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001×2i3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#199505

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16572-54430i3L,5L..LY10#,11#199610

main16572-54450i3L,5L..LY20#,21#199505

main16572-54530i3L,5L..LY12#,13#,15#,16#199610

main16572-73100i3Y..YY101199610

main16572-73110i3Y#..YY201,211199505

main16572-73130i3Y..YY121,131199610

main16572-73140i3YP..LY16#199805

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37002×2i3YP..LY16#199805

sub90467-37005

main90467-41005i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199708

main96111-10460i3L..LY101,111,121,131,151,161,201,211199505-199708

main96111-10500i3L..LY101..MTM..125..IV3;3L..LY121,131..T2..MTM..15T..IV3199610-199708

16582BRACKET, RADIATOR, NO.1

main16582-54020i3L,5L..LY20#,21#199505

main16582-54030×2i3Y..YY101199610

main16582-54040×2i3L,5L,3YP..LY12#,13#,15#,16#199610

16583BRACKET, RADIATOR, NO.2

main16583-54020i3L,5L..LY20#,21#199505

16592GUIDE, RADIATOR AIR, NO.3

main16592-54030i3L..LY201,211..(T2,T4)..MTM..15T..IV3199505-199905

main16592-54050i3L,5L..LY15#,16#..MTM199610

main16592-54060i3L,5L..LY13#,16#..ATM199610

main16592-54070i3L,5L..LY10#,11#..ATM199610

main16592-58030i3L,5L..LY21#..ATM199505

16593GUIDE, RADIATOR AIR, NO.1

main16593-54060i3L,5L..LY20#,21#199505

main16593-54070i3L,5L..LY10#,11#,15#..MTM199610

main16593-54080i3L..LY121,131,161199610-199703

main16593-54090i3L..LY101,111..ATM199610-199703

16594GUIDE, RADIATOR AIR, NO.2

main16594-54060i3L..LY201,211..(T2,T4)..MTM..15T..IV3199505-199905

main16594-54080i3L,5L..LY20#,21#199505

main16594-54090i3L,5L..LY10#,11#,15#199610

main16594-54100i3L,5L..LY12#,13#,16#199610

16611BRACKET, RADIATOR RESERVE TANK

main16611-54130i3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4199505

16711SHROUD, FAN

main16711-54470i3L,5L..LY10#,11#199610

main16711-54490i3L,5L..LY20#,21#199505

main16711-54590i3L,5L..LY12#,13#,15#,16#199610

1903

2202

8401

8716

8719

9011906144

main90119-06144

9011908689

main90119-08689

9011908694

main90119-08694

9011908A46

main90119-08A46

9011912224

main90119-12224

9017906293

main90179-06293

9044011043

main90440-11043

9046912009

main90469-12009

9046912010

main90469-12010

9054010022

main90540-10022

9054011008

main90540-11008

9092901220

main90929-01220

9094901A45

main90949-01A45

9162140812

main91621-40812

9162140820

main91621-40820

9162140855

main91621-40855

9162160612

main91621-60612

9162160816

main91621-60816

9163140828

main91631-40828

9165140616

main91651-40616

9413000802

main94130-00802

9461310800

main94613-10800

62 parts on this diagram · 15 diagrams in section
