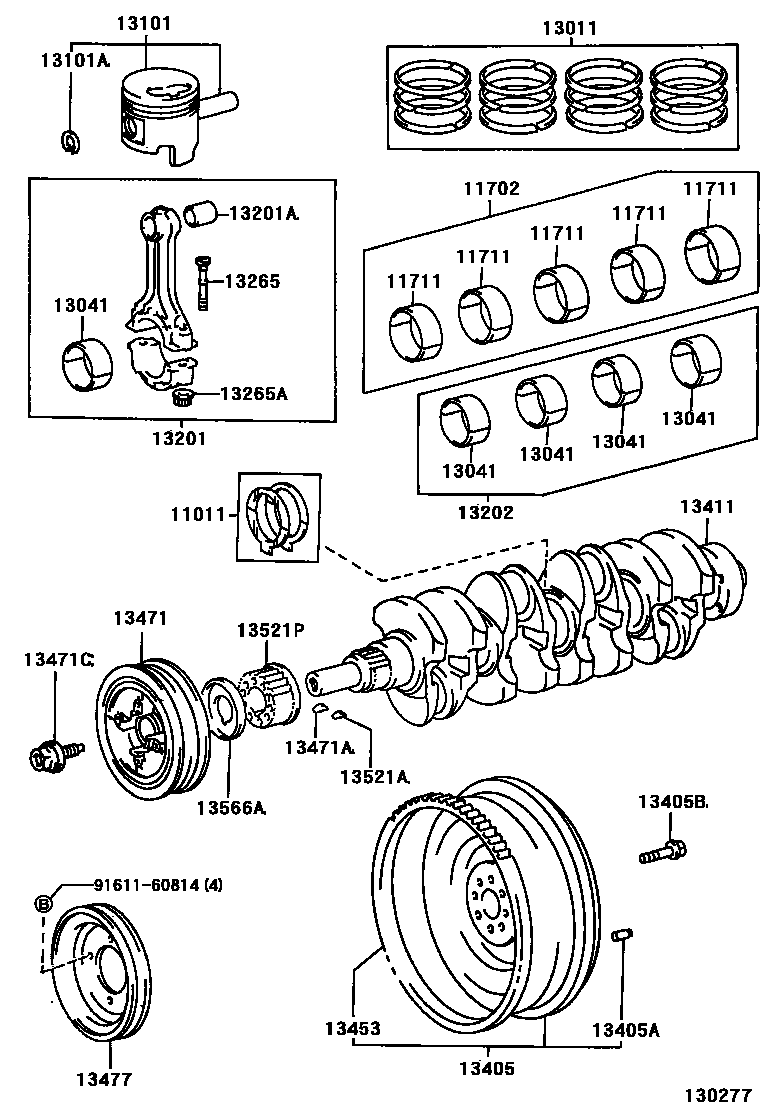

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-25010i3Y#..YY101,121,131,201,211199505

main11011-54020i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main11012-54020i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main11013-54020i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

11702BEARING SET, CRANKSHAFT

main11704-54061i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

sub11704-54080

main11704-71020i3Y#..YY201,211199505-199512

main11704-71030i3Y#..YY101,121,131,201,211199512

sub11704-73010

main11705-54061i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

sub11705-54080

11711BEARING, CRANKSHAFT

main11071-71010-01i3Y#..YY101,121,131,201,211199512

sub11071-73010

main11071-71010-02i3Y#..YY101,121,131,201,211199512

sub11071-73010

main11071-71010-03i3YP..LY16#199512

sub11071-73010

main11701-54061-01i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

MARK 1

sub11701-54080

main11701-54061-02i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

MARK 2

sub11701-54080

main11701-54061-03i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

MARK 3

sub11701-54080

main11701-71020-01i3Y#..YY201,211199505-199512

MARK 1

main11701-71020-02i3Y#..YY201,211199505-199512

MARK 2

main11701-71020-03i3Y#..YY201,211199505-199512

MARK 3

main11701-71030-01i3Y#..YY101,121,131,201,211199512

sub11701-73010

main11701-71030-02i3YP..LY16#199512

sub11701-73010

main11701-71030-03i3Y#..YY101,121,131,201,211199512

sub11701-73010

13011RING SET, PISTON

main13011-54120i3L..LY101,111,121,131,151,161,201,211199505-199905

main13011-54130i5L..LY102,112,122,132,152,162,202,212199905

main13011-71012i3Y..YY101,121,131,201,211199605

main13011-71021i3Y..YY201,211199505-199605

sub13011-71012

main13011-71060i3YP..YY211199505-199512

main13011-73050i3YP..LY16#199605-200004

sub13011-73052

main13011-73052i3YP..LY162200004

sub13011-73070

main13011-73060i3YP..YY211199512-199605

sub13011-73050

main13013-54120i3L..LY101,111,121,131,151,161,201,211199505-199905

main13013-54130i5L..LY102,112,122,132,152,162,202,212199905

main13013-71021i3Y..YY101,121,131,201,211199505

main13013-71060i3YP..YY211199505-199512

main13013-73052i3YP..LY162200004

sub13013-73070

main13013-73060i3YP..YY211199512-200004

sub13013-73052

main13014-71021i3Y..YY101,121,131,201,211199505

main13014-71060i3YP..YY211199505-199512

main13014-73052i3YP..YY211200004

sub13014-73070

main13014-73060i3YP..LY16#199512-200004

sub13014-73052

main13015-71021i3Y..YY101,121,131,201,211199505

main13015-71060i3YP..YY211199505-199512

main13015-73052i3YP..LY162200004

sub13015-73070

main13015-73060i3YP..YY211199512-200004

sub13015-73052

13041BEARING, CONNECTING ROD

main13041-54041-01i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

MARK 1

sub13041-54042

main13041-54041-02i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

MARK 2

sub13041-54042

main13041-54041-03i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

MARK 3

sub13041-54042

main13041-71011-06i3YP..LY16#199505

MARK 6

sub13041-73010

main13041-71011-07i3YP..LY16#199505

MARK 7

sub13041-73010

main13041-71011-08i3Y#..YY101,121,131,201,211199505

MARK 8

sub13041-73010

13101PISTON SUB-ASSY, W/PIN

main13101-54101-01i3L..LY101,111,121,131,151,161,201,211199505-199905

main13101-54101-02i3L..LY101,111,121,131,151,161,201,211199505-199905

main13101-54101-03i3L..LY101,111,121,131,151,161,201,211199505-199905

main13101-54120-01i5L..LY102,112,122,132,152,162,202,212199905

main13101-54120-02i5L..LY102,112,122,132,152,162,202,212199905

main13101-54120-03i5L..LY102,112,122,132,152,162,202,212199905

main13101-73010-01i3YP..LY16#199505

sub13101-73010

main13101-73010-02i3Y#..YY101,121,131,201,211199505

sub13101-73010

main13101-73010-03i3Y#..YY101,121,131,201,211199505

sub13101-73010

main13103-54101i3L..LY101,111,121,131,151,161,201,211199505-199905

main13103-54120i5L..LY102,112,122,132,152,162,202,212199905

main13103-73010i3YP..LY16#199505

main13104-73010i3YP..LY16#199505

main13105-73010i3YP..LY16#199505

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-31001i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

13201ROD SUB-ASSY, CONNECTING

main13201-59105i3L..LY101,111,121,131,151,161,201,211199505-199803

sub13201-59106

main13201-59106i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199803

sub13201-59216

main13201-79045i3Y#..YY101,121,131,201,211199505

sub13201-79046

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73115i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

13202BEARING SET, CONNECTING ROD

main13204-54041i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

sub13204-54042

main13204-71011i3Y#..YY101,121,131,201,211199505

sub13204-73010

main13205-54041i3L..LY101,111,121,131,151,161,201,211199505-199905

sub13205-54042

13265BOLT, CONNECTING ROD

main13265-29025i3YP..LY16#199505

main13265-54020i3L..LY101,111,121,131,151,161,201,211199505-199803

sub13265-54021

main13265-54021i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199803

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09001i3Y#..YY101,121,131,201,211199505

main90179-10123i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

13405FLYWHEEL SUB-ASSY

main13405-54080i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM199505

main13405-72011i3Y#..YY121,131,201,211..MTM199505

main13405-79065i3Y..YY101199610

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM199505

13405BBOLT, FLYWHEEL SETTING

main90105-10042i3YP..LY16#199505

main90105-12109i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM199505

13411CRANKSHAFT

main13401-54060i3L..LY201,211199505-199608

sub13401-54061

main13401-54061i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199608

sub13401-54100

main13411-73010i3Y#..YY101,121,131,201,211199505-199810

sub13411-73900

main13411-73900i3YP..LY16#199810

13453GEAR, FLYWHEEL RING

main13453-20010i3Y#..YY101,121,131,201,211..MTM199505

main13453-54010i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM199505

13471PULLEY, CRANKSHAFT

main13408-54080i3L..LY201,211199505-199608

sub13408-54090

main13408-54090i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199608

main13408-73010i3Y#..YY101,121,131,201,211199505

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i3Y#..YY101,121,131,201,211199505

main95161-30622i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-14069i3Y#..YY101,121,131,201,211199505

main90901-19028i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

13477PULLEY, CRANKSHAFT, NO.2

main88451-20110i3YP..LY162199505-200107

main88451-20110i3YP..LY161199805-199905

main88451-26040i3L..LY151..T3..IV3;3L..LY161..T3..15T..IV3199610-199905

main88451-35030i3L..LY101,111,121,131,151,161,201,211199505-199905

main88451-35030i5L..LY102,112,122,132,152,162,202,212199905-200107

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-33010i3Y#..YY101,121,131,201,211199505

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i3Y#..YY101,121,131,201,211199505

main95161-30622i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

13521PPULLEY, CRANKSHAFT TIMING

main13521-54030i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

13566AGUIDE, TIMING BELT

main13566-54040i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

9161160814

main91611-60814

26 parts on this diagram · 3 diagrams in section
