HEATING & AIR CONDITIONING - COOLER UNIT

82650EBREAKER ASSY, WIRING CIRCUIT

main82650-12020iLY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY52,61;LY61..(T2,T4)..CBU198808-199505

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iYY5#,61;LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU198708-199505

87346IRELAY, ASSY

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-37020iLY5#,61,YY52,61199309-199505

main88501-95403iYY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV198708-199309

88510UNIT ASSY, COOLER

main88510-25020iLY51,61..(T2,T4)..IV199309-199505

main88510-36100iLY51,61..(T2,T4)..IV199109-199309

main88510-95405iYY5#,61;LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU198708-199309

main88510-95405iYY5#,61;LY5#..CBU;LY61..125;LY61..15T..CBU;LY5#..(T3,TW)..IV198708-199301

main88510-95405iLY50..T2..IV;LY61..TS..15T..ST..IV199109-199301

DEALER OPTION

88515VALVE, COOLER EXPANSION

main88515-16031iLY50..T2..IV;LY61..TS..15T..ST..IV198708-199309

main88515-28090iLY5#,61,YY52,61199309-199505

88536BRACKET, COOLING UNIT, NO.1

main88536-95403iLY50,60..(T2,T4)..15T..IV198708-199505

88536ABRACKET, COOLING UNIT, NO.2

main88536-95404iYY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV198708-199505

88536BBRACKET, COOLING UNIT, NO.3

main88536-95405iYY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV198708-199505

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-95409iLY50,60..(T2,T4)..15T..IV198708-199505

88566DUCT, COOLER AIR, NO.1

main88566-95407iYY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV198708-199505

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-95400iLY51,61..(T2,T4)..IV198708-199505

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-26540iYY52,61199309-199505

main88605-26590iLY51,61..(T2,T4)..IV199309-199505

main88605-95404iYY5#,61198708-198808

main88605-95405iLY50..T2..IV;LY61..TS..15T..ST..IV198910-199301

main88605-95405iLY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV198708-198808

main88605-95405iLY51,61..(T2,T4)..IV198808-198910

main88605-95405iLY51,61..(T2,T4)..IV198808-198910

main88605-95405iLY51,61..(T2,T4)..IV198910-199301

main88605-95405iLY51,61..(T2,T4)..IV199301-199309

main88605-95408iLY5#..T2..IV;LY61..15T..IV198808-199309

DEALER OPTION

main88605-95410iYY5#,61198808-199309

88625THERMISTOR, COOLER, NO.1

main88625-95A00iLY51..CBU;LY61..T3,TW;LY51..ST..IV;LY50,YY5#,61;LY61..(T2,T4)..CBU198708-199505

sub88625-28150

88630RELAY ASSY, COOLER

main88630-60020iLY60..TB..15T..IV;LY50..15T..WT1..IV198708-199505

main88630-60020iYY5#,61;LY50,60..CBU;LY50..125..IV;LY50..15T..ST..IV;LY60..(T3,TW)..IV198708-199505

DEALER OPTION

88630ARELAY ASSY, COOLER

main88630-95401iLY50,60..(T2,T4)..15T..IV198708-199505

88645GSWITCH, PRESSURE

main88645-17010iLY50..T2..ST..IV198708-199309

main88645-20050iLY5#,61,YY52,61199309-199505

NO.1

main88645-95J00iYY5#,61;LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU198708-199309

sub88645-12020

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iLY51,61..(T2,T4)..IV198708-199505

main88650-87101iYY5#,61198708-199505

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-95425iLY51,61..(T2,T4)..IV198708-199505

8856912030CLAMP (FOR COOLER RELAY)

main88569-12030

9004464009

main90044-64009

9009900148

main90099-00148

9009900930

main90099-00930

9017906115

main90179-06115

9017908123

main90179-08123

9331515012

main93315-15012

9338118016

main93381-18016

9338516006

main93385-16006

9338516016

main93385-16016

9338518016

main93385-18016

9354015016

main93540-15016

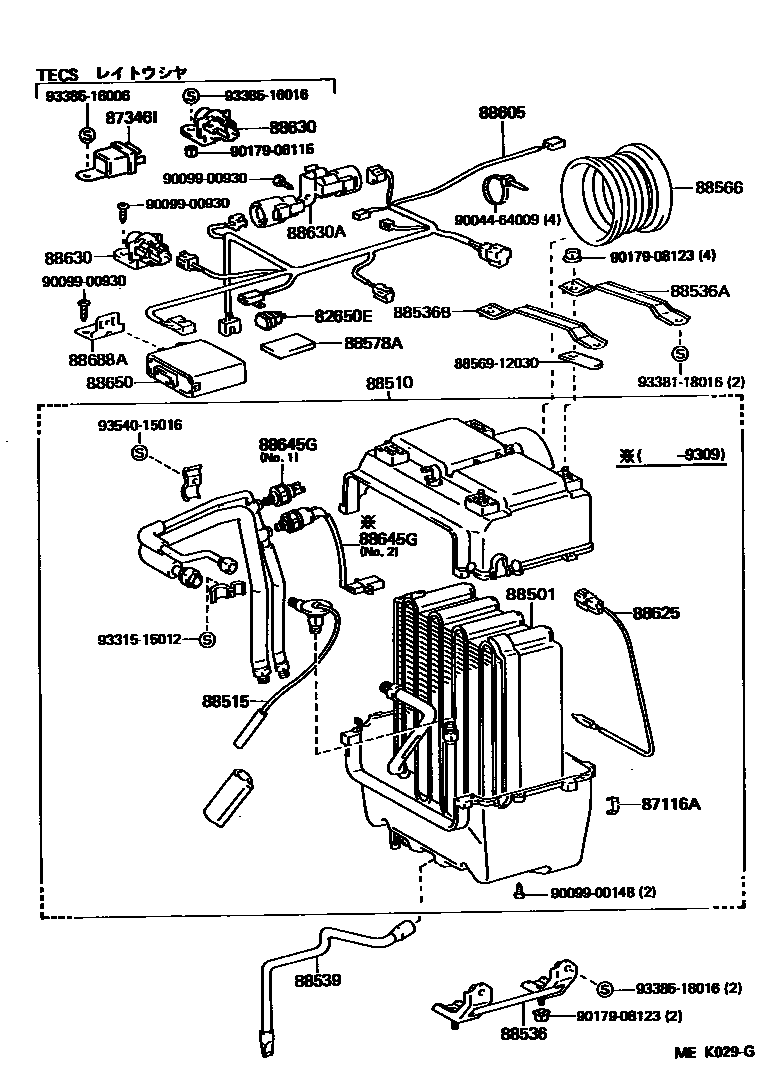

31 parts on this diagram · 1 diagram in section
