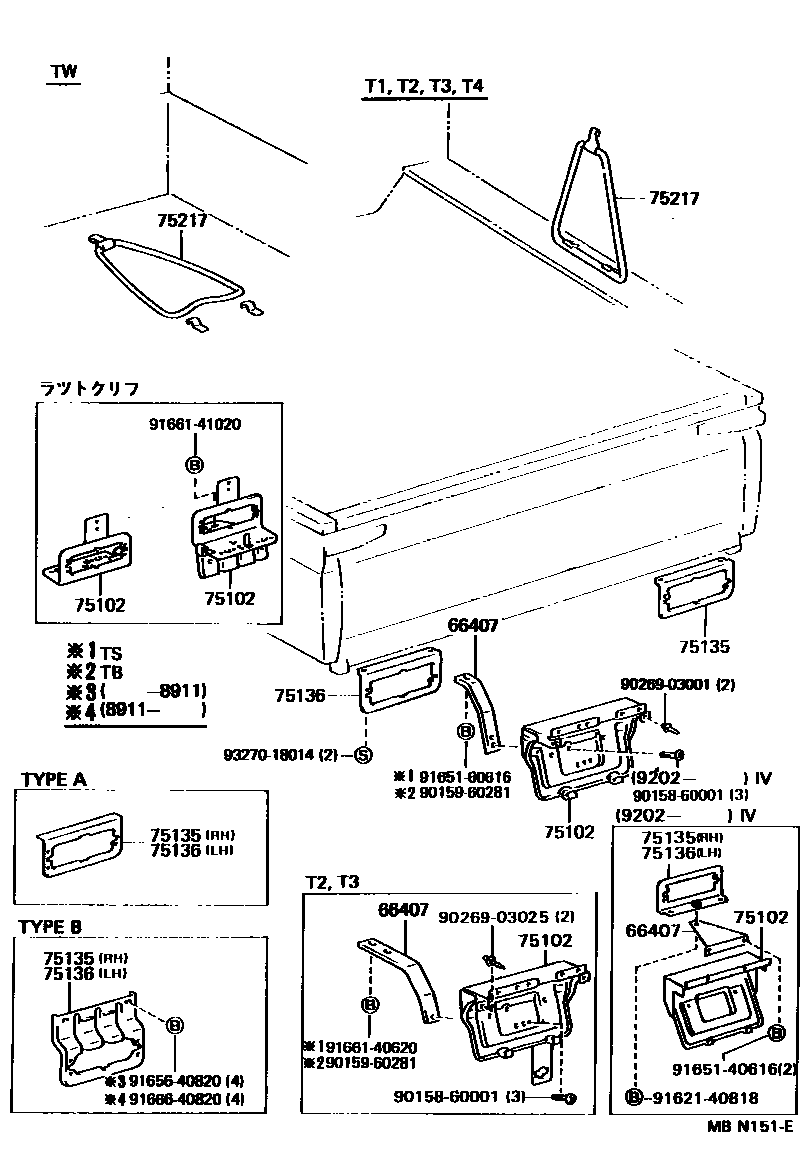

TOOL BOX & LICENSE PLATE BRACKET

66407STAY SUB-ASSY, LICENSE PLATE BRACKET

main66407-95017iLY50,6#,YY5#,61..(T1,TW)..ST..CBU198708-199505

sub66407-25050

main66407-95019iLY50,6#,YY5#,61..T3..TS..CBU198708-199505

main66407-95020iLY61,YY61..TS..WT1..CBU;LY5#,60,YY5#..T2..TS..CBU198708-199505

main66493-92202iLY5#,6#,YY52,61..T3..TB..CBU198708-199505

main66493-92203iLY5#,6#,YY52,61..(T2,T4,TW)..TB..CBU198708-199505

main66493-92204iLY6#..T3..TB;LY6#..TB..15T..WT1;YY61..TB..15T..(ST,WT1)..CBU198708-199505

main66495-25010iLY5#,61,YY5#,61..TS..IV199202-199505

sub66495-25011

main75126-25030iLY61..TB..15T..WT1;LY51,61,YY52..T3..TB..CBU;YY61..TB..15T..(ST,WT1)..CBU199302-199505

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-92201iLY5#,6#,YY52,61..T3..TB..CBU198708-199505

main66490-95019iLY5#,61,YY5#,61..T3..IV;LY5#,61,YY5#,61..T1,T2,T4,TW198708-199505

sub66490-25030

main66490-95019iLY61..TB..15T..WT1;LY51,61,YY52..T3..TB..CBU;YY61..TB..15T..(ST,WT1)..CBU199302-199505

sub66490-25030

main66490-95021iLY50,6#,YY5#,61..T3..TS..CBU198708-199505

75135BRACKET, COMBINATION REAR LAMP, RH

main58378-92200iLY60..TB..15T..WT1;LY5#,6#,YY52,61..T3..TB..CBU198708-199505

TYPE B

main75103-25011iLY6#..TB..15T..WT1;YY61..TB..15T..(ST,WT1);LY5#,6#,YY52..T3..TB..CBU198708-199302

main75135-25030iLY61..TB..15T..WT1;LY51,61,YY52..T3..TB..CBU;YY61..TB..15T..(ST,WT1)..CBU199302-199505

sub75136-25020

main75135-25030iLY5#,61,YY5#,61..IV199202-199505

sub75136-25020

main75135-92201iLY5#,6#,YY52,61..(T2,T4,TW)..TB..CBU198708-199505

TYPE A

sub75135-25040

main75135-95A02iLY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU198708-199505

sub75136-25010

75136BRACKET, COMBINATION REAR LAMP, LH

main58378-92200iLY60..TB..15T..WT1;LY5#,6#,YY52,61..T3..TB..CBU198708-199505

TYPE B

main75104-25011iLY6#..TB..15T..WT1;LY5#,6#,YY52..T3..TB..CBU;YY61..TB..15T..(ST,WT1)..CBU198708-199505

main75135-25030iLY5#,61,YY5#,61..IV199202-199505

sub75136-25020

main75135-92201iLY5#,6#,YY52,61..(T2,T4,TW)..TB..CBU198708-199505

TYPE A

sub75135-25040

main75135-95A02iLY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU198708-199505

sub75136-25010

75217BAND, TOOL BAG

main58705-95A01iLY5#,6#,YY5#,61198708-199505

9015860001

main90158-60001

9015960281

main90159-60281

9026903001

main90269-03001

9026903025

main90269-03025

9162140818

main91621-40818

9165140616

main91651-40616

9165160616

main91651-60616

9165640820

main91656-40820

9166140620

main91661-40620

9166141020

main91661-41020

9166640820

main91666-40820

9327018014

main93270-18014

17 parts on this diagram · 1 diagram in section
