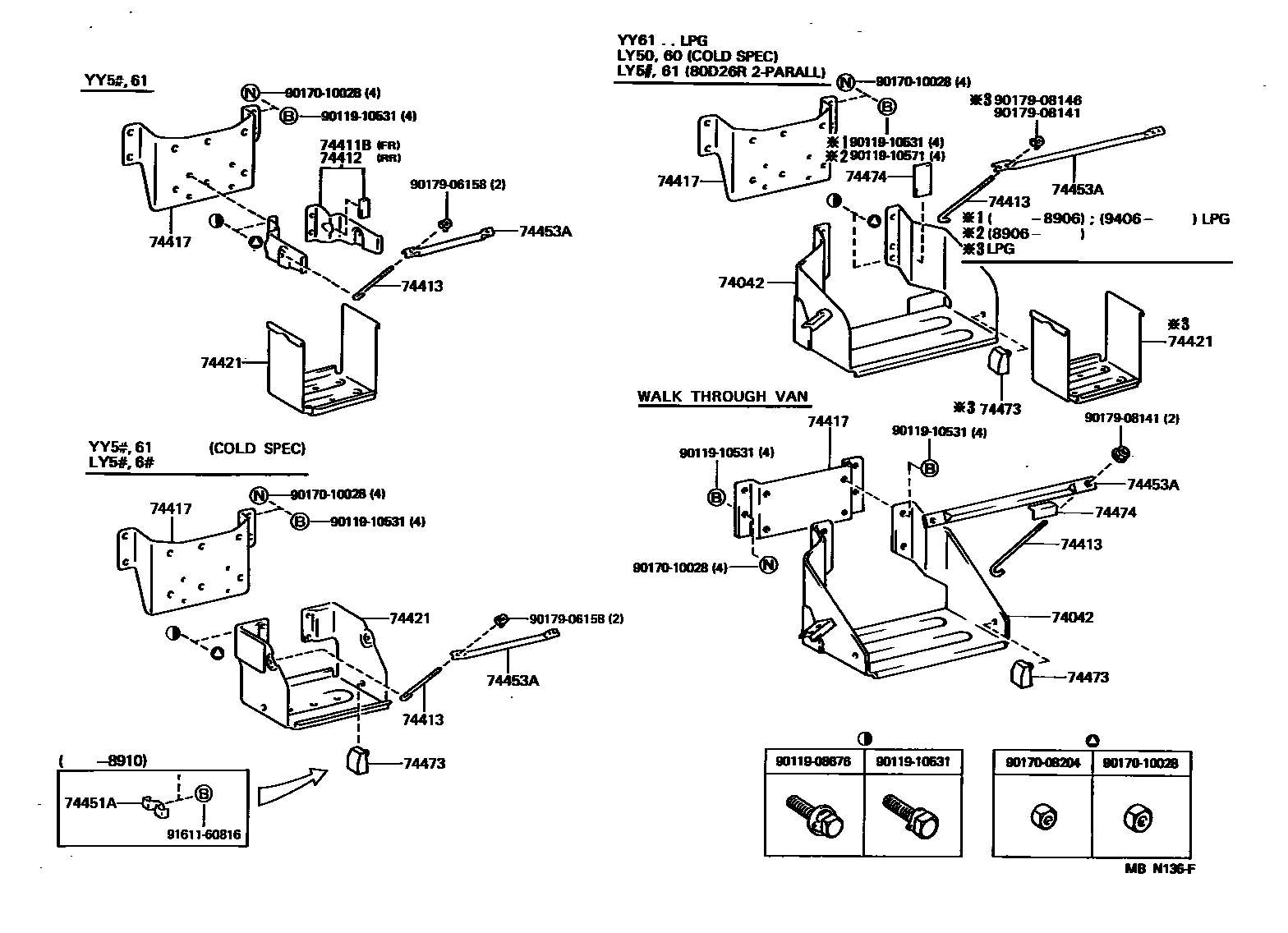

BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-25010iYY61..LPG199406-199505

main74042-25030iLY50,60..T3198708-198808

main74042-25040iLY5#,61..T3,TW198808-198906

main74042-25041iLY5#,61..T3,TW198906-199505

main74042-36010iLY61..15T..WT1..IV198808-199505

main74042-36020iLY6#..15T..WT1..IV198708-199505

main74042-36041iLY50..WT1;LY50..T1,TW;LY60..TB..ST..IV;LY60..(T4,TW)..IV;LY60..(T2,T4,TW)..CBU198708-198804

74411BBRACKET, BATTERY, FRONT

main74411-25011iYY5#,61..CBR198708-199505

74412BRACKET, BATTERY, REAR

main74412-25011iYY5#,61..CBR198708-199505

74413BOLT, BATTERY CLAMP

main74451-25020×2iLY5#,6#,YY5#,61..CBR,DSL198708-199505

main74451-36070×2iLY50..T2..ST198708-198808

74417BRACKET, BATTERY CARRIER

main74417-25020iLY5#,6#,YY5#,61..(T1,T2,T3,T4)..(CBR,DSL)198708-199505

main74417-25030iYY61..LPG199406-199505

main74417-25040iLY6#..15T..WT1..IV198708-199505

main74417-25050iLY50..T2..ST198708-198808

main74417-25051iLY5#,61..T1,T2,T3,T4198808-199505

74421HANGER, BATTERY

main74421-25020iLY5#,6#198708-198904

main74421-26010iYY5#,61..CBR198708-199505

main74421-26020iLY5#,61198904-199505

74451APLATE, BATTERY SET

main74451-25050×2iYY5#,61198708-198910

74453ABAR, BATTERY SET PLATE

main74453-25070iYY61..LPG199406-199505

main74453-25080iYY5#,61..CBR198708-199505

main74453-25090iYY5#,61..CBR198708-199505

main74453-25100iLY6#..15T..WT1..IV198708-199505

main74453-36050iLY60..IV;LY50..WT1;LY50..T1,T3,TW;LY60..DYN..CBU;LY60..TOY..TB..CBU;LY60..TOY..TS..ST..CBU198804-198808

sub74453-36060

main74453-36070iLY5#,61198808-199505

sub74453-37130

74473SPACER, BATTERY

main74473-36040×2iYY5#,61..CBR198910-199505

main74473-36050×2iYY61..LPG199406-199505

74474PAD, BATTERY

main74475-36040×2iLY50;LY60..CBU;LY60..TB..ST..IV;LY60..(T3,T4,TW)..IV198708-198804

9011908676

main90119-08676

9011910531

main90119-10531

9011910571

main90119-10571

9017008204

main90170-08204

9017010028

main90170-10028

9017906158

main90179-06158

9017908141

main90179-08141

9017908146

main90179-08146

9161160816

main91611-60816

19 parts on this diagram · 1 diagram in section
