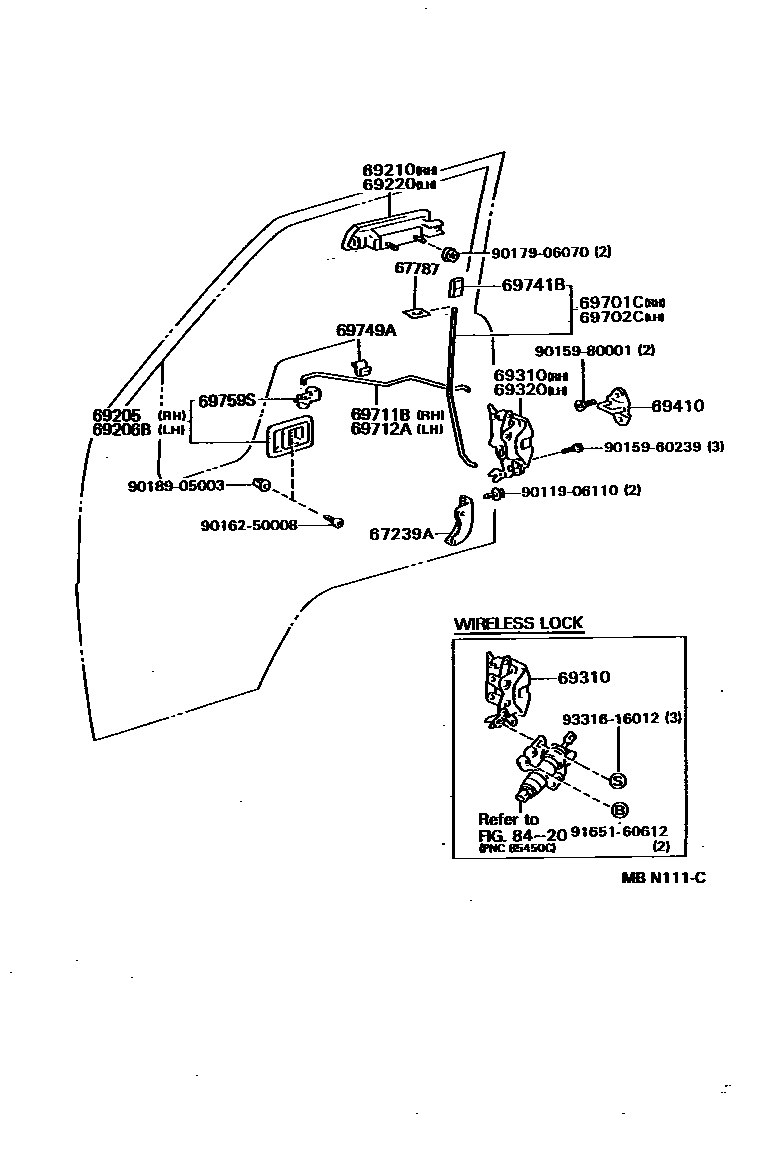

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

67239AWEIGHT, FRONT DOOR

main67239-95401iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-199505

67787SILENCER, FRONT DOOR LOCKING BUTTON KNOB

main67787-37020×2iLY5#,61,YY52,61199503-199505

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10040-14iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

sub69205-10030

main69205-10040-16iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

sub69205-10030

main69205-10040-B1iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

sub69205-10030

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10040-14iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

sub69206-10030

main69206-10040-16iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

sub69206-10030

main69206-10040-B1iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

sub69206-10030

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95400iLY5#,6#,YY5#,61198708-199505

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95400iLY5#,6#,YY5#,61198708-199505

main69220-95404iLY5#,6#..15T198708-199309

sub69220-37040

69310LOCK ASSY, FRONT DOOR, RH

main69310-37010iLY5#,61,YY5#,61199109-199505

main69310-95409iLY5#,6#,YY5#,61198708-199505

main69310-95410iLY5#,6#..T1,T2,T3,T4198708-199008

69320LOCK ASSY, FRONT DOOR, LH

main69320-37010iYY61..LPG199309-199505

main69320-95406iLY5#,6#..15T198708-199309

main69320-95408iLY5#,6#,YY5#,61198708-199505

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-89103×2iLY5#,6#,YY5#,61198708-199505

main69410-95401iLY5#,6#..15T198708-199309

main69420-95401iLY5#,6#..15T198708-199309

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69701-95400-01iLY5#,6#,YY5#,61..TOY198708-199109

BLACK,TRIM8#

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69702-95400-01iLY5#,61,YY5#,61199109-199505

BLACK,TRIM1#

69711LINK, FRONT SLIDE DOOR KEY CYLINDER

main69711-95402iLY5#,6#..15T198708-199309

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-95403iLY5#,6#,YY5#,61198708-199505

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-95401iLY5#,6#,YY5#,61198708-199505

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-20020-01iLY61..DYN..125;LY50,YY5#,61..DYN199008-199109

main69741-32010-01iLY51,61..15T199202-199309

sub69741-90K00

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20010iLY5#,6#..15T198708-199309

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iLY5#,6#..15T198708-199309

main69759-20070iLY5#,6#,YY5#,61198708-199505

8420

9011906110

main90119-06110

9015960239

main90159-60239

9015980001

main90159-80001

9016250008

main90162-50008

9017906070

main90179-06070

9018905003

main90189-05003

9165160612

main91651-60612

9331616012

main93316-16012

26 parts on this diagram · 2 diagrams in section
