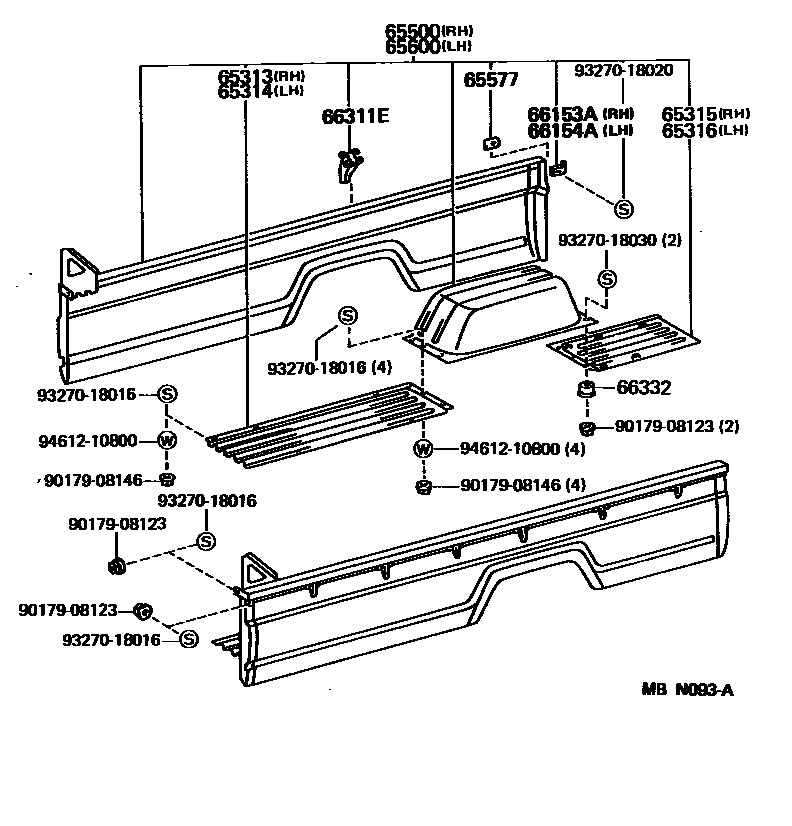

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-25010iLY61,YY61..125..ST..CBU199210-199505

main65313-25020iLY50,YY5#..10T..CBU199210-199505

main65313-26020iLY50,YY5#..T1199210-199505

main65313-95027iLY50,YY51..10T..CBU198708-199210

sub65313-25020

main65313-95029iLY6#,YY61..125..ST..CBU198708-199210

sub65313-25010

main65313-95A04iLY50,YY51..T1198708-199210

sub65313-26020

65314PANEL, FLOOR FRONT CORNER, LH

main65314-25010iLY61,YY61..125..ST..CBU199210-199505

main65314-25020iLY50,YY5#..T1199210-199505

main65314-25030iLY50,YY5#..10T..CBU199210-199505

main65314-95022iLY50,YY51..T1198708-199210

sub65314-25020

main65314-95027iLY50,YY51..10T..CBU198708-199210

sub65314-25030

main65314-95029iLY6#,YY61..125..ST..CBU198708-199210

sub65314-25010

65315PANEL, FLOOR REAR CORNER, RH

main65315-25010iLY50,61,YY5#,61..(T1,TW)..ST..CBU199210-199505

main65315-95405iLY50,6#,YY51,61..(T1,TW)..ST..CBU198708-199210

sub65315-25010

65316PANEL, FLOOR REAR CORNER, LH

main65316-25010iLY50,61,YY5#,61..(T1,TW)..ST..CBU199210-199505

main65316-95405iLY50,6#,YY51,61..(T1,TW)..ST..CBU198708-199210

sub65316-25010

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-25010iLY61,YY61..TS..125..WT1199008-199109

main65500-25030iLY5#,YY5#..(T2,T3)..TS..CBU199008-199109

main65500-25040iLY61,YY61..TS..15T..CBU199008-199109

main65500-25050iLY5#,YY5#..(T2,T3)..TS..CBU199109-199505

sub65500-25051

main65500-25060iLY50,YY5#..T1199210-199505

main65500-25070iLY61,YY61..125..ST..CBU199210-199505

main65500-25080iLY50,YY5#..10T..CBU199210-199505

main65500-26050iLY61,YY61..TS..125..WT1199109-199505

sub65500-26051

main65500-26060iLY61,YY61..TS..15T..CBU199109-199505

sub65500-26061

main65500-92219iLY6#,YY61..TB..15T..CBU198708-199505

sub65500-92731

main65500-92223iLY6#,YY61..TB..125..CBU198708-199305

sub65500-92730

main65500-92224iLY5#,YY52..TB..CBU198708-199505

main65500-92730iLY61,YY61..TB..125..CBU199305-199505

main65500-95068iLY5#,YY5#..(T2,T3)..TS..CBU198708-198910

sub65500-95073

main65500-95069iLY6#,YY61..TS..15T..CBU198708-198910

sub65500-25040

main65500-95070iLY50,YY51..10T..CBU198708-199210

sub65500-25080

main65500-95071iLY6#,YY61..125..ST..CBU198708-199210

sub65500-25070

main65500-95072iLY50,YY51..T1198708-199210

sub65500-25060

main65500-95073iLY5#,YY5#..(T2,T3)..TS..CBU198910-199008

sub65500-25030

sub65679-25020

main65500-95074iLY61,YY61..TS..15T..CBU198910-199008

sub65500-25040

sub65679-25020

65577RETAINER, TAIL GATE LATCH FEMALE

main65577-95012iLY50,6#,YY5#,61..(T1,TW)..ST..CBU198708-199505

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-25010iLY61,YY61..TS..125..WT1199008-199109

main65600-25030iLY5#,YY5#..(T2,T3)..TS..CBU199008-199109

main65600-25040iLY61,YY61..TS..15T..CBU199008-199109

main65600-25050iLY5#,YY5#..(T2,T3)..TS..CBU199109-199505

sub65600-25051

main65600-25060iLY50,YY5#..T1199210-199505

main65600-25070iLY61,YY61..125..ST..CBU199210-199505

main65600-25080iLY50,YY5#..10T..CBU199210-199505

main65600-26050iLY61,YY61..TS..125..WT1199109-199505

sub65600-26051

main65600-26060iLY61,YY61..TS..15T..CBU199109-199505

sub65600-26061

main65600-92219iLY6#,YY61..TB..15T..CBU198708-199505

sub65600-92731

main65600-92223iLY6#,YY61..TB..125..CBU198708-199305

sub65600-92730

main65600-92224iLY5#,YY52..TB..CBU198708-199505

main65600-92730iLY61,YY61..TB..125..CBU199305-199505

main65600-95068iLY50,YY51..T1198708-199210

sub65600-25060

main65600-95070iLY5#,YY5#..(T2,T3)..TS..CBU198708-198910

sub65600-95074

main65600-95071iLY6#,YY61..TS..15T..CBU198708-198910

sub65600-25040

main65600-95072iLY50,YY51..10T..CBU198708-199210

sub65600-25080

main65600-95073iLY6#,YY61..125..ST..CBU198708-199210

sub65600-25070

main65600-95074iLY5#,YY5#..(T2,T3)..TS..CBU198910-199008

sub65600-25030

sub65679-25010

main65600-95075iLY61,YY61..TS..15T..CBU198910-199008

sub65600-25040

sub65679-25010

66153ALATCH, TAIL GATE FEMALE, RH

main66153-26010iLY61,YY61..TS..WT1..CBU;LY5#,YY5#..(T2,T3)..TS..CBU;LY61,YY61..TS..15T..ST..CBU199109-199505

main66153-95012iLY50,6#,YY5#,61..(T1,TW)..ST..CBU198708-199505

main66153-95A01iLY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU198708-199109

66154ALATCH, TAIL GATE FEMALE, LH

main66153-95012iLY50,6#,YY5#,61..(T1,TW)..ST..CBU198708-199505

main66154-26010iLY61,YY61..TS..WT1..CBU;LY5#,YY5#..(T2,T3)..TS..CBU;LY61,YY61..TS..15T..ST..CBU199109-199505

main66154-95A01iLY61,YY61..TS..WT1..CBU;LY5#,YY5#..(T2,T3)..TS..CBU;LY61,YY61..TS..15T..ST..CBU198708-199109

66311EHOOK, ROPE

main66311-90K00iLY50,YY5#..T1199210-199505

main66311-95010iLY50,YY51..T1198708-199210

sub66311-90K00

66332CUSHION, RUBBER

main66332-95A00iLY50,6#,YY5#,61..(T1,TW)..ST..CBU198708-199505

9017908123

main90179-08123

9017908146

main90179-08146

9327018016

main93270-18016

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

17 parts on this diagram · 4 diagrams in section
