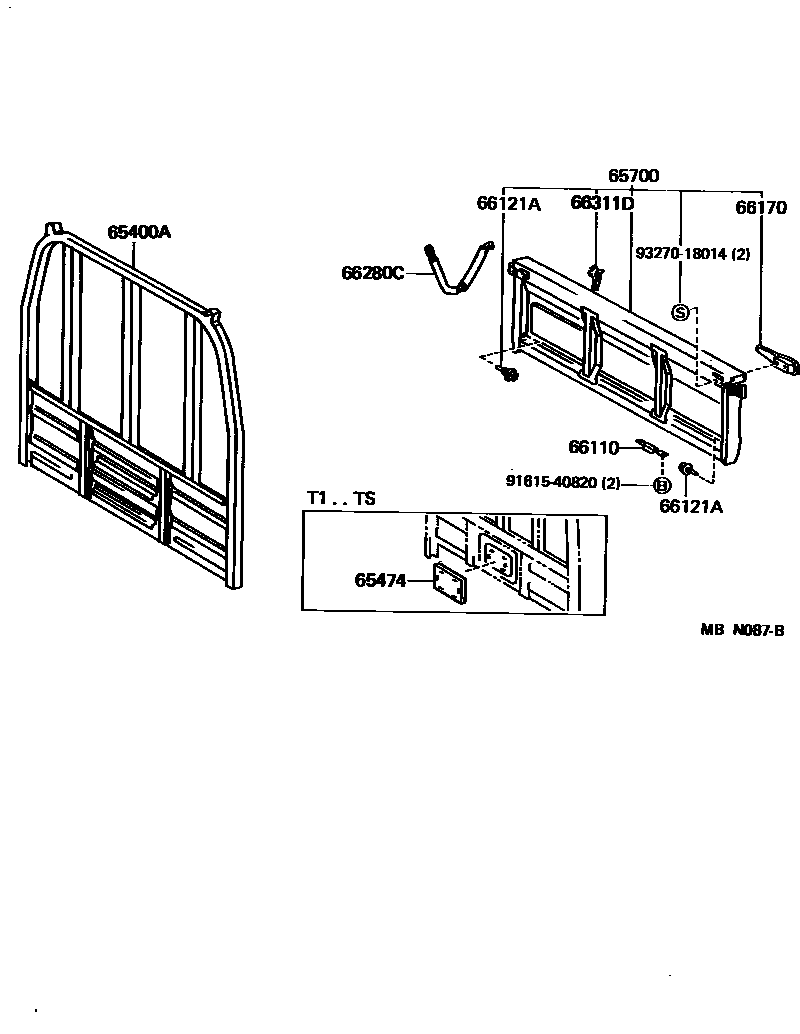

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0004 1 0005 1

65400AGUARD ASSY, REAR BODY

main65400-25010iLY50,61,YY5#,61..T3..TS..CBU199008-199505

main65400-25020iYY5#,61..T2..TS..CBU199008-199505

main65400-25030iLY61,YY61..TS..125..WT1199008-199109

main65400-25040iYY51..T1199008-199210

sub65400-25041

main65400-25041iYY5#..T1199210-199505

main65400-25050iLY50..T1199008-199210

sub65400-25051

main65400-25051iLY50..T1199210-199505

main65400-25060iLY5#..T2..TS..CBU;LY61..TS..WT1..CBU;YY61..TS..125..WT1199008-199505

main65400-25100iYY52,61..TB..15T..WT1199008-199309

sub65400-25190

sub66311-92701

main65400-25110iYY61..WT2..CBU199008-199309

sub65400-25200

sub66311-92701

main65400-25140iLY50,YY5#..10T..CBU199210-199505

main65400-25150iLY61,YY61..125..ST..CBU199210-199505

main65400-25160iLY51,61,YY52,61..T3..TB..CBU199309-199505

main65400-25170iLY51,61..T2..TB..CBU199309-199505

sub65400-25190

main65400-25180iLY61..WT2..CBU199309-199505

sub65400-25200

main65400-25190iYY52,61..TB..15T..WT1..CBU199309-199505

main65400-25200iYY61..WT2..CBU199309-199505

main65400-92219iLY61..WT2..CBU198708-199309

sub65400-25180

sub66311-92701

main65400-92222iYY61..WT2..CBU198708-198904

sub65400-25180

sub66311-92701

main65400-92223iLY51,61,YY52,61..T3..TB..CBU198708-199309

sub65400-25160

sub66311-92701

main65400-92224iLY51,61..T2..TB..CBU198708-199309

sub65400-25170

sub66311-92701

main65400-92225iLY6#,YY61..TB..125..CBU198708-199505

main65400-92226iYY52,61..TB..ST..CBU198708-198904

sub65400-25160

sub66311-92701

main65400-92227iYY52,61..TB..15T..WT1198708-198904

sub65400-25170

sub66311-92701

main65400-95057iLY50,YY51..T1198708-199008

sub65400-25050

main65400-95059iLY50,6#,YY51,61..T3..TS..CBU198708-198910

sub65400-25010

main65400-95060iLY5#,6#,YY5#,61..T2..TS..CBU198708-198910

sub65400-25060

main65400-95063iLY50,YY51..10T..CBU198708-199210

sub65400-25140

main65400-95064iLY6#,YY61..125..ST..CBU198708-199210

sub65400-25150

main65400-95066iLY50,61,YY51,61..T3..TS..CBU198910-199008

sub65400-25010

main65400-95067iLY5#,61,YY5#,61..T2..TS..CBU198910-199008

sub65400-25060

65474INSULATOR, HEADER

main65474-25010iYY5#,61..(T1,T2)..TS..CBU199008-199505

main65474-25020iYY5#,61..T3..TS..CBU199008-199505

65700GATE ASSY, REAR BODY TAIL

main65700-25010iLY50,61,YY5#,61..(T1,TW)..ST..CBU199210-199505

main65700-26010iLY61,YY61..TS..WT1..CBU;LY5#,YY5#..(T2,T3)..TS..CBU;LY61,YY61..TS..15T..ST..CBU199109-199505

main65700-92208iLY5#,6#,YY52,61..TB..CBU198708-199305

sub65700-92721

main65700-92721iLY51,61,YY52,61..TB..CBU199305-199505

main65700-95030iLY50,6#,YY51,61..(T1,TW)..ST..CBU198708-199210

sub65700-25010

main65700-95031iLY5#,6#,YY5#,61..(T2,T3)..TS..CBU198708-198910

sub65700-95032

main65700-95032iLY61,YY61..TS..WT1..CBU;LY5#,YY5#..(T2,T3)..TS..CBU;LY61,YY61..TS..15T..ST..CBU198910-199109

66110HINGE ASSY, TAIL GATE

main66110-26010iLY61,YY61..TS..WT1..CBU;LY5#,YY5#..(T2,T3)..TS..CBU;LY61,YY61..TS..15T..ST..CBU199109-199505

main66110-92702iLY5#,6#,YY52,61..TB..CBU198708-199505

main66110-95014iLY50,6#,YY5#,61..(T1,TW)..ST..CBU198708-199505

main66110-95020iLY61,YY61..TS..WT1..CBU;LY61,YY61..TS..15T..ST..CBU;LY5#,60,YY5#..(T2,T3)..TS..CBU198708-199109

66121ABOLT, TAIL GATE MALE

main66121-95012iLY50,6#,YY5#,61..(T1,TW)..ST..CBU198708-199505

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iLY50,6#,YY5#,61..(T1,TW)..ST..CBU198708-199505

66280CCHAIN ASSY, TAIL GATE

main66280-25010iLY61,YY61..TS..WT1..CBU;LY5#,YY5#..(T2,T3)..TS..CBU;LY61,YY61..TS..15T..ST..CBU198910-199505

main66280-37010iLY50,61,YY5#,61..(T1,TW)..ST..CBU198910-199505

main66280-92702iLY5#,6#,YY52,61..TB..CBU198708-199505

main66280-95016iLY5#,6#,YY5#,61..(T2,T3)..TS..CBU198708-198910

sub66280-25010

main66280-95403iLY50,6#,YY51,61..(T1,TW)..ST..CBU198708-198910

sub66280-37010

66311DHOOK, ROPE

main66311-90K00iLY50,61,YY5#,61..(T1,TW)..ST..CBU199210-199505

main66311-92701iLY61,YY61..TB..125..CBU198708-199505

main66311-95010iLY50,6#,YY51,61..(T1,TW)..ST..CBU198708-199210

sub66311-90K00

main66312-25010iLY61,YY61..TS..125..WT1199008-199109

main66312-95A01iLY5#,6#,YY5#,61..(T2,T3)..TS..CBU198708-199505

9161540820

main91615-40820

9327018014

main93270-18014

10 parts on this diagram · 4 diagrams in section
