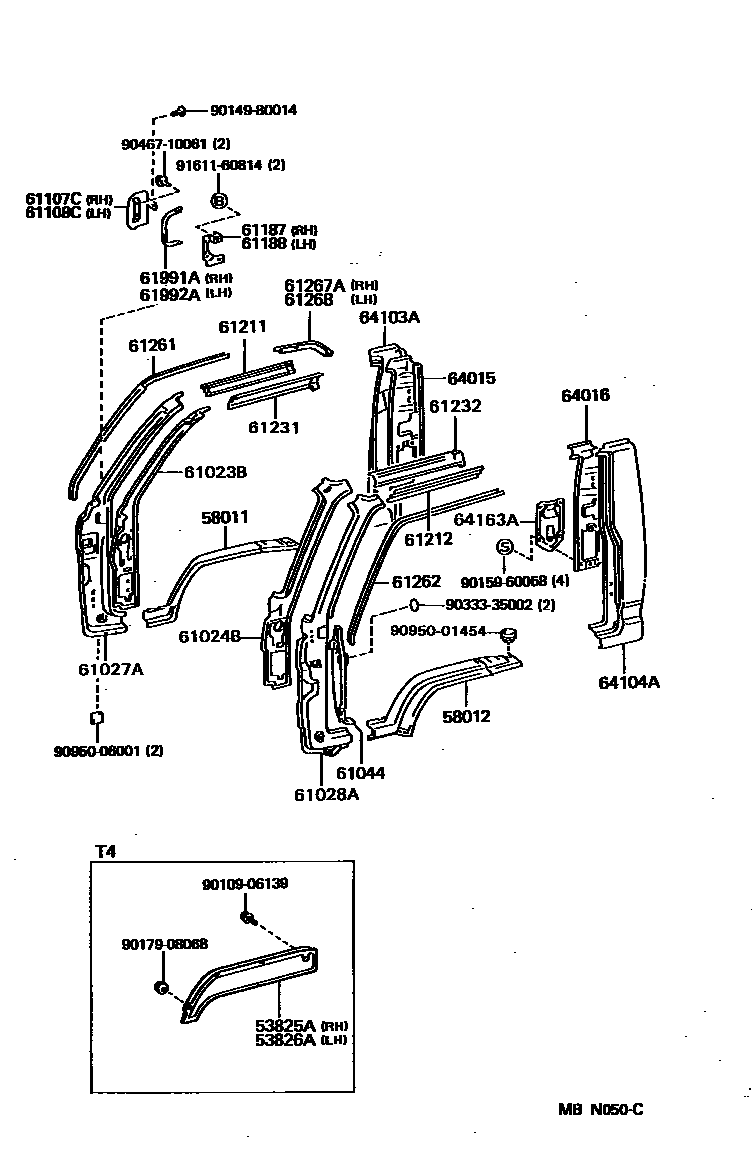

SIDE MEMBER

0001 1 0002 1

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-95010iLY6#,YY61..WT2198708-199505

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-95010iLY6#,YY61..WT2198708-199505

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-95011iLY5#,6#,YY5#,61..T1,T2,T3198708-199505

sub58011-25010

main58011-95013iLY6#,YY61..WT2198708-199505

sub58011-25020

main58011-95448iLY50,6#,YY5#,61..TW198708-199505

sub58011-37030

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-95012iLY5#,6#,YY5#,61..T1,T2,T3198708-199505

main58012-95017iLY6#..WT2198708-199505

sub58012-25030

main58012-95018iYY61..WT2198708-199505

sub58012-25040

main58012-95019iLY6#..WT2198708-199309

main58012-95445iLY50,6#,YY5#,61..TW198708-199505

sub58012-37040

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iLY5#,6#,YY5#,61198708-199505

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-37010iYY61..LPG199406-199505

sub61024-37020

main61024-95400iLY61..15T..WT1..IV198708-199505

sub61024-95403

main61024-95403iLY5#,6#..15T198708-199309

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-37010iLY5#,61,YY5#,61198911-199109

main61027-37030iLY5#,61,YY5#,61199109-199505

main61027-95400iLY5#,6#,YY5#,61198708-198911

sub61027-37010

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-37030iLY61..15T..WT1..IV199301-199309

main61028-37030iLY5#,61,YY5#,61199301-199505

main61028-37050iLY51,61..15T199301-199309

main61028-37060iYY61..LPG199406-199505

sub61028-37030

main61028-95400iLY61..15T..WT1..IV198808-199301

sub61028-37030

main61028-95400iLY5#,6#,YY5#,61198708-199301

sub61028-37030

main61028-95402iLY5#,6#..15T198708-199301

sub61028-37050

61044EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

main61044-95400iLY5#,6#..15T198708-199309

61107CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, RH

main61107-95415iLY5#,6#,YY5#,61198708-199505

61108CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, LH

main61108-95416iYY61..LPG199406-199505

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61187-95400iLY5#,6#,YY5#,61198708-199505

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61188-95400iYY61..LPG199406-199505

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-199505

main61211-95404iLY50,6#,YY5#,61..TW198708-199505

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-199505

main61212-95404iLY50,6#,YY5#,61..TW198708-199505

61231RAIL, ROOF SIDE, INNER RH

main61203-95401iLY50,6#,YY5#,61..TW198708-199505

main61203-95402iLY5#,6#,YY5#,61..T2,T4198708-199505

main61231-95405iLY61..15T..WT1..IV198808-199109

main61231-95405iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-199505

61232RAIL, ROOF SIDE, INNER LH

main61204-95402iLY50,6#,YY5#,61..TW198708-199505

main61204-95403iLY5#,6#,YY5#,61..T2,T4198708-199505

main61232-95406iLY61..15T..WT1..IV198808-199505

main61232-95406iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-199505

61261CHANNEL, ROOF DRIP, RH

main61261-95407iLY5#,6#,YY5#,61198708-199505

61262CHANNEL, ROOF DRIP, LH

main61262-95407iLY5#,6#,YY5#,61198708-199505

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-95400iLY5#,61,YY5#,61..T1,T2,T3,T4198808-199505

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-95400iLY5#,61,YY5#,61..T1,T2,T3,T4198808-199505

61991APROTECTOR, FRONT PILLAR DOOR HINGE COVER, RH

main61991-37010iLY5#,61,YY5#,61199203-199505

main61991-95400iLY5#,6#,YY5#,61198708-199203

sub61991-37010

61992APROTECTOR, FRONT PILLAR DOOR HINGE COVER, LH

main61992-37010iYY61..LPG199406-199505

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-95401iLY61..15T..WT1..IV198808-199109

sub64015-95411

main64015-95401iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-199505

sub64015-95411

main64015-95411iLY61,YY61..WT2198708-199505

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-95401iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-199505

sub64016-95415

main64016-95401iLY61..15T..WT1..IV198808-199505

sub64016-95415

main64016-95415iLY5#,6#,YY5#,61..T2,T4198708-199505

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-37010iLY50,61,YY52,61..TW199309-199505

sub64103-37011

main64103-95403iLY5#,61,YY5#,61..T1,T2,T3,T4198808-199505

main64103-95408iLY50,60,YY5#,61..T1,T2,T3,T4198708-198808

sub64103-95403

sub61267-95400

main64103-95412iLY50,6#,YY51,61..TW198708-199309

sub64103-37080

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-37010iLY50,61,YY52,61..TW199309-199505

sub64104-37011

main64104-95403iLY5#,61,YY5#,61..T1,T2,T3,T4198808-199505

main64104-95410iLY50,60,YY5#,61..T1,T2,T3,T4198708-198808

sub64104-95403

sub61268-95400

main64104-95414iLY50,6#,YY51,61..TW198708-199309

sub64104-37080

64163ACOVER, BACK CORNER, INNER

main64163-95404iLY50,60,YY5#,61198708-198808

main64163-95410-06iLY5#,61,YY5#,61..DYN198808-199109

BROWN,TRIM4#

sub64163-95901

sub64163-95410

main64163-95410-13iLY5#,61,YY5#,61..TOY198808-199109

GRAY,TRIM8#

sub64163-95901

sub64163-95410

main64163-95410-13iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

sub64163-95901

sub64163-95410

9010906139

main90109-06139

9014980014

main90149-80014

9015960058

main90159-60058

9017908068

main90179-08068

9033335002

main90333-35002

9046710061

main90467-10061

9095001454

main90950-01454

9095006001

main90950-06001

9161160814

main91611-60814

37 parts on this diagram · 2 diagrams in section
