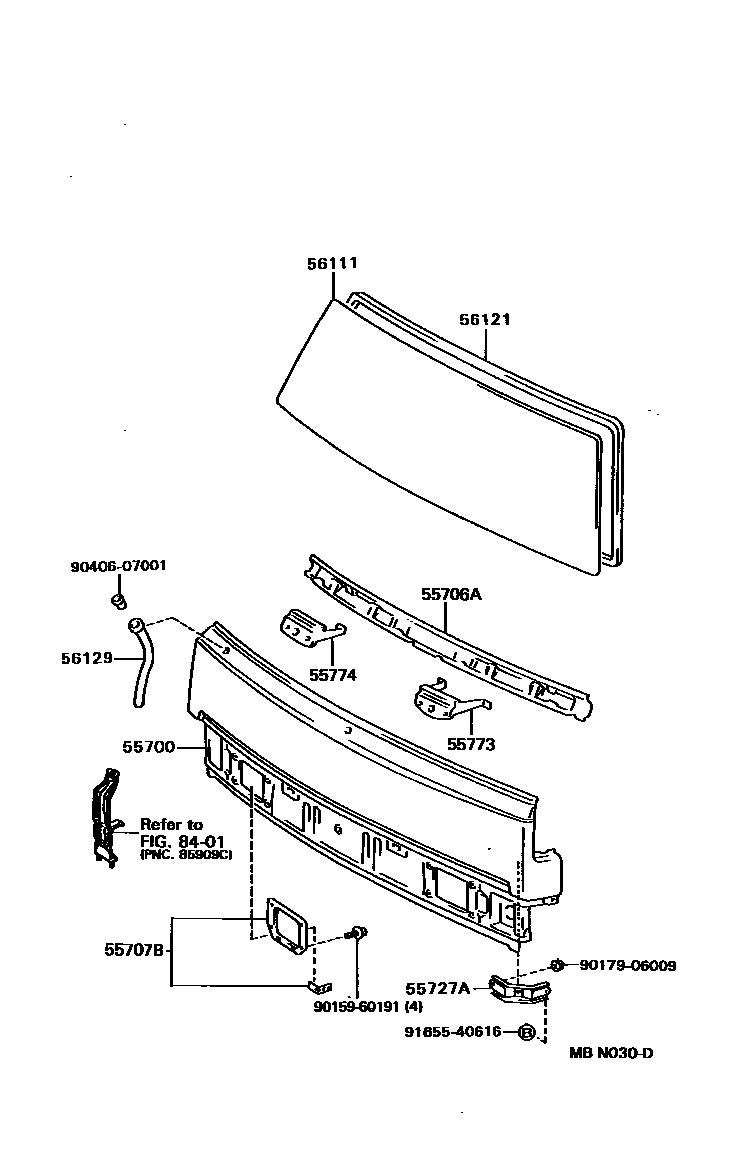

FRONT PANEL & WINDSHIELD GLASS

55700PANEL ASSY, FRONT

main55701-37010iYY61..LPG199406-199505

main55701-95443iLY5#,6#,YY5#,61198708-199210

main55701-95449iLY5#,61,YY5#,61199210-199505

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95405iLY5#,6#,YY5#,61198708-199505

55707BSHUTTER SUB-ASSY, FRONT AIR

main55707-95404iLY5#,6#,YY5#,61198708-199505

main55723-95404iYY61..LPG199406-199505

55727ARETAINER, FRONT PANEL UPPER REINFORCEMENT

main55727-37010iYY61..LPG199406-199505

55773RETAINER, WIPER SHAFT, CENTER

main55773-95406iLY5#,6#,YY5#,61198708-199505

55774RETAINER, WIPER SHAFT SIDE

main55774-95402iLY5#,6#,YY5#,61198708-199505

56111GLASS, WINDSHIELD

main56111-37010iLY5#,61,YY5#,61199109-199505

main56111-37020iLY5#,61,YY5#,61..T2,T4199109-199309

main56111-95416iLY5#,6#,YY5#,61198708-199109

sub56111-95417

56121WEATHERSTRIP, WINDSHIELD

main56121-95A06iLY5#,6#,YY5#,61198708-199505

56129HOSE, WINDSHIELD DRAIN

main56129-95400×2iLY5#,6#,YY5#,61198708-199505

sub56129-95J00

8401

9015960191

main90159-60191

9017906009

main90179-06009

9040607001

main90406-07001

9165540616

main91655-40616

14 parts on this diagram · 1 diagram in section
