FRAME

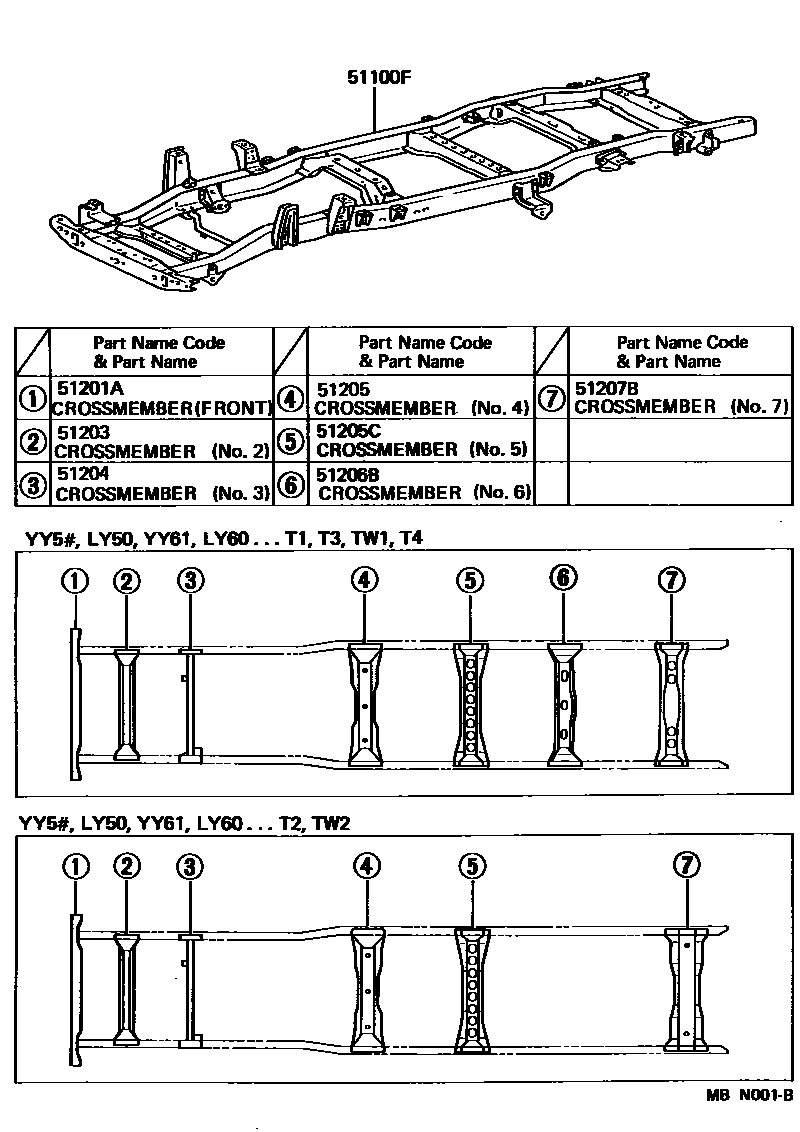

Parts diagram
51100FFRAME SUB-ASSY
main51002-25640i198708-199109
main51002-25641i199109-199505
main51002-25650i198708-199109
main51002-25651i199109-199505
main51002-25660i198708-199109
main51002-25661i199109-199505
main51002-25680i198708-199109
main51002-25681i199109-199505
main51002-25690i198708-199109
main51002-25691i199109-199505
main51002-25700i198708-198808
main51002-25700i198808-199109
main51002-25701i199109-199505
main51002-25710i198708-199109
main51002-25711i199109-199505
main51002-25730i198708-199109
main51002-25731i199109-199505
main51002-25740i198708-199109
main51002-25741i199109-199505
main51002-25760i198708-199109
main51002-25761i199109-199505
main51002-25770i198708-199109
main51002-25771i199109-199505
main51002-25780i198708-199109
main51002-25781i199109-199505
main51002-25800i198708-199109
main51002-25801i199109-199505
main51002-25810i198708-199109
main51002-25811i199109-199505
main51002-25850i199406-199505
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
main51211-25090i198708-199505
sub51211-25091
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
main51202-25130i198708-199505
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
main51203-25110i198708-198808
sub51203-25111
main51203-25111i198808-199505
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
main51204-25060i198708-199008
sub51204-25061
main51204-25061i199008-199505
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
main51205-25050i198708-199008
sub51205-25051
main51205-25051i199008-199505
51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6
main51206-25100i198708-199008
sub51206-25101
main51206-25101i199008-199505
sub51206-25111
main51206-25110i198708-199008
sub51206-25111
main51206-25111i199008-199505
51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7
main51206-25090i198708-199505
main51207-25050i198708-199505

8 parts on this diagram · 2 diagrams in section
