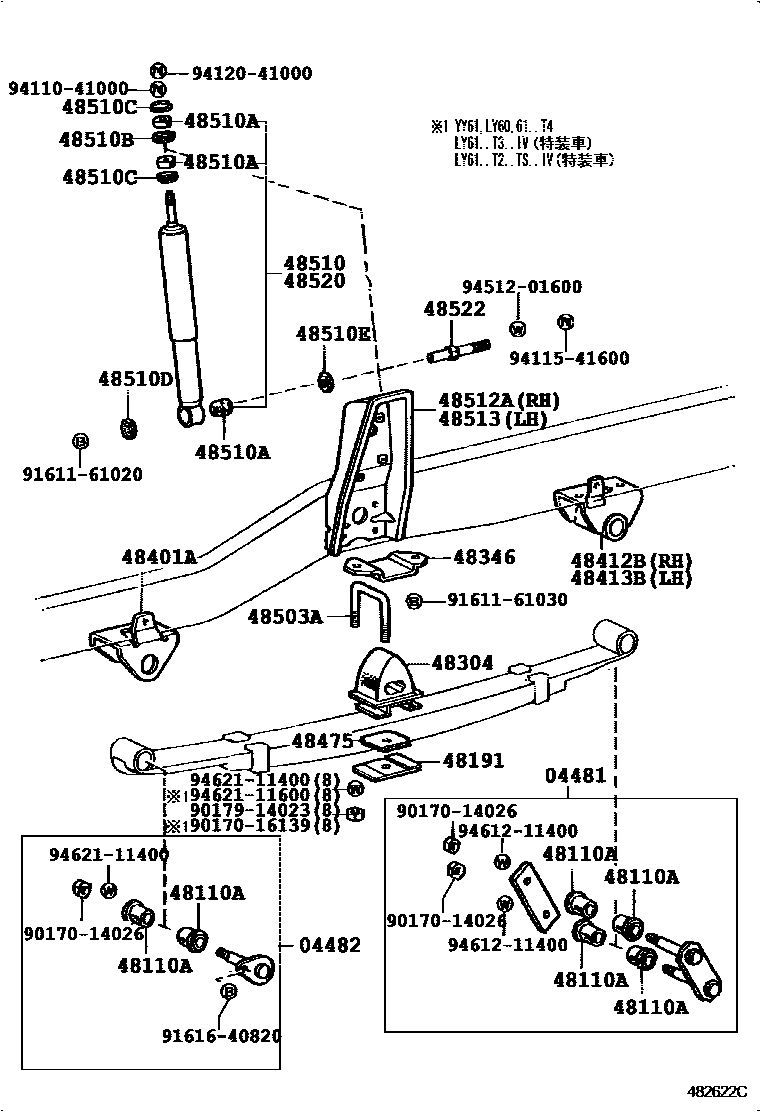

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

04481SHACKLE KIT, FRONT SPRING

main04481-25031iLY5#,6#,YY5#,61198708-199505

sub04481-25050

04482PIN KIT, FRONT SPRING

main04482-25011iLY5#,6#,YY5#,61198708-199505

sub04482-25020

48110SPRING ASSY, FRONT, RH

main48110-25460iYY61..ATM;YY5#..125..WT1;YY5#..(T1,T3)..125198708-199505

main48110-25480iYY5#..10T;LY50..125..WT1;LY50..(T1,T3)..125198708-199505

sub48110-2E050

main48110-25500iLY50..10T;YY61..ATM198708-199505

main48110-25520iYY52,61..15T..(ST,WT1)..CBR198708-199505

sub48110-2E020

main48110-25540iLY6#..T3;YY61..125;LY5#..15T;LY6#..15T..WT1198708-199505

sub48110-2E020

main48110-25560iLY6#..125198708-199505

sub48110-2E020

main48110-25581iLY6#,YY61..WT2198708-199505

main48110-25620iYY52,61..15T..WT1..IV198708-199109

main48110-25640iLY51..IV;LY50,6#..TS..15T..IV198708-199109

main48110-25660iLY6#..125..ST..IV198708-199109

main48110-25680iLY6#,YY61..WT2..IV198708-199109

main48110-25700iLY6#..TB..ST..IV198708-199109

main48110-25720iLY6#..T2..ST198708-199505

main48110-25740iLY50..T2..ST198708-199505

main48110-25760iYY5#..T2..ST198708-199505

main48110-25770iYY52,61..15T..WT1..CBR..IV199109-199505

main48110-25790iLY51..IV;LY61..TS..15T..IV199109-199505

main48110-25810iLY61..125..ST..IV199109-199505

main48110-25840iLY61,YY61..WT2..IV199109-199505

main48110-25850iLY61..TB..ST..IV199109-199505

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-18005iLY5#,6#,YY5#,61198708-199505

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-35020iLY5#,6#,YY5#,61198708-199505

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-36021iLY5#,6#,YY5#,61198708-199505

48346STOPPER, BUMPER, FRONT

main48346-25090iLY50,6#,YY5#..T1,T3;LY50,6#,YY5#..T2..WT1;LY51,YY61..15T..(ST,WT1)198708-199505

sub48346-25091

main48346-25140iLY61..TS..15T..IV199109-199505

TECS

sub48346-25141

main48346-25140iLY6#,YY61..WT2198708-199505

sub48346-25141

main48346-25150iLY50,6#,YY5#..T2..ST198708-199505

sub48346-25151

main48346-25160iLY50,6#,YY5#,61..TW198708-199505

sub48346-25161

48401ABRACKET SUB-ASSY, SPRING, NO.1

main48411-25051iLY6#..TS;LY6#..T3..TB;LY6#..TB..WT1;LY50,YY5#..WT1;LY51,YY61..ST,WT1;LY50,YY5#..T1,T3,TW198708-199505

main48411-25160iLY50,6#,YY5#,61..(T2,T4)..(ST,WT2)198708-199505

48412BBRACKET, SPRING, NO.2 RH

main48433-25060iLY5#,6#,YY5#,61198708-199505

sub48403-25010

48413BBRACKET, SPRING, NO.2 LH

main48434-25050iLY5#,6#,YY5#,61198708-199505

sub48043-25010

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iLY5#,6#,YY5#,61198708-199505

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90117-14045iLY51..IV;LY61..(T2,TW)..ST..IV;YY52,61..15T..WT1..CBR..IV199109-199505

main90117-14045iLY5#,6#,YY5#,61..ST,WT1198708-199505

main90117-14047iLY5#,6#,YY5#,61..ST,WT1198708-199505

main90117-14061iLY51..IV;LY61..(T2,TW)..ST..IV;YY52,61..15T..WT1..CBR..IV199109-199505

main90117-16020iLY61..TS..15T..IV;LY61,YY61..WT2..IV199109-199505

main90117-16020iLY6#,YY61..WT2198708-199505

main90117-16032iLY6#,YY61..WT2198708-199505

main90117-16093iLY61..TS..15T..IV;LY61,YY61..WT2..IV199109-199505

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-29125iLY6#..TS;LY6#..T3..TB;LY6#..TB..WT1;LY50,YY51..WT1;LY50,YY51..T1,T3,TW;LY51,YY52,61..ST,WT1198708-199103

sub48511-29126

main48511-29126iLY61..TS;LY61..T3..TB;LY61..TB..WT1;LY50,YY5#..WT1;LY51,YY61..ST,WT1;LY50,YY5#..T1,T3,TW199103-199505

sub48511-29127

main48511-29345iLY6#,YY61..WT2198708-199103

sub48511-29346

main48511-29346iLY61,YY61..WT2199103-199505

sub48511-29347

main48511-29355iLY50,6#,YY51..T2..ST198708-199103

sub48511-29356

main48511-29356iLY50,61,YY5#..T2..ST199103-199505

sub48511-29357

main48511-29665iLY51..IV;YY61..15T..WT1..IV;LY61,YY52..TS..15T..IV199109-199309

sub48511-29126

48510ACUSHION, FRONT SHOCK ABSORBER

main90385-16004iLY5#,6#,YY5#,61198708-199505

main90948-01003iLY5#,6#,YY5#,61198708-199505

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02017iLY5#,6#,YY5#,61198708-199505

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iLY5#,6#,YY5#,61198708-199505

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03007iLY5#,6#,YY5#,61198708-199505

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iLY5#,6#,YY5#,61198708-199505

48512ABRACKET, FRONT SHOCK ABSORBER, UPPER RH

main48512-25080iLY5#,6#,YY5#,61198708-199505

48513BRACKET, FRONT SHOCK ABSORBER, UPPER LH

main48512-25080iLY5#,6#,YY5#,61198708-199505

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-29125iLY6#..TS;LY6#..T3..TB;LY6#..TB..WT1;LY50,YY51..WT1;LY50,YY51..T1,T3,TW;LY51,YY52,61..ST,WT1198708-199103

sub48511-29126

main48511-29126iLY61..TS;LY61..T3..TB;LY61..TB..WT1;LY50,YY5#..WT1;LY51,YY61..ST,WT1;LY50,YY5#..T1,T3,TW199103-199505

sub48511-29127

main48511-29345iLY6#,YY61..WT2198708-199103

sub48511-29346

main48511-29346iLY61,YY61..WT2199103-199505

sub48511-29347

main48511-29355iLY50,6#,YY51..T2..ST198708-199103

sub48511-29356

main48511-29356iLY50,61,YY5#..T2..ST199103-199505

sub48511-29357

main48511-29665iLY51..IV;YY61..15T..WT1..IV;LY61,YY52..TS..15T..IV199109-199309

sub48511-29126

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25010iLY5#,6#,YY5#,61198708-199505

9017014026

main90170-14026

9017016139

main90170-16139

9017914023

main90179-14023

9161161020

main91611-61020

9161161030

main91611-61030

9161640820

main91616-40820

9411041000

main94110-41000

9411541600

main94115-41600

9412041000

main94120-41000

9451201600

main94512-01600

9461211400

main94612-11400

9462111400

main94621-11400

9462111600

main94621-11600

35 parts on this diagram · 2 diagrams in section
