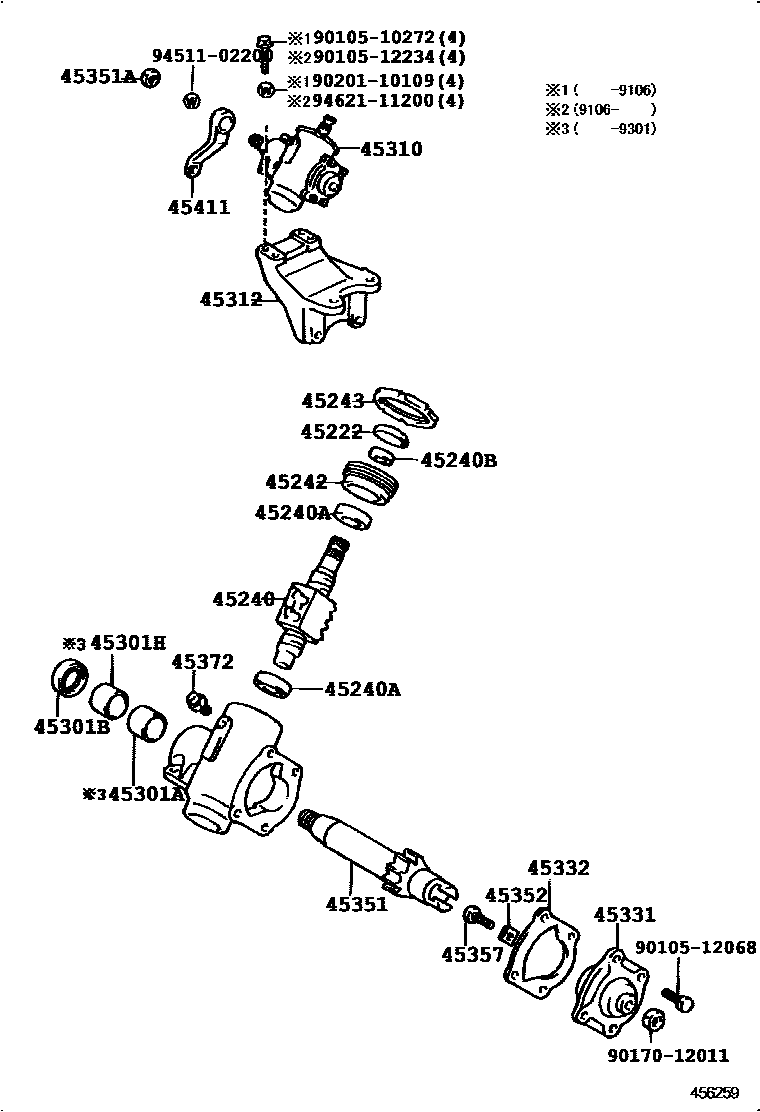

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

45222COVER, STEERING GEAR DUST

main45222-26010iLY5#,6#,YY5#,61198708-199309

45240WORM ASSY, STEERING

main45240-60030iLY5#,6#,YY5#,61198708-199309

45240ABEARING(FOR STEERING WORM)

main90363-20024×2iLY5#,6#,YY5#,61198708-199309

45240BSEAL, OIL(FOR STEERING WORM)

main90311-18010iLY5#,6#,YY5#,61198708-199309

45242SCREW, WORM BEARING ADJUSTING

main45242-25010iLY5#,6#,YY5#,61198708-199309

45243NUT, WORM BEARING ADJUSTING SCREW LOCK

main45243-60020iLY5#,61199309-199505

45301ABUSH OR BEARING, SECTOR SHAFT, NO.1

main90999-73061iLY5#,6#,YY5#,61198708-199301

45301BSEAL, OIL(FOR SECTOR SHAFT)

main90310-32005iLY50,60,YY5#,61198708-198801

main90311-32014iLY5#,6#,YY5#,61198801-199309

45301HBUSH OR BEARING, SECTOR SHAFT, NO.2

main90999-73061iLY5#,6#,YY5#,61198708-199301

45310HOUSING ASSY, STEERING GEAR

main45310-25060iLY5#,6#,YY5#,61198708-199109

sub90105-10354

sub94621-11200

main45310-25080iLY5#,61,YY5#,61199109-199309

45312BRACKET, STEERING GEAR HOUSING

main45312-25150iLY5#,6#,YY5#,61198708-199106

main45312-25170iLY5#,61,YY5#,61199106-199505

45331COVER, SECTOR SHAFT END

main45304-25020iLY5#,6#,YY5#,61198708-199309

45332GASKET, SECTOR SHAFT END COVER

main45332-26010iLY5#,61199309-199505

45351SHAFT, STEERING SECTOR

main45351-25020iLY5#,61199309-199505

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-22058iLY5#,6#,YY5#,61198708-199309

45352WASHER, SECTOR SHAFT THRUST

main45352-37010iLY5#,61199309-199505

main45353-37010iLY5#,6#,YY5#,61198708-199309

main45354-37010iLY5#,6#,YY5#,61198708-199309

45357SCREW, SECTOR SHAFT ADJUSTING

main45357-36010iLY5#,6#,YY5#,61198708-199109

sub45357-37020

main45357-60010iLY5#,61,YY5#,61199109-199505

45372PLUG, STEERING GEAR HOUSING OIL

main90930-03058iLY5#,61199309-199505

45411ARM, PITMAN

main45411-25191iLY50..125;LY61..T2..ST;LY51,61..WT1,WT2199309-199505

main45411-25201iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199109

main45411-25221iLY6#..T2..ST;LY50..TB..WT1;LY51,6#,YY52,61..WT1,WT2;LY50,YY51..TS..(125,15T)198708-199109

main45411-25231iLY61,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST199109-199505

9010510272

main90105-10272

9010512068

main90105-12068

9010512234

main90105-12234

9017012011

main90170-12011

9020110109

main90201-10109

9451102200

main94511-02200

9462111200

main94621-11200

26 parts on this diagram · 4 diagrams in section
