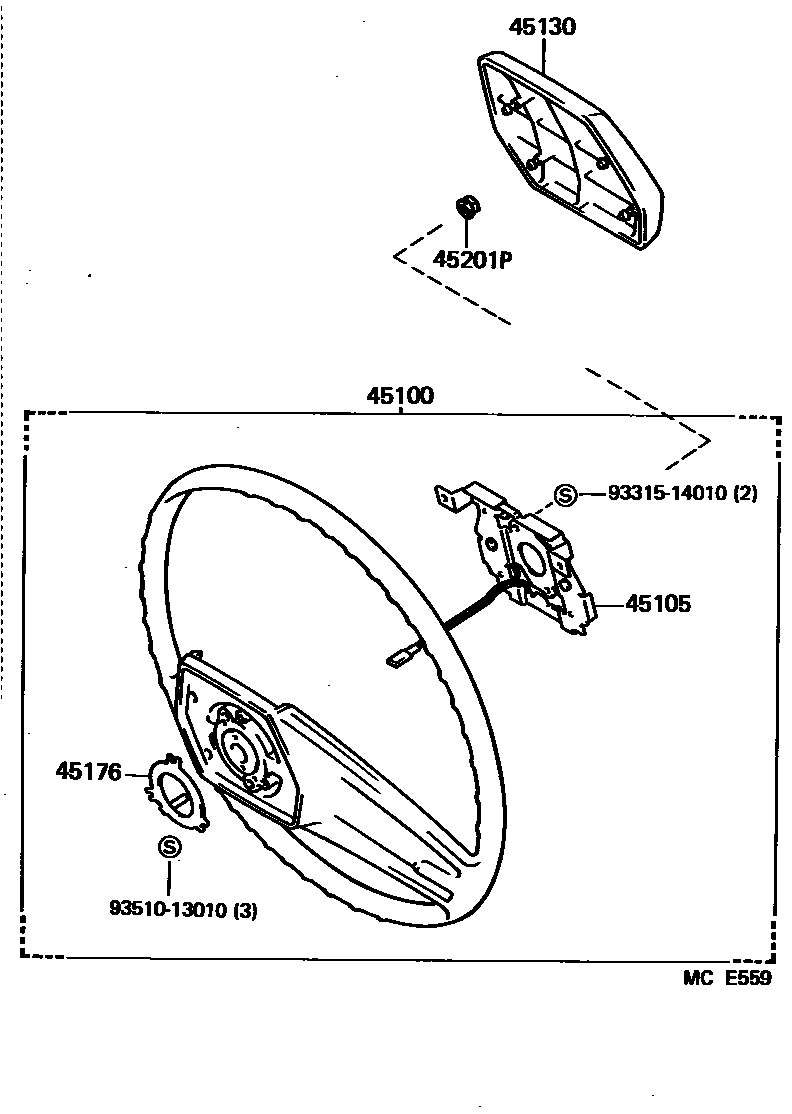

STEERING WHEEL

0001 1 0002 1��(���- �������) 0003 1���� ��� 0004 1

45100WHEEL ASSY, STEERING

main45100-26090-16iLY5#,6#,YY5#,61..DYN..(T2,T4)198708-199109

sub45100-26090

main45100-26090-24iLY5#,6#,YY5#,61..TOY..(T2,T4)198708-199109

sub45100-26090

main45100-26121-04iLY5#,6#,YY5#,61..TOY198708-199108

sub45100-26121

main45100-26121-06iLY5#,6#,YY5#,61..DYN198708-199108

sub45100-26121

main45100-36110-04iLY5#,6#,YY5#,61..TOY198708-199109

sub45100-36110

main45100-36110-06iLY5#,6#,YY5#,61..DYN198708-199109

sub45100-36110

main45100-36110-B0iLY5#,61,YY5#,61199109-199505

sub45100-36110

main45100-60130-B0iLY5#,61,YY5#,61199109-199505

sub45100-60130

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-26020iLY5#,6#,YY5#,61..T2,T4198708-199109

main45105-36010iLY5#,61199109-199505

main45105-36010iLY5#,6#,YY5#,61198708-199109

main45105-60040iLY5#,61,YY5#,61199109-199505

45130BUTTON ASSY, HORN

main45130-26070-14iLY5#,6#,YY5#,61..TOY..(T2,T4)198708-199109

sub45130-26070

main45130-26070-16iLY5#,6#,YY5#,61..DYN..(T2,T4)198708-199109

sub45130-26070

main45130-26110-04iLY5#,6#,YY5#,61..TOY198708-199108

sub45130-26110

main45130-26110-06iLY5#,6#,YY5#,61..DYN198708-199108

sub45130-26110

main45130-26230-B0iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

main45130-36100-04iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

sub45130-36100

sub45130-36090

main45130-36100-06iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

sub45130-36100

sub45130-36090

main45130-36100-B0iLY5#,61199109-199505

sub45130-36100

sub45130-36090

45176RING, HORN CONTACT

main45176-20030iLY5#,61,YY5#,61199109-199505

main45176-20030iLY5#,6#,YY5#,61..T2,T4198708-199109

main45176-30070iLY5#,6#,YY5#,61198708-199108

main45176-36010iLY5#,61199109-199505

main45176-36010iLY5#,6#,YY5#,61198708-199109

45201PNUT, STEERING WHEEL SET

main90179-12071iLY5#,61,YY5#,61199306-199505

main90179-12086iLY5#,6#,YY5#,61198708-199306

9331514010

main93315-14010

9351013010

main93510-13010

7 parts on this diagram · 4 diagrams in section
