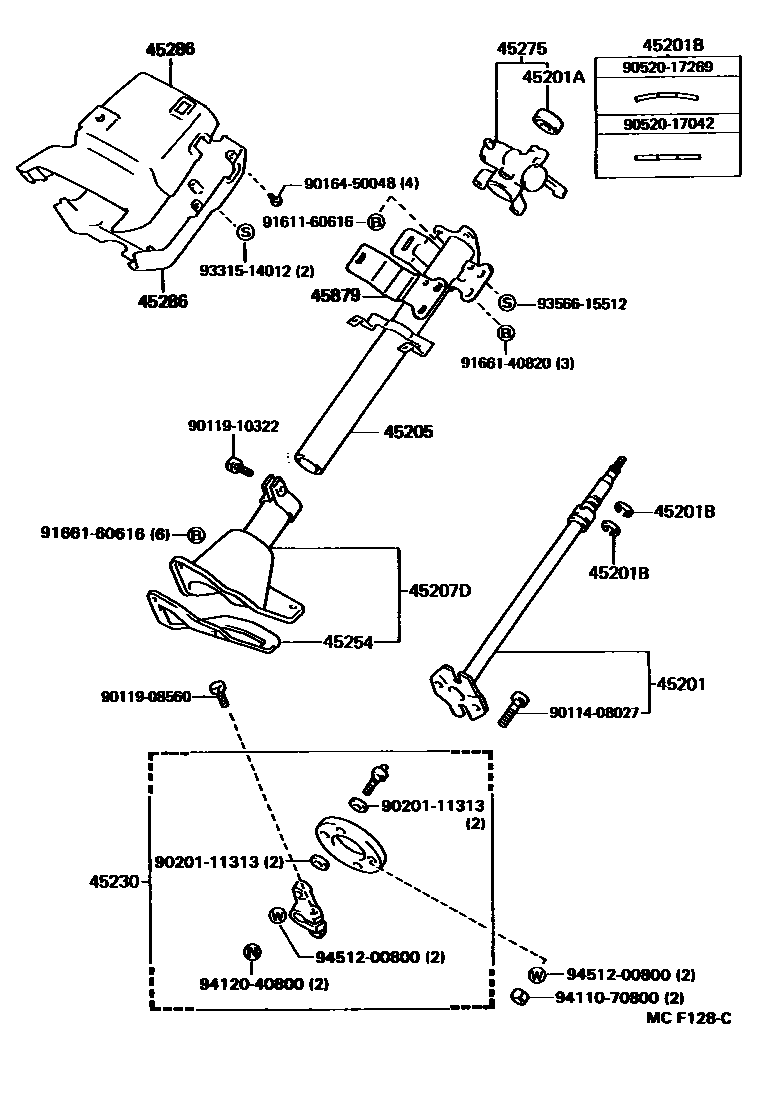

STEERING COLUMN & SHAFT

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-25090iLY5#,6#,YY5#,61198708-199209

main45201-26080iLY5#,61,YY5#,61199209-199505

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iLY5#,6#,YY5#,61..MTM198708-199505

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLY5#,6#,YY5#,61198708-199505

main90520-17269iLY5#,6#,YY5#,61198708-199505

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-25121iLY5#,6#,YY5#,61198708-199505

45207DCOVER SUB-ASSY, MAIN SHAFT JOINT

main45207-25021iLY5#,6#,YY5#,61198708-199303

sub45207-25022

main45207-25022iLY5#,61,YY5#,61199303-199505

45230COUPLING ASSY, FLEXIBLE

main45230-25011iLY5#,6#,YY5#,61198708-199209

main45230-25011iLY5#,61,YY5#,61198910-199109

main45230-25020iLY5#,61,YY5#,61199109-199209

main45230-25020iLY5#,61,YY5#,61198910-199109

main45230-25021iLY5#,61,YY5#,61199209-199407

sub45230-25022

main45230-25022iLY5#,61,YY52,61199407-199505

45254SHIELD, STEERING COLUMN HOLE

main45254-36090iLY5#,6#,YY5#,61198708-199505

45275BRACKET, STEERING COLUMN, UPPER

main45307-36150iLY5#,6#,YY5#,61198708-199109

sub45307-36171

main45307-36171iYY61..ATM199406-199505

main45307-36190iLY5#,61,YY5#,61..MTM199109-199505

sub45307-36171

45286COVER, STEERING COLUMN

main45286-25150-04iLY5#,61,YY5#,61..TOY198808-199109

sub45286-25150

main45286-25150-06iLY5#,61,YY5#,61..DYN198808-199109

sub45286-25150

main45286-25150-B0iLY5#,61,YY5#,61199109-199505

sub45286-25150

main45286-36680-04iLY50,60,YY5#,61..TOY198708-198808

sub45286-36680

main45286-36680-06iLY50,60,YY5#,61..DYN198708-198808

sub45286-36680

main45286-36770-04iLY5#,6#..TOY..15T..IV198708-199109

sub45286-36770

sub45286-36790

main45286-36770-06iLY5#,6#..DYN..15T..IV198708-199109

sub45286-36770

sub45286-36790

main45286-36770-B0iLY51..IV;LY61..(T2,T4)..IV199109-199505

sub45286-36770

sub45286-36790

main45287-36270-04iLY5#,6#,YY5#,61..TOY198708-199109

sub45287-36270

main45287-36270-06iLY5#,6#,YY5#,61..DYN198708-199109

sub45287-36270

main45287-36270-B0iLY5#,61,YY5#,61199109-199505

sub45287-36270

main45287-36330-04iLY5#,6#..TOY..15T..IV198708-199109

sub45287-36330

main45287-36330-06iLY5#,6#..DYN..15T..IV198708-199109

sub45287-36330

main45287-36330-B0iLY51,61..15T..IV199109-199505

sub45287-36330

45879BRACKET, STEERING COLUMN UPPER SUPPORT, NO.2

main45879-25011iLY5#,6#,YY5#,61198708-199505

9011408027

main90114-08027

9011908560

main90119-08560

9011910322

main90119-10322

9016450048

main90164-50048

9020111313

main90201-11313

9052017042

main90520-17042

9052017269

main90520-17269

9161160616

main91611-60616

9166140820

main91661-40820

9166160616

main91661-60616

9331514012

main93315-14012

9356615512

main93566-15512

9411070800

main94110-70800

9412040800

main94120-40800

9451200800

main94512-00800

25 parts on this diagram · 1 diagram in section
