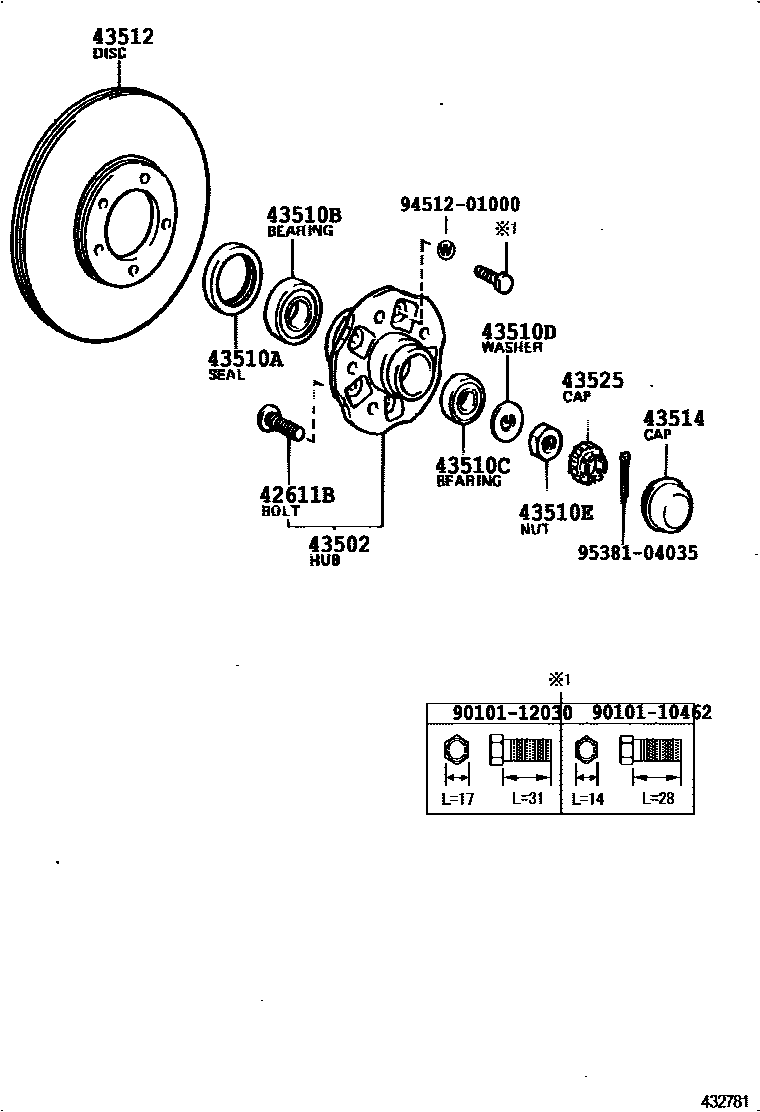

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iLY6#..T2..ST;LY51,6#,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T)198708-199505

main90942-02058iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199505

sub90942-02112

main90942-02058iLY5#..T2199109-199505

sub90942-02112

main90942-02061iLY6#,YY61..WT2198708-199505

main90942-02062iLY6#,YY61..WT2198708-199505

43502HUB SUB-ASSY, FRONT AXLE

main43501-25010iLY6#,YY61..WT2198708-199505

sub43501-37020

main43502-25010iLY6#..T2..ST;LY51,6#,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T)198708-199505

sub43502-29065

main43502-25020iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199505

sub43502-29075

main43502-25020iLY5#..T2199109-199505

sub43502-29075

main43502-25030iLY6#,YY61..WT2198708-199505

sub43502-37020

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50003iLY5#,6#,YY5#,61..ST,WT1198708-199505

main90311-68001iLY6#,YY61..WT2198708-199505

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90366-35004iLY5#,6#,YY5#,61..ST,WT1198708-199505

main90368-42045iLY6#,YY61..WT2198708-199505

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-22007iLY5#,6#,YY5#,61..ST,WT1198708-199505

sub90366-22002

main90368-28001iLY6#,YY61..WT2198708-199505

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-23004iLY5#,6#,YY5#,61..ST,WT1198708-199505

main90214-27001iLY6#,YY61..WT2198708-199505

43510ENUT (FOR STEERING KNUCKLE)

main90170-22003iLY5#,6#,YY5#,61..ST,WT1198708-199505

main90170-26001iLY6#,YY61..WT2198708-199505

43512DISC, FRONT

main43512-25020iLY5#,6#,YY5#,61..ST,WT1198708-199505

main43512-25050iLY6#,YY61..WT2198708-199505

43514CAP, FRONT HUB GREASE

main43514-25010iLY5#,6#,YY5#,61..ST,WT1198708-199505

main43514-36030iLY6#,YY61..WT2198708-199505

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-25010iLY5#,6#,YY5#,61..ST,WT1198708-199505

main43525-36010iLY6#,YY61..WT2198708-199505

9010110462

main90101-10462

9010112030

main90101-12030

9451201000

main94512-01000

9538104035

main95381-04035

14 parts on this diagram · 1 diagram in section
