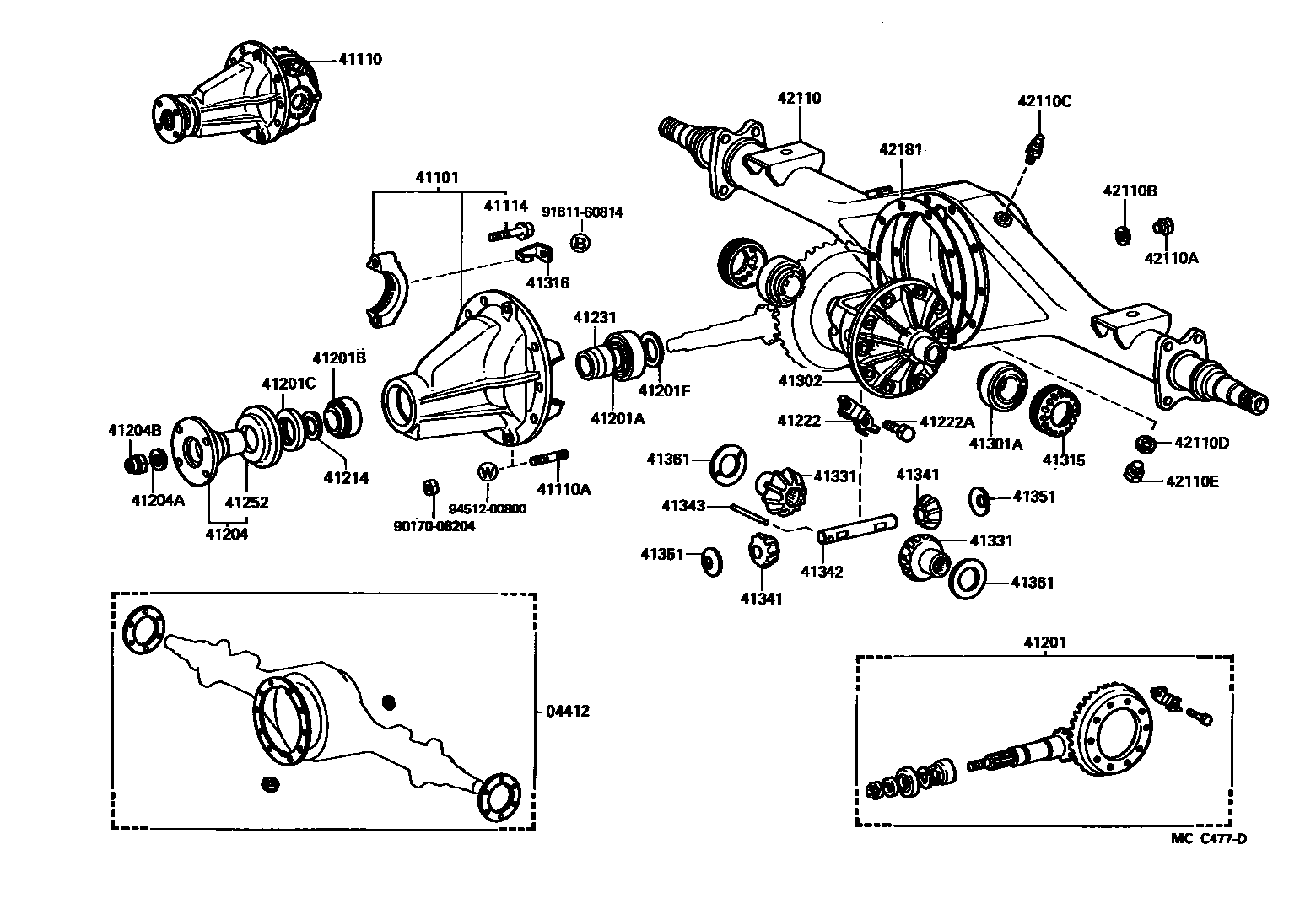

REAR AXLE HOUSING & DIFFERENTIAL

0001 18��� ���������� 0002 19.5��� ���������� 0003 110.5��� ����������

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-25050iLY6#,YY61..WT2198708-199302

sub04412-25051

main04412-25051iLY61,YY61..WT2199302-199505

main04412-25060iLY50,YY51..(T1,T3)..125198708-198808

main04412-26010iLY50,YY5#..T2..ST198708-199505

main04412-26050iYY5#..(T1,T3)..125198808-199505

main04412-26060iYY5#..10T198808-199505

main04412-35040iLY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST198708-199505

main04412-35060iLY5#,6#,YY5#,61..WT1198708-199505

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35012iYY51..10T198708-198808

sub41101-35013

main41101-35030iLY50..TB..WT1;LY60,YY5#,61..WT1;LY50..TS..(125,15T)198708-198905

sub41101-35031

sub90116-08329

main41101-35031iYY52..T2;LY50..125;YY51,61..WT1198905-199505

main41101-35040iYY51..125..ST198708-198905

sub41101-35041

sub90116-08329

main41101-35041iYY51..125..ST;YY52..(T1,T3,TW)..TS198905-199505

main41101-35070iLY51,61..WT1198808-198905

sub41101-35071

sub90116-08329

sub90116-08334

main41101-35071iLY51,61..WT1198905-199505

sub41101-35170

main41101-36030iLY6#,YY61..WT2198708-199505

sub41101-37010

main41101-60040iLY6#..T2..ST198708-198911

sub41101-60041

sub90949-01692

main41101-60060iLY50,YY51..10T198808-198905

sub41101-60061

sub90116-08329

sub90116-08334

main41101-60061iLY50,YY51..10T198905-199505

sub41101-60160

main41101-60070iLY50..(10T,15T)..ST;LY60,YY52,61..(T3,TW)..ST198708-198911

sub41101-60071

main41101-60071iLY51,61,YY52,61..(T3,TW)..ST198911-199005

main41101-60100iLY61..T2..ST198911-199505

sub41101-60180

main41101-60130iYY52..15T..ST;LY51,61,YY61..(T3,TW)..ST199005-199505

sub41101-25020

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-25082iLY50..T2..ST;LY50..15T..WT1;LY60,YY52,61..WT1198708-198905

sub41110-25083

sub90116-08329

sub90116-08334

main41110-25083iLY50..T2..ST;YY52..15T..WT1;YY61..MTM..WT1198905-199505

sub41110-35411

main41110-25102iLY50,YY52..15T..ST;LY60,YY61..(T3,TW)..ST198708-199505

sub41110-25103

main41110-25130iLY50..125..WT1198708-198905

sub41110-25131

sub90116-08329

sub90116-08334

main41110-25131iLY50..WT1198905-199505

sub41110-35481

main41110-25140iYY51..T1,T3198708-198905

sub41110-25141

sub90116-08329

sub90116-08334

main41110-25141iYY51..T1,T3198905-199309

main41110-25160iLY51,61..(T3,TW)..ST198708-199505

sub41110-25161

main41110-25170iYY51..10T198708-198808

main41110-25180iLY6#..T2..ST198708-199505

sub41110-25181

main41110-25190iLY51,61..WT1198808-198905

sub41110-25191

sub90116-08329

sub90116-08334

main41110-25191iLY51,61..WT1198905-199505

sub41110-35870

main41110-25200iYY51..10T198808-198905

sub41110-25201

sub90116-08329

sub90116-08334

main41110-25201iYY51..10T198905-199309

main41110-35045iYY52..(T1,T3,TW)..TS199309-199505

main41110-35084iYY51..T2..ST198905-199309

sub41110-35085

main41110-35181iYY51..WT1;LY50..(T1,T3)..125198708-198905

sub41110-35221

main41110-35191iYY51..T2..ST198708-198905

sub41110-35083

main41110-35212iYY61..ATM;YY52..125..WT1199309-199505

sub41110-35213

main41110-35222iYY51..WT1;LY50..T1,T3;YY52..T2..ST198905-199505

sub41110-3D260

main41110-36381iLY6#,YY61..WT2198708-199505

sub41110-37080

main41110-60170iLY50..10T198808-198905

sub41110-60171

sub90116-08329

sub90116-08334

main41110-60171iLY50..10T198905-199003

sub41110-60380

main41110-60380iLY50..10T199003-199505

sub41110-60690

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08179iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-198808

main90116-08180iLY50,YY51;LY51,61,YY52,61..WT1198708-198908

main90116-08285iLY50,YY51;LY51,61,YY52,61..WT1198808-198908

main90116-08329iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198908-199505

main90116-08334iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198908-199505

main90116-10074iYY52..15T..ST;LY51,61,YY61..ST198708-199505

main90116-10075iYY52..15T..ST;LY51,61,YY61..ST198708-199505

main90116-10076iYY52..15T..ST;LY51,61,YY61..ST198708-199505

main90116-10082iLY6#,YY61..WT2198708-199505

main90119-10283iLY6#,YY61..WT2198708-199505

sub90119-10069

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iLY5#,6#,YY5#,61..ST,WT1198708-199505

main90105-16022iLY6#,YY61..WT2198708-199505

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29436iLY6#,YY61..WT2198708-199505

sub41201-29437

main41201-29557iLY50,YY52..15T..ST;LY60,YY61..(T3,TW)..ST198708-199505

sub41201-29558

sub41204-35040

sub41214-26011

main41201-29665iYY51..T1,T3198708-199309

sub41201-29666

sub41204-35081

sub41214-26011

main41201-29675iLY51,61..WT1;LY50..125..WT1198708-199505

sub41201-29655

main41201-29686iLY50..10T198708-199505

sub41201-29687

sub41204-35081

sub41214-26011

main41201-29705iYY51..10T198708-198808

sub41201-29706

sub41204-35040

sub41214-26011

main41201-29775iLY50..T2..ST;LY50,YY52..15T..WT1;LY60,YY61..MTM..WT1198708-199505

sub41201-29517

sub41204-35081

sub41214-26011

main41201-29795iYY61..ATM;YY52..125..WT1199309-199505

sub41201-29796

sub41204-35081

sub41214-26011

main41201-29805iYY51..WT1;YY52..T2..ST;LY50..(T1,T3)..125198708-199505

sub41201-29537

sub41204-35081

sub41214-26011

main41201-29815iYY51..T2..ST198708-199003

sub41201-29816

main41201-29816iYY51..T2..ST199003-199309

sub41201-29817

sub41204-35081

sub41214-26011

main41201-29825iYY52..(T1,T3,TW)..TS199309-199505

sub41201-29826

sub41204-35081

sub41214-26011

main41201-69166iLY6#..T2..ST198708-199505

sub41201-69167

sub41204-35081

sub41204-35100

sub41214-26011

main41201-69285iLY50..10T199003-199505

sub41201-80183

sub41204-35081

sub41214-26011

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35028iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

sub90366-35087

main90366-35044iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

main90366-40001iLY6#,YY61..WT2198708-199505

sub90366-40100

main90366-40004iLY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST198708-198911

sub90366-40059

main90366-40059iYY52..15T..ST;LY51,61,YY61..ST198911-199505

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30011iLY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST198708-198911

main90366-30022iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

sub90366-30078

main90366-30025iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

sub90366-30067

main90366-30038iYY52..15T..ST;LY51,61,YY61..ST198911-199505

main90366-35023iLY6#,YY61..WT2198708-199505

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38035iYY52..15T..ST;LY51,61,YY61..ST198911-199505

sub90311-38047

main90311-38133iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

sub90311-38047

main90311-38134iLY51,61,YY52,61..ST198708-198911

sub90311-38047

main90311-48135iLY6#,YY61..WT2198708-199505

sub90311-48019

41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)

main90201-35497iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main90201-35498iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main90201-35499iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

main90201-35500iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main90201-35501iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main90201-35502iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

main90201-35503iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

main90201-35504iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

main90201-35505iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

main90201-35506iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

main90201-35507iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main90201-35508iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main90201-35509iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

main90201-35510iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

main90201-35511iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

main90201-35512iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main90201-35513iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main90201-35514iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

main90201-35515iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main90201-35516iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

main90201-35517iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main90201-35518iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1198708-199505

main90201-40551iYY52..15T..ST;LY51,61,YY61..ST,WT2198708-199505

sub90564-40004

main90201-40552iYY52..15T..ST;LY51,61,YY61..ST,WT2198708-199505

sub90564-40007

main90201-40553iYY52..15T..ST;LY51,61,YY61..ST,WT2198708-199505

sub90564-40009

main90201-40554iYY52..15T..ST;LY51,61,YY61..ST,WT2198708-199505

sub90564-40011

main90201-40555iYY52..15T..ST;LY51,61,YY61..ST,WT2198708-199505

sub90564-40013

main90201-40556iLY60,YY52,61..ST,WT2;LY50,YY51..(10T,15T)..ST198708-199505

sub90564-40015

main90201-40557iLY60,YY52,61..ST,WT2;LY50,YY51..(10T,15T)..ST198708-199505

sub90564-40017

main90201-40558iLY60,YY52,61..ST,WT2;LY50,YY51..(10T,15T)..ST198708-199505

sub90564-40019

main90201-40559iYY52..15T..ST;LY51,61,YY61..ST,WT2198708-199505

sub90564-40021

main90201-40560iYY52..15T..ST;LY51,61,YY61..ST,WT2198708-199505

sub90564-40023

main90201-40561iLY60,YY52,61..ST,WT2;LY50,YY51..(10T,15T)..ST198708-199505

sub90564-40025

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35040iLY5#,6#,YY5#,61..ST,WT1198708-199505

main41204-36050iLY6#,YY61..WT2198708-199505

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-20005iYY52..125..WT1;YY52..(T1,T3,TW)..TS198708-199505

main90201-22007iYY52..15T..ST;LY51,61,YY61..ST198708-199505

main90201-23002iLY6#,YY61..WT2198708-199505

41204BNUT (FOR REAR DRIVE PINION)

main90179-20001iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199308

main90179-20018iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1199308-199505

main90179-22003iLY6#,YY61..WT2198708-199505

main90179-22011iLY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST198708-199505

sub90179-22016

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iLY5#,6#,YY5#,61..ST,WT1198708-199505

main41214-36030iLY6#,YY61..WT2198708-199505

sub41214-37010

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main41222-36020iLY6#,YY61..WT2198708-199505

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main41226-35010iYY52..15T..ST;LY51,61,YY61..ST198708-199505

main90101-11353iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main90101-14315iLY6#,YY61..WT2198708-199505

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

main41231-36040iLY6#,YY61..WT2198708-199505

main41231-40011iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

main41231-60020iLY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST198708-198911

main41231-60030iYY52..15T..ST;LY51,61,YY61..ST198911-199505

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35010iLY5#,6#,YY5#,61..ST,WT1198708-199303

sub41252-35020

main41252-35020iLY5#,61,YY5#,61..ST,WT1199303-199505

main41252-36010iLY6#,YY61..WT2198708-199505

sub41252-37020

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

main90368-45066iLY51,61,YY52,61..ST198708-199505

main90368-50024iYY52..15T..ST;LY51,61,YY61..ST198911-199505

main90368-52043iLY6#,YY61..WT2198708-199505

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iLY6#,YY61..WT2198708-199505

main41302-35020iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

sub41302-26010

main41311-36010iLY51,61,YY52,61..ST198708-198911

sub41311-60070

sub41343-60030

sub90368-50024

main41311-40020iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

sub41311-40021

sub90105-11063

main41311-60070iYY52..15T..ST;LY51,61,YY61..ST198911-199505

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iLY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST198708-199505

main41315-35010iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

main41315-35020iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

main41315-36011iLY6#,YY61..WT2198708-199505

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iYY52..15T..ST;LY51,61,YY61..ST198708-199505

main41316-35010iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

main41316-36011iLY6#,YY61..WT2198708-199505

SINGLE TYPE

main41317-36011iLY6#,YY61..WT2198708-199505

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-25010iYY52..15T..ST;LY51,61,YY61..ST198808-199505

main41331-35011iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

main41331-35020iLY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST198708-198808

main41331-35040iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

sub41039-34060

sub41039-34080

main41331-36020iLY6#,YY61..WT2198708-199505

41341PINION, REAR DIFFERENTIAL

main41341-25010iYY52..15T..ST;LY51,61,YY61..ST198808-199505

main41341-30020iLY61..WT1;LY5#..(T2,TW)..(10T,15T)199408-199505

sub41341-30050

main41341-35010iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199408

sub41341-14041

main41341-35020iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

main41341-55012iLY6#,YY61..WT2198708-199505

sub41341-55013

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

main41342-55010iLY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST198708-199505

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main41343-55010iLY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST198708-198911

main41343-60030iYY52..15T..ST;LY51,61,YY61..ST198911-199505

main90250-06085iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-25010iYY52..15T..ST;LY51,61,YY61..ST198808-199505

main41351-30052iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

main41351-30060iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

main41351-35011iLY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST198708-198808

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-24010iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

sub41361-60E10

main41361-24020iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

sub41361-60E50

main41361-24030iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

sub41361-60E90

main41361-24040iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

sub41361-60F30

main41361-24050iLY61..WT1;LY5#,YY51..(T2,TW)..(10T,15T)198808-199505

sub41361-60F70

main41361-40021iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

main41361-60010iYY52..15T..ST;LY51,61,YY61..ST,WT2198708-199505

sub41361-60011

main41361-60020iLY60,YY52,61..ST,WT2;LY50,YY51..(10T,15T)..ST198708-199505

sub41361-60021

main41361-60030iYY52..15T..ST;LY51,61,YY61..ST,WT2198708-199505

sub41361-60031

main41361-60040iLY60,YY52,61..ST,WT2;LY50,YY51..(10T,15T)..ST198708-199505

sub41361-60041

main41362-40021iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

main41363-40021iYY52..TS;LY60,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY51..TS..(125,15T)198708-199505

42110HOUSING ASSY, REAR AXLE

main42110-25230iLY50,YY5#..(T1,T3,TW)..TS198708-199505

main42110-25240iLY50,YY5#..T2..ST198708-199505

sub42110-25241

main42110-25250iLY60,YY61..(T3,TW)..ST;LY50,YY5#..(10T,15T)..ST198708-199505

main42110-25260iLY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1198708-199505

main42110-25270iYY61..ATM;LY50,YY5#..125..WT1198708-199505

main42110-25280iLY6#,YY61..WT2198708-199505

sub42110-25919

main42110-25310iLY6#..T2..ST198708-199505

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iLY5#,6#,YY5#,61198708-199505

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iLY5#,6#,YY5#,61198708-199505

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iLY5#,6#,YY5#,61198708-199505

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iLY5#,6#,YY5#,61198708-199505

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18040iLY50,YY5#..TS;YY52..TB..WT1;LY51,61,YY61..WT1199110-199505

main90341-18057iLY5#,6#,YY5#,61198708-199505

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-36010iLY51,61,YY52,61..ST198708-199010

sub42181-60060

main42181-36030iLY6#,YY61..WT2198708-199505

sub42181-36060

main42181-60020iLY50..TB..WT1;LY60,YY52,61..WT1;LY50,YY51..TS..(125,15T)198708-199505

main42181-60060iYY52..15T..ST;LY51,61,YY61..ST199010-199505

9017008204

main90170-08204

9161160814

main91611-60814

9451200800

main94512-00800

38 parts on this diagram · 3 diagrams in section
