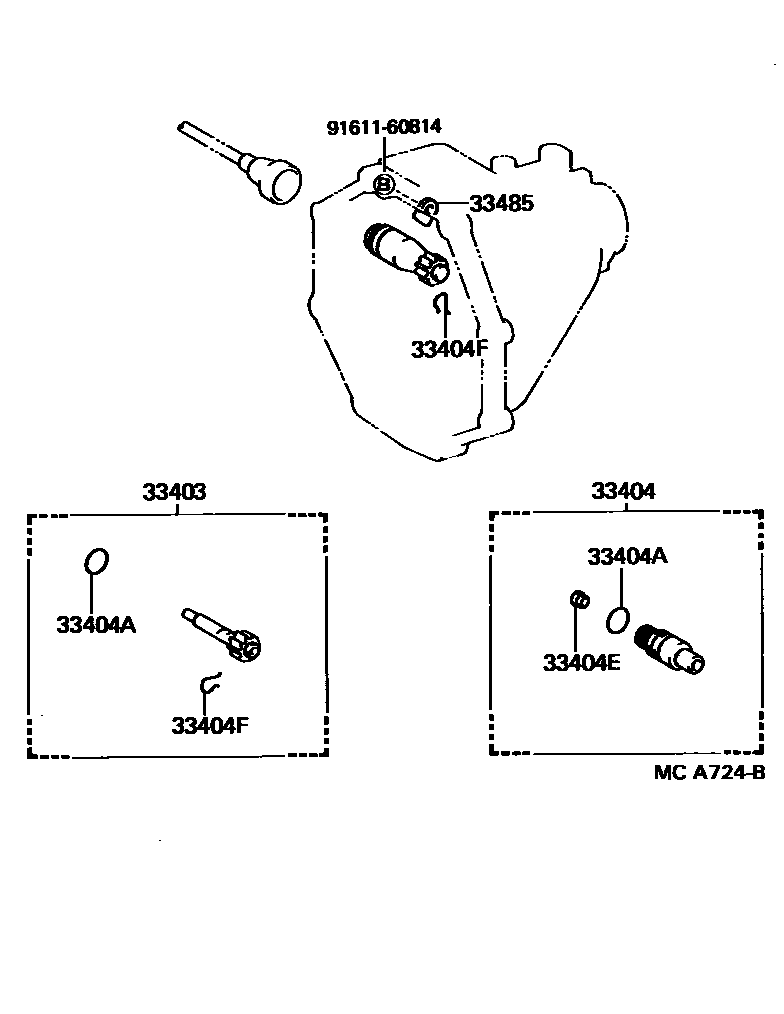

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29135iLY50,60..(T2,TW)..(10T,15T)..ST198708-199505

main33403-29175iLY60..TS;LY60..T3..TB;LY60..TB..WT1;LY50,YY52..15T;YY61..MTM..(ST,WT1)198708-199505

main33403-29185iLY6#,YY61..WT2198708-199505

main33403-29205iYY51..10T198708-198808

main33403-29255iLY51,61..WT1198808-199505

main33482-29045iYY51..10T;YY52..(T1,T3)..125198808-199505

main33482-29045iYY52..125..WT1199309-199505

main33482-39035iLY50..(T1,T3)..125198708-199505

main33482-39045iLY50..125198708-199505

main33482-39085iYY52..10T199309-199505

main33482-39095iYY52..(T1,T3)..125199309-199505

main33482-39095iYY51..WT1;YY51..T1,T3;YY52..T2..125198708-199505

main33482-39105iYY51..T1,T3198708-199309

main33482-39105iYY51..T2..ST198708-199309

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iYY52..15T;LY51,61,YY61..MTM198708-199505

main33404-35010iLY50,YY51..125198708-199505

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLY50,YY5#..10T,125198708-199505

main96711-24030iLY60,YY61;LY50,YY5#..10T,15T198708-199505

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLY5#,6#,YY5#,61..MTM198708-199505

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLY5#,6#,YY5#,61..MTM198708-199505

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLY5#,6#,YY5#,61..MTM198708-199505

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
