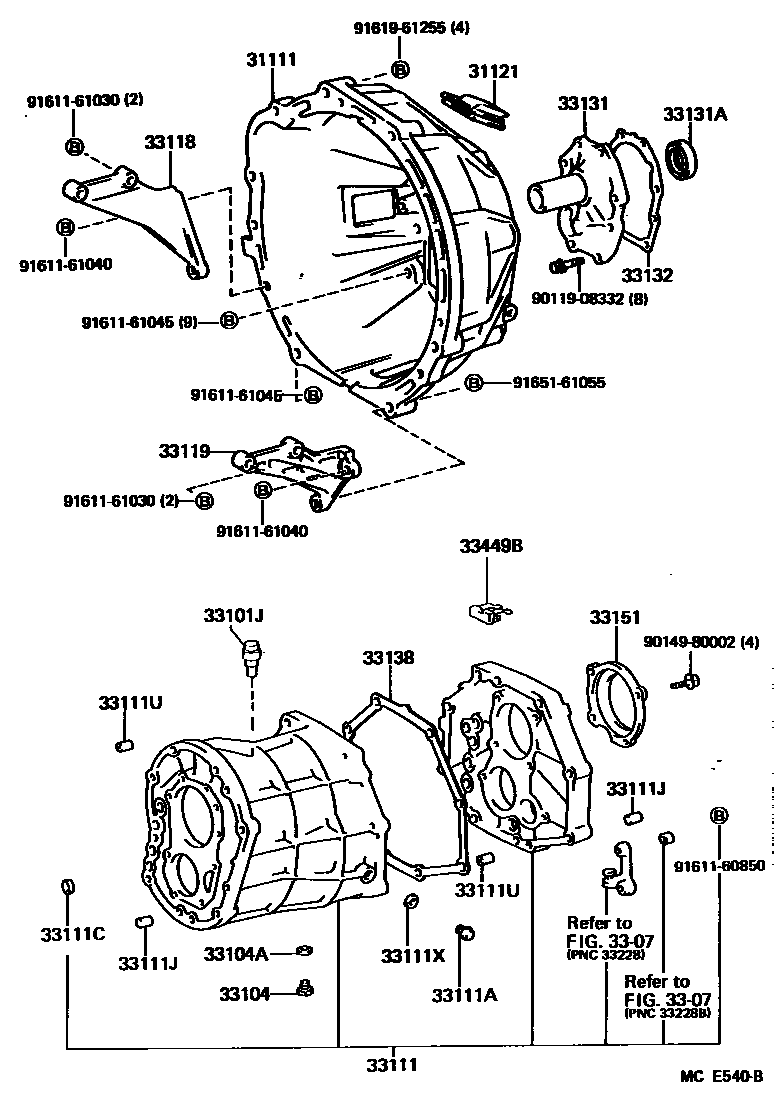

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G5# 0003 1G5# 0005 1R45# 0006 1R45#

31111HOUSING, CLUTCH

main31111-22111iLY50..125198708-198808

sub31111-22112

main31111-22112iLY50198808-198912

sub31111-22113

main31111-22113iLY50198912-199006

sub31111-22114

main31111-22114iLY50199006-199505

main31111-25030iLY60;LY50..10T,15T198708-199505

main31111-25040iYY61..WT2198708-199505

main31111-30190iYY5#..10T,125198708-199505

31121COVER, CLUTCH HOUSING, NO.1

main31121-30040iYY51..125198708-199309

sub31121-35020

main31121-35020iYY52..10T,125199309-199505

3307

33101JPLUG, BREATHER

main90930-03085iLY5#,61,YY5#,61..MTM198708-199505

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLY60,YY61;LY50,YY5#..10T,15T198708-199505

main90341-18057iLY50,YY5#..10T,125198708-199503

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLY5#,6#,YY5#,61198708-199505

33111CASE, MANUAL TRANSMISSION

main33101-25010iLY60,YY61;LY50,YY5#..10T,15T198708-199405

sub33101-25H01

sub33101-25H02

main33101-25020iYY52..15T;LY51,61,YY61..MTM199405-199505

sub33101-25021

main33101-26900iLY50,YY51..125198708-198808

sub33101-28020

main33101-28020iLY50,YY5#..10T,125198808-199505

sub33101-35060

sub90341-18032

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iLY5#,61,YY5#,61..MTM198708-199505

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLY5#,6#,YY5#,61198708-199505

main96411-41800iYY52..15T;LY51,61,YY61..MTM199405-199505

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLY51,61;YY61..WT2198708-199505

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iYY61..WT2;LY5#,61,YY51198708-199505

main90253-15001iLY60,YY61;LY50,YY5#..10T,15T198708-199505

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iLY5#,6#,YY5#,61198708-199505

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLY5#,6#198708-199505

main33118-36031iYY52..15T;YY51,61..MTM198708-199505

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLY5#,6#198708-199505

main33119-36030iYY52..15T;YY51,61..MTM198708-199505

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLY50,YY5#..10T,125198708-199505

main33131-35030iLY51,61,YY52,61198708-199008

sub33131-35031

main33131-35031iLY51,61,YY52,61199008-199505

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iLY50,YY51198808-199007

sub90311-30014

main90311-30014iLY50,YY5#..10T,125199007-199505

main90311-30115iLY50,YY51..125198708-198808

main90311-32012iLY51,61;YY61..WT2198708-199505

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLY50,YY51..125198708-199505

33138GASKET, INTERMEDIATE PLATE

main33138-28010iLY50,YY51..125198708-198808

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-28010iLY50,YY51..125198708-198808

main33151-35020iLY51,61,YY52,61198708-199505

main33151-35030iLY50,YY5#..10T,125198808-199505

33449BMAGNET, TRANSMISSION

main33449-26010iLY50,YY5#..10T,125198908-199505

main33449-35010iLY60,YY61;LY50,YY5#..10T,15T198708-199405

main33449-35030iYY52..15T;LY51,61,YY61..MTM199405-199505

9011908332

main90119-08332

9014980002

main90149-80002

9161160850

main91611-60850

9161161030

main91611-61030

9161161040

main91611-61040

9161161045

main91611-61045

9161961255

main91619-61255

9165161055

main91651-61055

28 parts on this diagram · 4 diagrams in section
