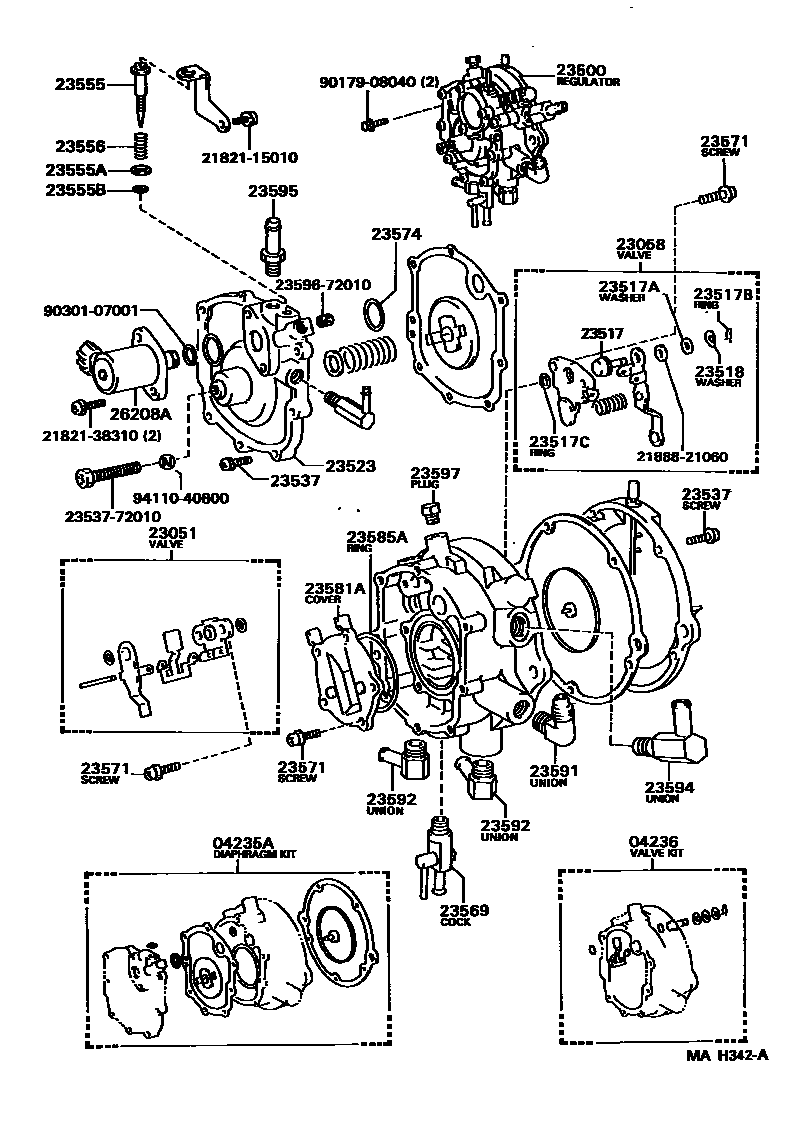

LPG OR CNG REGULATOR
04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE
04236VALVE KIT, LPG REGULATOR
23051VALVE SUB-ASSY, 1ST
23058VALVE SUB-ASSY, 2ND
23500REGULATOR ASSY, LPG(CNG)
23517VALVE, ELASTIC FACE
23517AWASHER(FOR ELASTIC FACE VALVE SET)
23517BRING, SNAP(FOR ELASTIC FACE VALVE SET)
23517CGASKET(FOR ELASTIC FACE VALVE)
23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
23523COVER, 1ST REGULATOR
sub23523-70040
23537SCREW(FOR 2ND REGULATOR COVER SET)
23555SCREW, IDLE ADJUST
sub23555-48050
23555AWASHER, IDLE ADJUST SCREW
23555BRING, O(FOR IDLE ADJUST SCREW)
23556SPRING, IDLE ADJUST SCREW
23569COCK, DRAIN
23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
23574RING, O, NO.1(FOR BULB)
23581ACOVER, UPPER PREHEATER
23585ARING, O(FOR PREHEATER)
23591UNION, NO.1, FUEL
23592UNION, NO.2, FUEL HOSE
sub23592-72010
23594UNION, NO.4, WATER HOSE
23595UNION, NO.5
23597PLUG, LPG REGULATOR BODY
26208AVALVE SUB-ASSY, SOLENOID(FOR LPG REGULATOR)
sub26208-73131
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2188821060WASHER(FOR POSITIONER VALVE SET)
main21888-21060
2353772010SCREW(FOR 2ND REGULATOR COVER SET)
main23537-72010
2359672010PLUG(FOR LPG REGULATOR BODY)
main23596-72010
9017908040
main90179-08040
9030107001
main90301-07001
9411040800
main94110-40800
35 parts on this diagram · 1 diagram in section
