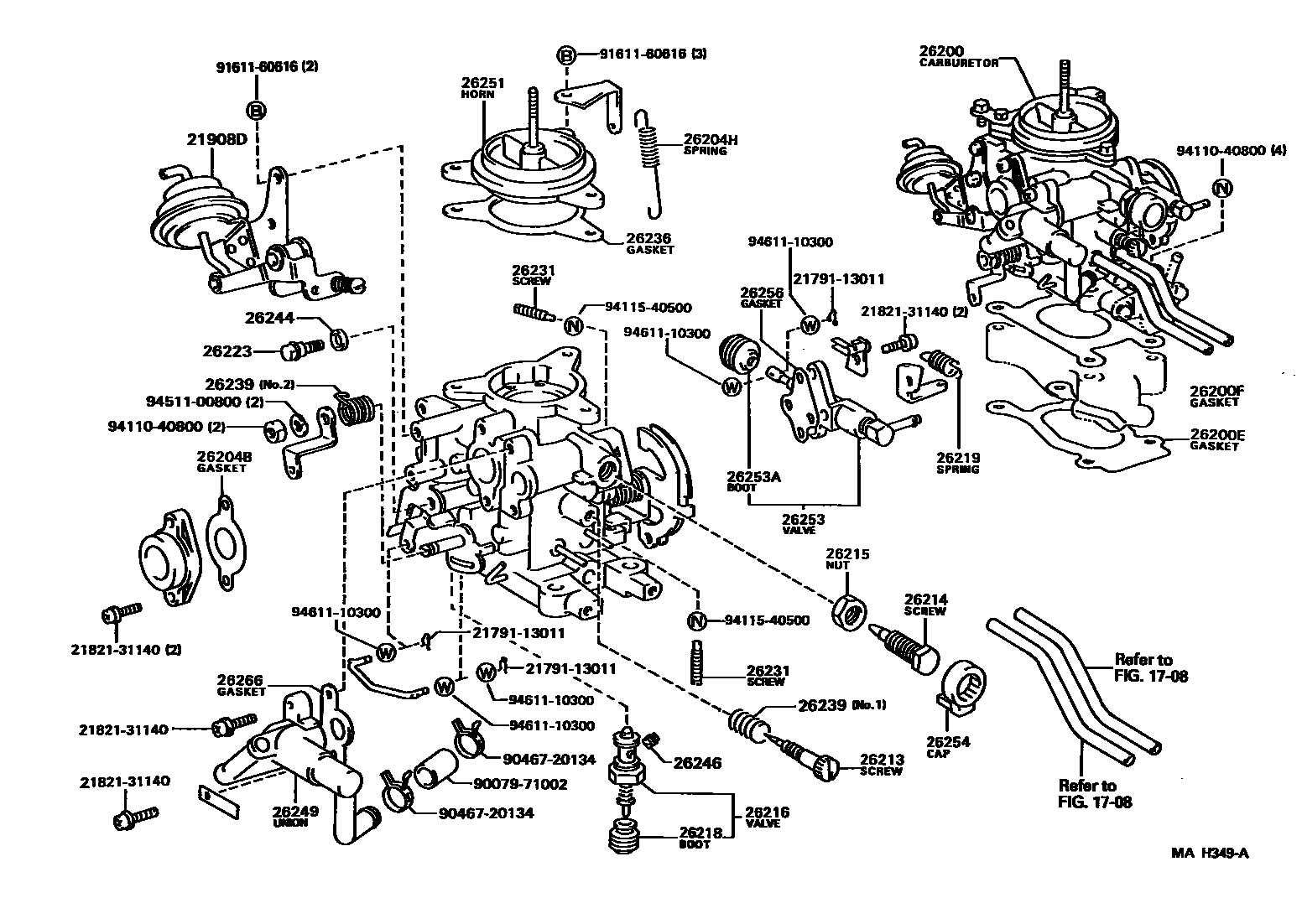

LPG CARBURETOR
1708
21908DACTUATOR SUB-ASSY, IDLE-UP
26200CARBURETOR ASSY, LPG
26200EGASKET, CARBURETOR, NO.1
26200FGASKET, CARBURETOR, NO.2
26204BGASKET, SOLENOID VALVE(FOR LPG)
26204HSPRING, THROTTLE RETURN(FOR LPG)
26213SCREW, ADJUST
sub26214-10010
26214SCREW, POWER ADJUST
26215NUT, POWER ADJUST
26216VALVE, POWER
26218BOOT(FOR POWER VALVE)
26219SPRING, POWER VALVE
26223SCREW, SET(FOR POWER VALVE CAM)
26231SCREW(FOR LPG CARBURETOR)
26236GASKET, AIR HORN
26244COLLAR(FOR LPG CARBURETOR)
26246JET
26249UNION, FUEL HOSE(FOR LPG)
26251HORN, AIR
26253VALVE, CHANGE(FOR SLOW)
26253ABOOT(FOR CHANGE VALVE)
26254CAP, POWER SCREW LIMIT
26256GASKET, CHANGE VALVE
26266GASKET, FUEL INLET UNION
2179113011RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13011
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
9007971002
main90079-71002
9046720134
main90467-20134
9161160616
main91611-60616
9411040800
main94110-40800
9411540500
main94115-40500
9451100800
main94511-00800
9461110300
main94611-10300
35 parts on this diagram · 1 diagram in section
