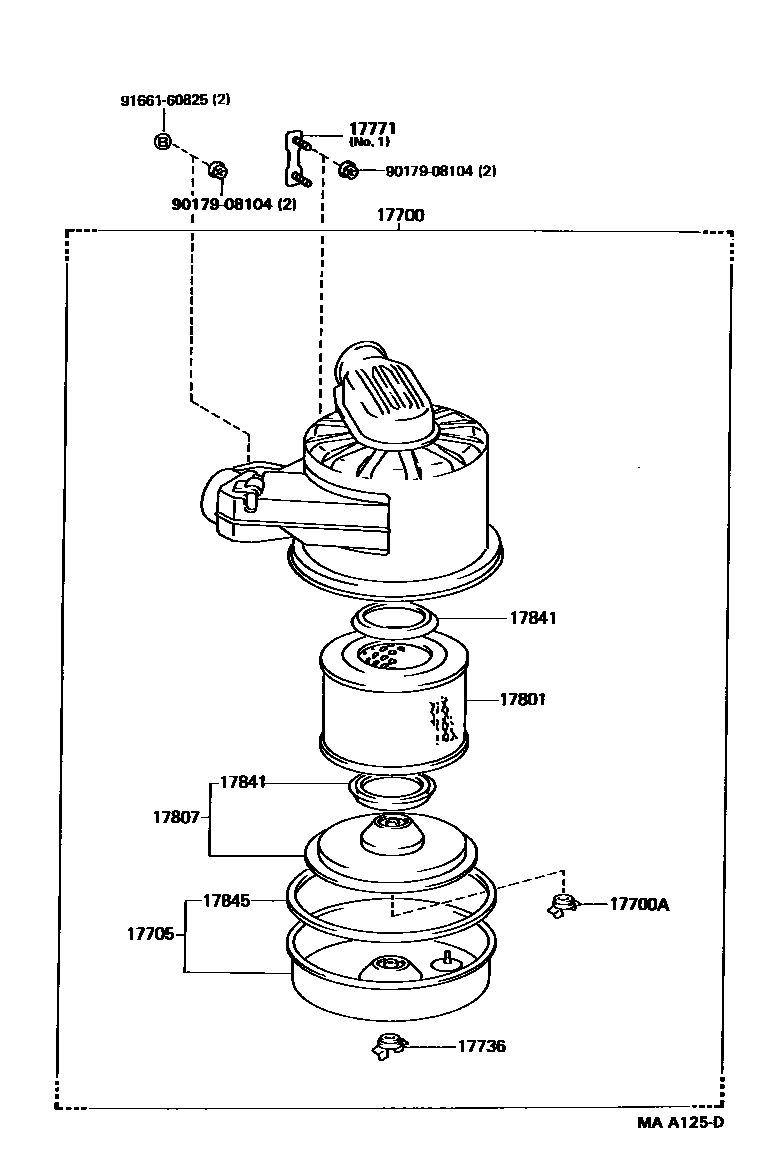

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0007 1 0009 1

17700CLEANER ASSY, AIR

main17700-54350i2L..LY50,60198708-198808

main17700-54530i2L,3L..LY5#,61198808-199505

main17700-71110i2Y,3Y..YY5#,61198708-199505

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i2L,3L..LY5#,6#198708-199505

17705CAP SUB-ASSY, AIR CLEANER

main17701-54200i2Y,3Y..YY5#,61198708-198808

main17705-54260i2L,3L..LY5#,61198808-199505

17736NUT, AIR CLEANER CASE

main90175-06003i2L,3L..LY5#,6#198708-199505

17771BRACKET, AIR CLEANER INLET DUCT

main17771-54010i2L..LY50,60198708-198808

main17771-54050i2L,3L..LY5#,61198808-199505

main17771-71010i2Y,3Y..YY5#,61198708-198808

N0.1

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31060i2Y,3Y..YY5#,61198708-199505

main17801-54070i2L..LY50,60198708-198808

main17801-56020i2L,3L..LY5#,61198808-199505

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-54010i2Y,3Y..YY5#,61198708-198808

main17807-58010i2L,3L..LY5#,61198808-199505

17841GASKET, FILTER ELEMENT

main17841-44030×2i2L,3L..LY5#,61198808-199505

main17841-54010×2i2Y,3Y..YY5#,61198708-198808

17845GASKET, AIR CLEANER CAP

main17845-54010i2L..LY50,60198708-198808

main17845-56020i2L,3L..LY5#,61198808-199505

9017908104

main90179-08104

9166160825

main91661-60825

11 parts on this diagram · 6 diagrams in section
