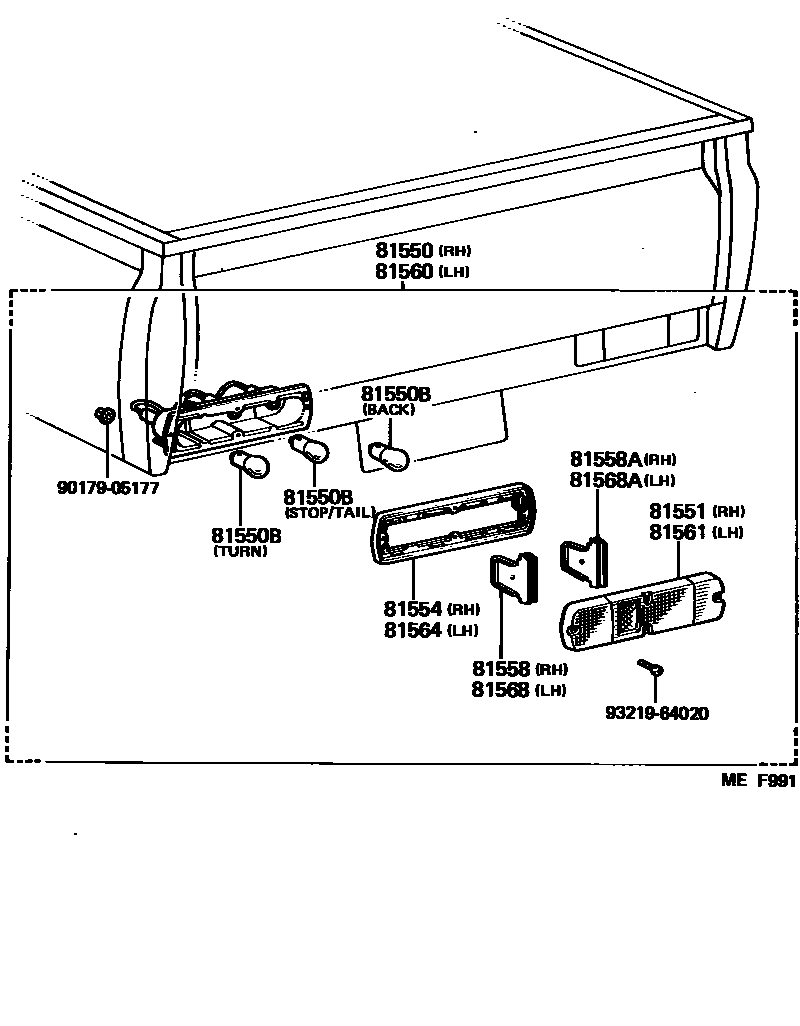

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-95012iLY50,60,YY5#,61198508-198708

sub81550-95A10

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×4iLY50,60,YY5#,61198508-198708

main99132-21210×2iLY50,60,YY5#,61198508-198708

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLY50,60,YY5#,61198508-198708

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iLY50,60,YY5#,61198508-198708

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iLY50,60,YY5#,61198508-198708

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-25060iLY50,60,YY5#,61198508-198708

81560LAMP ASSY, REAR COMBINATION, LH

main81560-95012iLY50,60,YY5#,61198508-198708

sub81560-95A10

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLY50,60,YY5#,61198508-198708

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-25040iLY50,60,YY5#,61198508-198708

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iLY50,60,YY5#,61198508-198708

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-25060iLY50,60,YY5#,61198508-198708

9017905177

main90179-05177

9321964020

main93219-64020

13 parts on this diagram · 1 diagram in section
