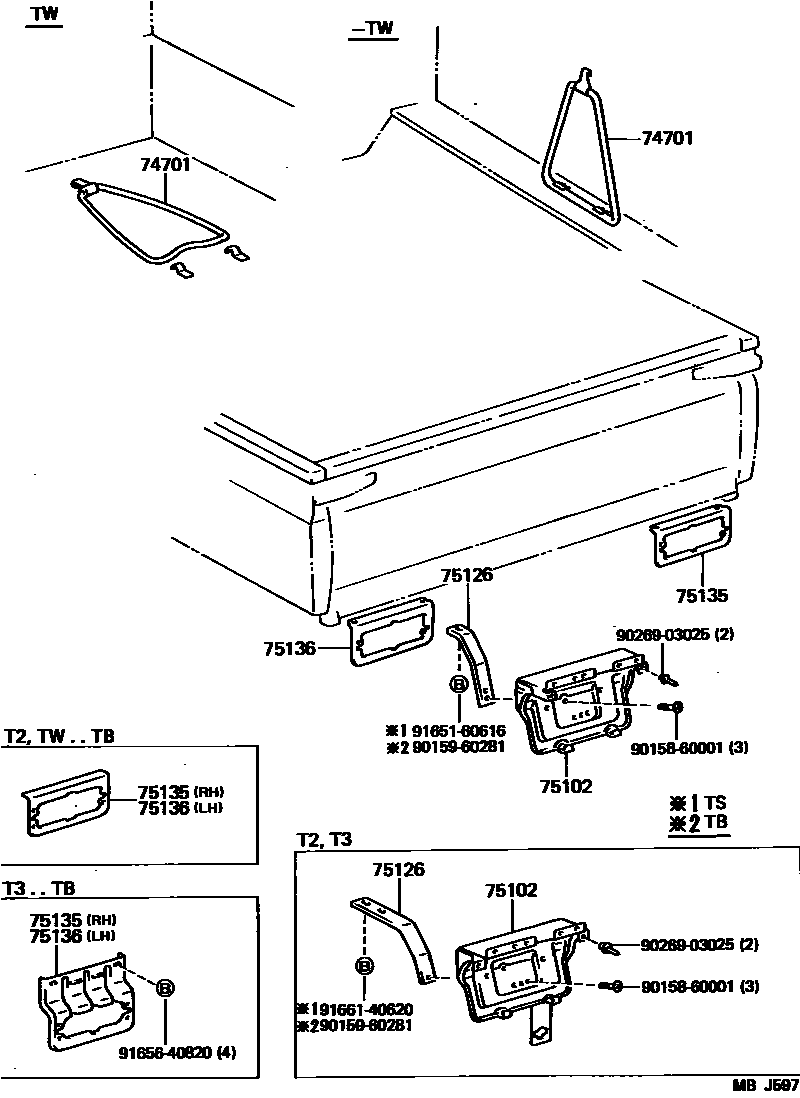

TOOL BOX & LICENSE PLATE BRACKET

74701CLAMP SUB-ASSY, TOOL BAG

main58705-95A01iLY50,60,YY5#,61198508-198708

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-92201iLY50,60,YY52,61..TB..ST198508-198708

main66490-95019iLY50,60,YY5#,61..T1,T2,TW198508-198708

sub66490-25030

main66490-95021iLY50,60,YY50,61..T3..TS198508-198708

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-95017iLY50,60,YY50,61..(T1,TW)..ST198508-198708

sub66407-25050

main66407-95019iLY50,60,YY50,61..T3..TS198508-198708

main66407-95020iLY50,60,YY5#,61..TS..WT1198508-198708

main66493-92202iLY50,60,YY52,61..TB..ST198508-198708

main66493-92203iLY50,60,YY52,61..TB..(WT1,WT2)198508-198708

75135BRACKET, COMBINATION REAR LAMP, RH

main58378-92200iLY50,60,YY52,61..TB..ST198508-198708

main65257-92200iLY50,60,YY52,61..TB..(WT1,WT2)198508-198706

sub75135-25040

main75135-92201iLY50,60,YY52,61..TB..(WT1,WT2)198706-198708

sub75135-25040

main75135-95A02iLY50,60,YY5#,61..(T2,T3)..TS198508-198708

sub75136-25010

75136BRACKET, COMBINATION REAR LAMP, LH

main58378-92200iLY50,60,YY52,61..TB..ST198508-198708

main65257-92200iLY50,60,YY52,61..TB..(WT1,WT2)198508-198706

sub75135-25040

main75135-92201iLY50,60,YY52,61..TB..(WT1,WT2)198706-198708

sub75135-25040

main75135-95A02iLY50,60,YY5#,61..(T2,T3)..TS198508-198708

sub75136-25010

9015860001

main90158-60001

9015960281

main90159-60281

9026903025

main90269-03025

9165160616

main91651-60616

9165640820

main91656-40820

9166140620

main91661-40620

11 parts on this diagram · 1 diagram in section
