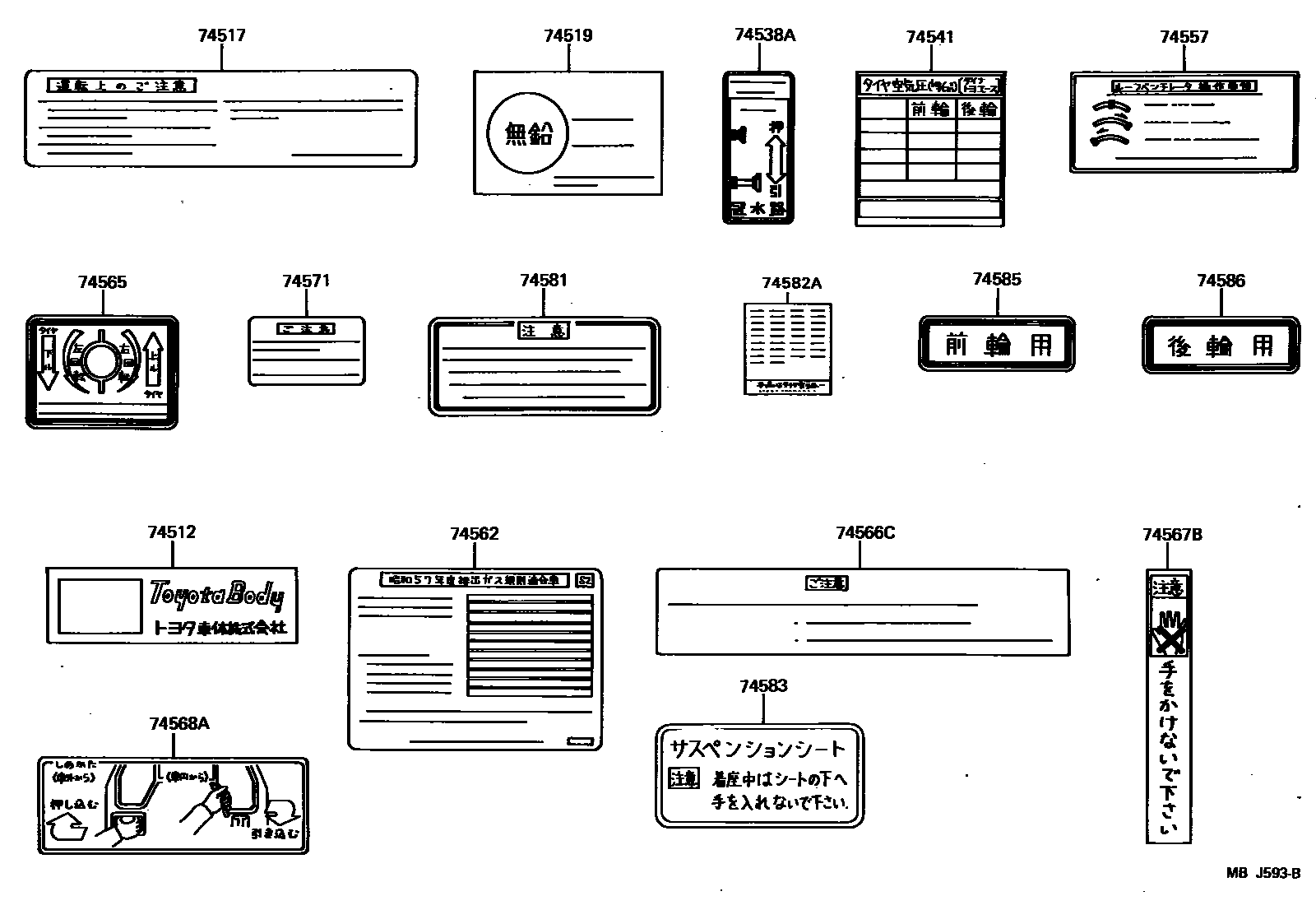

CAUTION PLATE

74512PLATE, MANUFACTURED NAME

main74512-95550iLY50,60,YY5#,61198508-198708

74517PLATE, EXHAUST TEMPERATURE CAUTION

main74517-20020iLY50,60,YY5#,61198508-198708

74519PLATE, FUEL CAUTION

main74559-14010iYY5#,61..CBR198508-198708

74538APLATE, AIR CLEANER INLET OPERATIONAL CAUTION

main74538-95010iLY50,60,YY5#,61198508-198708

sub74538-95404

74541PLATE, TIRE PRESSURE CAUTION

main74552-25490iYY50..125..ST198508-198708

main74552-25500iYY50..10T198508-198708

sub74582-25160

main74552-25510iYY50..WT1198508-198708

main74552-25520iLY50,YY61..15T..ST198508-198708

main74552-25540iLY50,YY61..15T..WT1198508-198708

main74552-25550iYY61..125..WT1198508-198708

main74552-25560iLY60,YY61..WT2..CBU198508-198708

main74552-25600iYY52..ST198508-198708

main74552-25610iYY52..WT1198508-198708

main74552-25620iLY60..TS..15T..ST198508-198708

sub74582-25190

main74552-25630iLY60..TB..ST198508-198708

main74552-25640iLY60..125..ST198508-198708

main74552-25650iLY60..15T..WT1198508-198708

main74552-25660iLY60..125..WT1198508-198708

main74552-25670iLY60,YY61..WT2..IV198508-198708

main74552-25680iLY50..125..ST198508-198708

main74552-25690iLY50,YY61..TW1198508-198708

main74552-25700iLY50..125..WT1198508-198708

main74552-25710iLY50,60,YY52,61..(T3,TW)..ST198508-198708

5.50F-15

74557PLATE, ROOF VENTILATION CAUTION

main74563-95400iLY50,60,YY52,61..15T198508-198708

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-25090iYY50198508-198708

main74562-25100iYY52,61..CBR198508-198708

main74562-25110iYY61..LPG198508-198708

main74562-30410iLY50,60198508-198608

main74562-35120iLY50,60198608-198708

74565PLATE, TIRE CARRIER CAUTION

main74544-25020iLY60,YY61..125..WT1198612-198708

main74544-25030iLY50..WT1198612-198708

TRUCK FREEZER

sub74544-25031

main74544-35050iLY50..WT1198608-198708

sub74544-35060

74566CPLATE, FRONT SLIDE DOOR CAUTION

main74566-95400iLY50,60..15T198508-198608

main74566-95401iLY50,60..15T198608-198708

74567BPLATE, FRONT SLIDE DOOR ARM CAUTION

main74567-95400iLY50,60..15T198508-198608

main74567-95401iLY50,60..15T198608-198708

74568APLATE, FRONT SLIDE DOOR CAUTION, NO.2

main74568-95401iLY50,60..15T198508-198708

74571PLATE, BRAKE FLUID CAUTION

main47288-32010iLY50,60,YY5#,61198608-198708

main74571-27022iLY50,60,YY5#,61198508-198608

74581PLATE, POWER STEERING CAUTION

main74581-37010iLY50,60,YY5#,61198508-198708

74582APLATE, SAFETY CAUTION

main74582-36270iLY50,60,YY52,61..T3..CBU198508-198708

5.50F-15

74583PLATE, SEAT SUSPENSION CAUTION

main74583-95400iLY50,60,YY52,61..15T198608-198610

W/*SUS

main74583-95402iLY50,60,YY52,61..15T198610-198708

W/*SUS

sub74583-37010

74585PLATE, TIRE CARRIER CAUTION, NO.2

main74585-25010iLY60,YY5#,61..T2198508-198708

74586PLATE, TIRE CARRIER CAUTION, NO.3

main74586-25010iLY60,YY5#,61..T2198508-198708

17 parts on this diagram · 1 diagram in section
