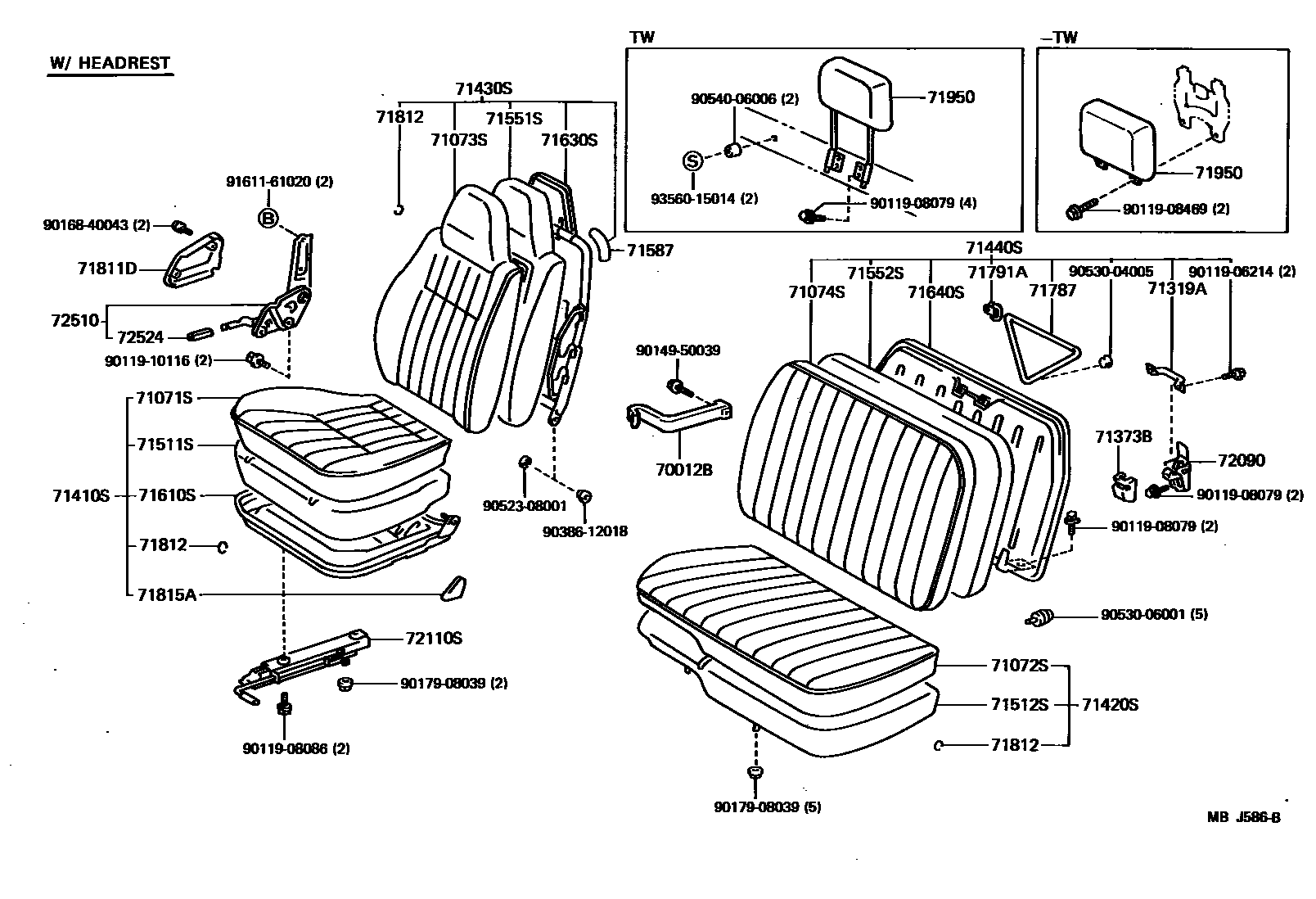

SEAT & SEAT TRACK

0001 1 0002 1 0003 1

70012BBAND, ENGINE SERVICE HOLE COVER SUPPORT

main58930-95700-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

sub58930-95700

main58930-95700-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

sub58930-95700

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-95032-04iLY50,60,YY5#,61..TOY198508-198708

VL,BLUE,BLUE

main71071-95033-04iLY50,60,YY52,61..TOY..15T198608-198708

W/*SUS,VL,BLUE,BLUE

main71071-95453-03iLY50,60,YY5#,61..DYN198508-198708

VL,SHADOW GRAY,SHADOW GRAY

main71071-95456-03iLY50,60,YY52,61..DYN..15T198608-198708

W/*SUS,VL,GRAY,SHADOW GRAY

sub71071-95456

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-95035-04iLY50,60,YY5#,61..TOY198508-198708

VL,BLUE,BLUE

main71072-95036-04iLY50,60..TOY..15T198508-198708

W/SLIDE DOOR,VL,BLUE,BLUE

main71072-95463-03iLY50,60,YY5#,61..DYN198508-198708

VL,SHADOW GRAY,SHADOW GRAY

sub71072-95465

main71072-95464-03iLY50,60..DYN..15T198508-198708

W/SLIDE DOOR,VL,SHADOW GRAY,SHADOW GRAY

sub71072-95464

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-95035-04iLY50,60,YY5#,61..TOY..(T1,T2,T3)198508-198708

VL,BLUE,BLUE

main71073-95036-04iLY50,60,YY52,61..TOY..15T198608-198708

W/*SUS,VL,BLUE,BLUE

main71073-95037-04iLY50,60,YY50,61..TOY..TW198508-198708

VL,BLUE,BLUE

main71073-95461-03iLY50,60,YY5#,61..DYN..(T1,T2,T3)198508-198708

VL,SHADOW GRAY,SHADOW GRAY

main71073-95465-03iLY50,60,YY52,61..DYN..15T198608-198708

W/*SUS,VL,GRAY,SHADOW GRAY

sub71073-95465

main71073-95A07-03iLY50,60,YY50,61..DYN..TW198508-198708

VL,SHADOW GRAY,SHADOW GRAY

sub71073-95A07

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-95033-04iLY50,60,YY5#,61..TOY198508-198708

VL,BLUE,BLUE

main71074-95B08-03iLY50,60,YY5#,61..DYN198508-198708

VL,SHADOW GRAY,SHADOW GRAY

sub71074-95B08

main71074-95B09-03iLY50,60..DYN..15T198508-198708

W/*SD,VL,SHADOW GRAY,SHADOW GRAY

sub71074-95B09

main71074-95B14-03iLY50,60,YY5#,61..DYN198508-198708

COLD SPEC,VL,SHADOW GRAY,SHADOW GRAY

sub71074-95B08

main71074-95B15-03iLY50,60..DYN..15T198508-198708

COLD SPEC,W/*SD,VL,SHADOW GRAY,SHADOW GRAY

sub71074-95B15

71319ASTRIKER, FRONT SEATBACK

main71319-95400iLY50,60,YY5#,61198508-198708

71373BCOVER, FRONT SEATBACK LOCK

main71373-95400-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

sub71373-95400

main71373-95400-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

sub71373-95400

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-95026-04iLY50,60,YY52,61..TOY..15T198608-198708

W/*SUS,VL,BLUE,BLUE

main71410-95027-04iLY50,60,YY5#,61..TOY198508-198708

VL,BLUE,BLUE

main71410-95439-03iLY50,60,YY5#,61..DYN..(T1,T2,T3)198508-198708

VL,SHADOW GRAY,SHADOW GRAY

main71410-95442-03iLY50,60,YY52,61..DYN..15T198608-198708

W/*SUS,VL,GRAY,SHADOW GRAY

main71410-95A51-03iLY50,60,YY50,61..DYN..TW198508-198708

VL,SHADOW GRAY,SHADOW GRAY

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-95032-04iLY50,60,YY5#,61..TOY198508-198708

VL,BLUE,BLUE

main71420-95033-04iLY50,60..TOY..15T198508-198708

W/*SD,VL,BLUE,BLUE

main71420-95446-03iLY50,60,YY52,61..DYN..15T198608-198708

W/*SUS,W/O *SD,VL,GRAY,SHADOW GRAY

main71420-95447-03iLY50,60..DYN..15T198508-198708

W/*SD,VL,SHADOW GRAY,SHADOW GRAY

main71420-95A10-03iLY50,60,YY5#,61..DYN198508-198708

VL,SHADOW GRAY,SHADOW GRAY

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-95032-04iLY50,60,YY5#,61..TOY..(T1,T2,T3)198508-198708

VL,BLUE,BLUE

main71430-95033-04iLY50,60,YY52,61..TOY..15T198608-198708

W/*SUS,VL,BLUE,BLUE

main71430-95034-04iLY50,60,YY50,61..TOY..TW198508-198708

VL,BLUE,BLUE

main71430-95443-03iLY50,60,YY5#,61..DYN..(T1,T2,T3)198508-198708

VL,SHADOW GRAY,SHADOW GRAY

main71430-95447-03iLY50,60,YY52,61..DYN..15T198608-198708

W/*SUS,VL,GRAY,SHADOW GRAY

main71430-95A07-03iLY50,60,YY50,61..DYN..TW198508-198708

VL,SHADOW GRAY,SHADOW GRAY

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-95020-04iLY50,60,YY5#,61..TOY198508-198708

VL,BLUE,BLUE

main71440-95022-04iLY50,60..TOY..15T198508-198708

W/*SD,VL,BLUE,BLUE

main71440-95471-03iLY50,60,YY5#,61..DYN198508-198708

VL,SHADOW GRAY,SHADOW GRAY

main71440-95472-03iLY50,60..DYN..15T198508-198708

W/*SD,VL,SHADOW GRAY,SHADOW GRAY

main71440-95479-03iLY50,60,YY5#,61..DYN198508-198708

COLD SPEC,VL,SHADOW GRAY,SHADOW GRAY

main71440-95480-03iLY50,60..DYN..15T198508-198708

COLD SPEC,W/*SD,VL,SHADOW GRAY,SHADOW GRAY

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-95400iLY50,60,YY5#,61198508-198708

main71511-95404iLY50,60,YY52,61..15T198608-198708

W/*SUS

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-95400iLY50,60,YY52,61..DYN..15T198608-198708

W/*SUS,W/O *SD

main71502-95401iLY50,60..15T198508-198708

W/SLIDE DOOR

main71502-95A05iLY50,60,YY5#,61198508-198708

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-95404iLY50,60,YY5#,61198508-198708

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-95403iLY50,60,YY5#,61198508-198708

main71552-95404iLY50,60..15T198508-198708

W/SLIDE DOOR

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-95J00iLY50,60,YY52,61..15T198608-198708

W/*SUS

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71011-95414iLY50,60,YY5#,61198508-198708

main71011-95417iLY50,60,YY52,61..15T198508-198708

W/*SUS

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71013-95411iLY50,60,YY52,61..15T198608-198708

W/*SUS

sub71013-95412

main71150-95J00iLY50,60,YY5#,61198508-198708

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71014-95413iLY50,60,YY5#,61..TOY198508-198708

main71014-95416iLY50,60,YY5#,61..DYN198508-198708

71787BAND, FRONT SEATBACK POCKET

main71787-95400iLY50,60,YY5#,61198508-198708

71791ARETAINER, FRONT SEATBACK POCKET

main71791-95400iLY50,60,YY5#,61198508-198708

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-95J01-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

sub71811-95J01

main71811-95J01-14iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

sub71811-95J01

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main90468-18071iLY50,60,YY5#,61198508-198708

sub90468-18008

71815ACOVER, FRONT SEAT CUSHION HINGE, RH

main71815-95J00-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY

sub71815-95J00

main71815-95J00-14iLY50,60,YY5#,61..TOY198508-198708

BLUE

sub71815-95J00

71950HEADREST ASSY, FRONT SEAT

main71910-92603-04iLY50,60,YY50,61..TW198508-198708

BLUE,BLUE

main71910-95400-04iLY50,60,YY5#,61..T1,T2,T3198508-198708

BLUE,BLUE

sub71910-37010

72090LOCK ASSY, FRONT SEATBACK

main72090-95400-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

sub72090-95400

main72090-95400-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

sub72090-95400

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-95408iLY50,60,YY5#,61198508-198708

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-95J00-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

sub72510-95J00

main72510-95J00-14iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

sub72510-95J00

72524HANDLE, RECLINING ADJUSTER RELEASE

main72525-95J00-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

sub72525-95J00

main72525-95J00-14iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

sub72525-95J00

9011906214

main90119-06214

9011908079

main90119-08079

9011908086

main90119-08086

9011908469

main90119-08469

9011910116

main90119-10116

9014950039

main90149-50039

9016840043

main90168-40043

9017908039

main90179-08039

9038612018

main90386-12018

9052308001

main90523-08001

9053004005

main90530-04005

9053006001

main90530-06001

9054006006

main90540-06006

9161161020

main91611-61020

9356015014

main93560-15014

44 parts on this diagram · 3 diagrams in section
