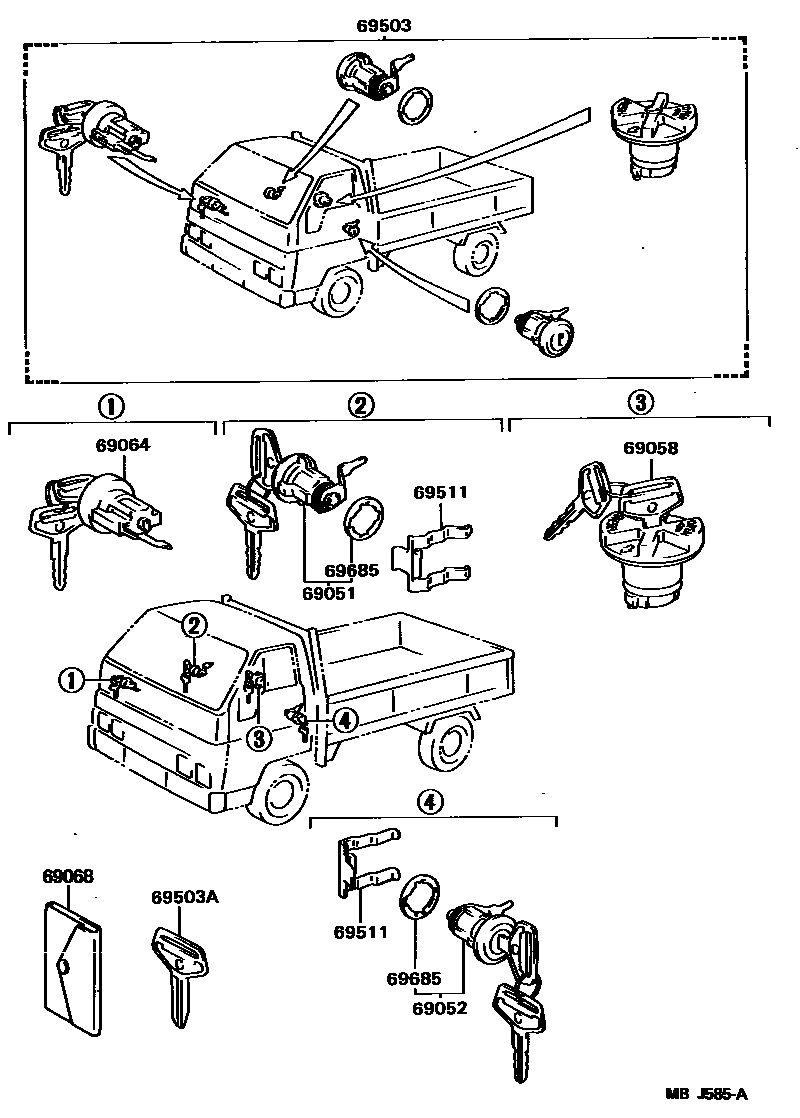

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95403iLY50,60,YY5#,61¥3,000198508-198708

sub69051-95404¥3,000

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95403iLY50,60,YY5#,61¥3,000198508-198708

sub69052-95404¥3,000

main69052-95405iLY50,60..15T¥3,000198508-198708

W/SLIDE DOOR

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-89102iLY50,60¥9,500198508-198708

sub69058-25010¥5,500

main69058-95400iYY5#,61..CBR¥9,500198508-198708

sub69058-60071¥5,500

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95407iLY50,60,YY5#,61¥5,700198508-198708

sub69057-95410¥5,700

69068COVER SUB-ASSY, KEY

main69555-20010iLY50,60,YY5#,61¥780198508-198708

69503CYLINDER SET, LOCK

main69503-95428iLY50,60¥17,000198508-198708

sub69503-95439¥18,000

main69503-95429iLY50,60..15T¥17,000198508-198708

W/SLIDE DOOR

sub69503-95431

main69503-95432iYY5#,61..CBR¥17,000198508-198708

sub69503-95444¥18,000

main69503-95434iYY61..LPG¥11,800198508-198708

sub69503-95438¥12,100

69503AKEY, BLANK

main90999-00066iLY50,60,YY5#,61¥1,550198508-198708

sub90999-00085¥1,550

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iLY50,60..15T¥160198508-198708

LH,W/SLIDE DOOR

main69511-95400iLY50,60..15T¥250198508-198708

RH,W/SLIDE DOOR

69685PAD, LOCK CYLINDER

main69513-32010iLY50,60,YY5#,61¥120198508-198708

9 parts on this diagram · 1 diagram in section
