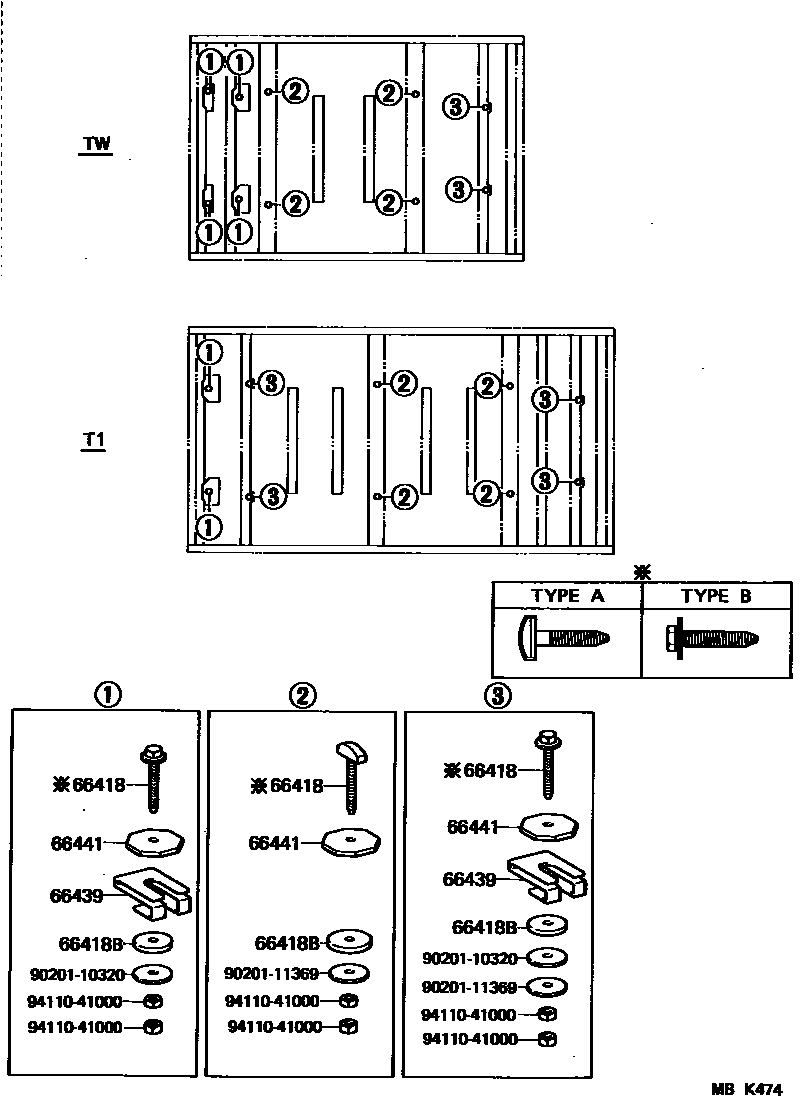

REAR BODY MOUNTING

0001 1 0002 1 0003 1 0004 1

66418BOLT, MOUNTING

main66418-95400iLY50,60,YY5#,61..(T1,T2,TW)..TS198508-198708

TYPE A

main90119-10091iLY50,60,YY5#,61..(T1,T2,TW)..TS198508-198708

TYPE B

66418BSHIM, MOUNTING

main90564-12013iLY50,60,YY5#,61..TS198508-198708

66439SHIM, SUPPORT

main66441-95A01iLY50,60,YY5#,61..TS198508-198708

66441SHIM, MOUNTING, NO.1

main66441-95A01iLY50,60,YY5#,61..TS198508-198708

9020110320

main90201-10320

9020111369

main90201-11369

9411041000

main94110-41000

7 parts on this diagram · 4 diagrams in section
