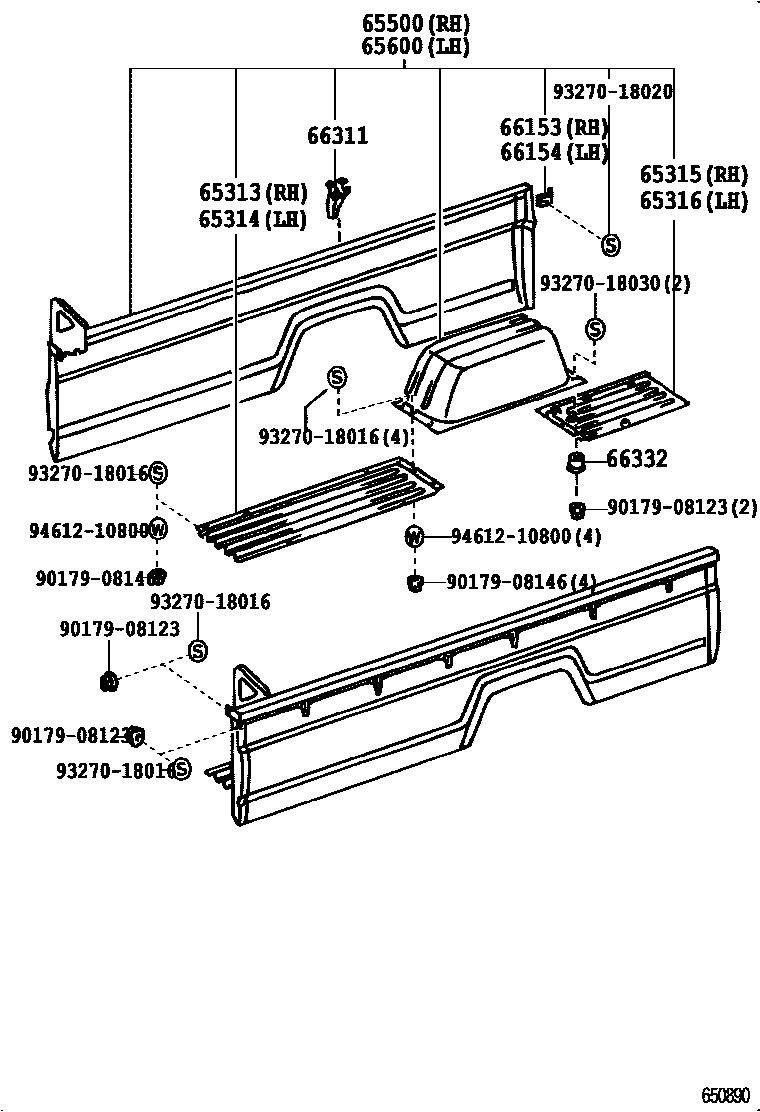

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-95405iLY60,YY61..125..ST198508-198708

main65313-95A04iLY50,YY50..T1198508-198708

sub65313-26020

main65313-95A05iLY50,YY50..10T198508-198708

65314PANEL, FLOOR FRONT CORNER, LH

main65314-95022iLY50,YY50..T1198508-198708

sub65314-25020

main65314-95404iLY60,YY61..125..ST198508-198708

main65314-95A03iLY50,YY50..10T198508-198708

65315PANEL, FLOOR REAR CORNER, RH

main65315-95405iLY50,60,YY50,61..(T1,TW)..ST198508-198708

sub65315-25010

65316PANEL, FLOOR REAR CORNER, LH

main65316-95405iLY50,60,YY50,61..(T1,TW)..ST198508-198708

sub65316-25010

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-92212iLY50,YY52..TB198508-198608

main65500-92213iLY60,YY61..TB..15T198508-198608

sub65500-92724

main65500-92214iLY60,YY61..125..WT1198508-198608

sub65500-92217

main65500-92215iLY50,YY52..TB198608-198708

main65500-92216iLY60,YY61..TB..15T198608-198708

sub65500-92727

main65500-92217iLY60,YY61..125..WT1198608-198708

sub65500-92728

main65500-95066iLY50,YY50..T1198508-198708

sub65500-95072

main65500-95067iLY60,YY61..125..ST198508-198708

main65500-95068iLY50,YY5#..(T2,T3)..TS198508-198708

sub65500-95073

main65500-95069iLY60,YY61..TS..15T198508-198708

sub65500-25040

main65500-95A09iLY50,YY50..10T198508-198708

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-92207iLY50,YY52..TB198508-198509

sub65600-92212

main65600-92208iLY60,YY61..TB..15T198508-198509

sub65600-92213

main65600-92209iLY60,YY61..125..WT1198508-198509

sub65600-92214

main65600-92212iLY50,YY52..TB198509-198608

main65600-92213iLY60,YY61..TB..15T198509-198608

sub65600-92724

main65600-92214iLY60,YY61..125..WT1198509-198608

sub65600-92217

main65600-92215iLY50,YY52..TB198608-198708

main65600-92216iLY60,YY61..TB..15T198608-198708

main65600-92217iLY60,YY61..125..WT1198608-198708

sub65600-92728

main65600-95068iLY50,YY50..T1198508-198708

sub65600-25060

main65600-95069iLY60,YY61..125..ST198508-198708

main65600-95070iLY50,YY5#..(T2,T3)..TS198508-198708

sub65600-95074

main65600-95071iLY60,YY61..TS..15T198508-198708

sub65600-25040

main65600-95A08iLY50,YY50..10T198508-198708

66153LATCH, TAIL GATE FEMALE, RH

main66153-95012iLY50,60,YY50,61..(T1,TW)..ST198508-198708

main66153-95A00iLY50,60,YY5#,61..(T2,T3)..TS198508-198707

sub66153-95A01

main66153-95A01iLY50,60,YY5#,61..(T2,T3)..TS198707-198708

66154LATCH, TAIL GATE FEMALE, LH

main66153-95012iLY50,60,YY50,61..(T1,TW)..ST198508-198708

main66154-95A00iLY50,60,YY5#,61..(T2,T3)..TS198508-198707

sub66154-95A01

main66154-95A01iLY50,60,YY5#,61..(T2,T3)..TS198707-198708

66311HOOK, ROPE

main66311-95010iLY50,60,YY50,61..(T1,TW)..ST198508-198708

sub66311-90K00

66332CUSHION, RUBBER

main66332-95A00iLY50,60,YY50,61..(T1,TW)..ST198508-198708

9017908123

main90179-08123

9017908146

main90179-08146

9327018016

main93270-18016

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

16 parts on this diagram · 4 diagrams in section
