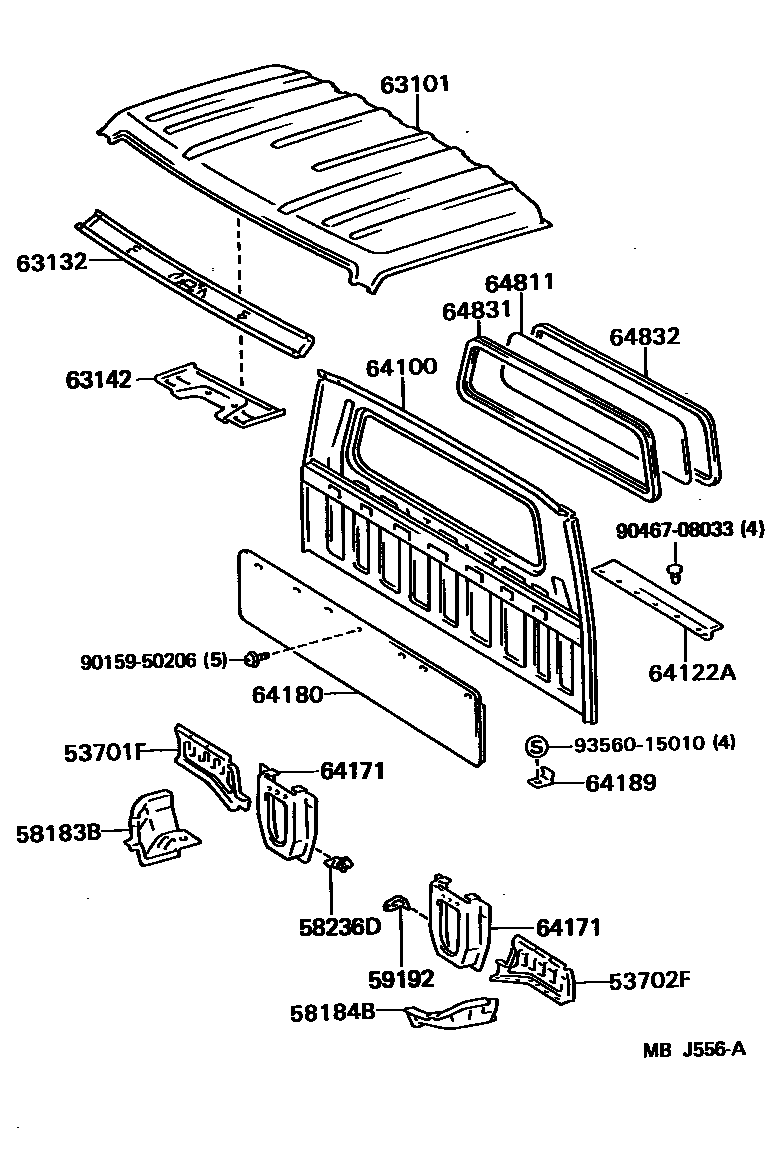

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

53701FAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53717-95A03iLY50,60,YY5#,61..T1,T2,T3198508-198708

main53717-95A04iLY50,60,YY50,61..TW198508-198708

53702FAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53718-95A02iLY50,60,YY5#,61..T1,T2,T3198508-198708

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95402iLY50,60,YY5#,61198508-198708

sub58183-95405

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95401iLY50,60,YY5#,61198508-198708

sub58184-95404

58236DBRACKET, CLUTCH TUBE

main58236-95A00iYY5#,61..T1,T2,T3198508-198708

sub58236-25010

59192BRACKET, NOISE SHUTTER, NO.2

main59192-95A00iYY50..125198508-198708

63101PANEL SUB-ASSY, ROOF

main63111-95409iLY50,60,YY5#,61..T1,T2,T3198508-198708

sub63111-37010

sub63141-37010

main63111-95410iLY50,60,YY52,61..15T198508-198708

W/ROOF VENTILATOR

sub63111-37020

sub63141-37010

main63111-95A05iLY50,60,YY50,61..TW198508-198708

63132PANEL, WINDSHIELD HEADER, INNER

main63132-95417iLY50,60,YY5#,61198508-198601

sub90950-06047

main63132-95418iLY50,60,YY5#,61198601-198708

sub63132-37010

main63132-95419iLY50,60,YY52,61..15T198508-198601

W/ROOF VENTIATOR

sub90950-06047

main63132-95420iLY50,60,YY52,61..15T198601-198708

W/ROOF VENTIATOR

sub63132-37010

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iLY50,60,YY52,61..15T198508-198708

W/ROOF VENTILATOR

64100PANEL ASSY, BACK, OUTER

main64100-95A00iLY50,60,YY5#,61..T1,T2,T3198508-198708

sub64100-26030

main64101-95A08iLY50,60,YY50,61..TW198508-198708

64122ABAFFLE, DUST REAR BODY

main64122-95019iLY50,60,YY5#,61..(T1,T2)..TS198508-198708

main64122-95A03iLY50,60,YY5#,61..T3198508-198708

main64122-95A05iLY50,60,YY52,61..T2..TB198508-198708

main64122-95A06iLY50,60,YY50,61..TW198508-198708

64171BRACKET, CAB REAR MOUNTING

main64171-95408×2iLY50,60,YY5#,61..T1,T2,T3198508-198708

main64171-95410×2iLY50,60,YY50,61..TW198508-198708

64180SILENCER ASSY, BACK PANEL

main64141-95021-03iLY50,60,YY50,61..TW198508-198708

GRAY,GRAY

main64190-95012iLY50,60..T1,T2,T3198508-198708

64189CLAMP, BACK PANEL SILENCER

main64189-95400×4iLY50,60..T1,T2,T3198508-198708

64811GLASS, BACK WINDOW

main64811-95409iLY50,60,YY5#,61..T1,T2,T3198508-198708

main64811-95410iLY50,60,YY50,61..TW198508-198708

sub64811-37080

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95015iLY50,60,YY5#,61..T1,T2,T3198508-198708

main64831-95016iLY50,60,YY50,61..TW198508-198708

sub64831-37050

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iLY50,60,YY5#,61..T1,T2,T3198508-198708

main64832-95013iLY50,60,YY50,61..TW198508-198708

sub64832-37040

9015950206

main90159-50206

9046708033

main90467-08033

9356015010

main93560-15010

20 parts on this diagram · 3 diagrams in section
