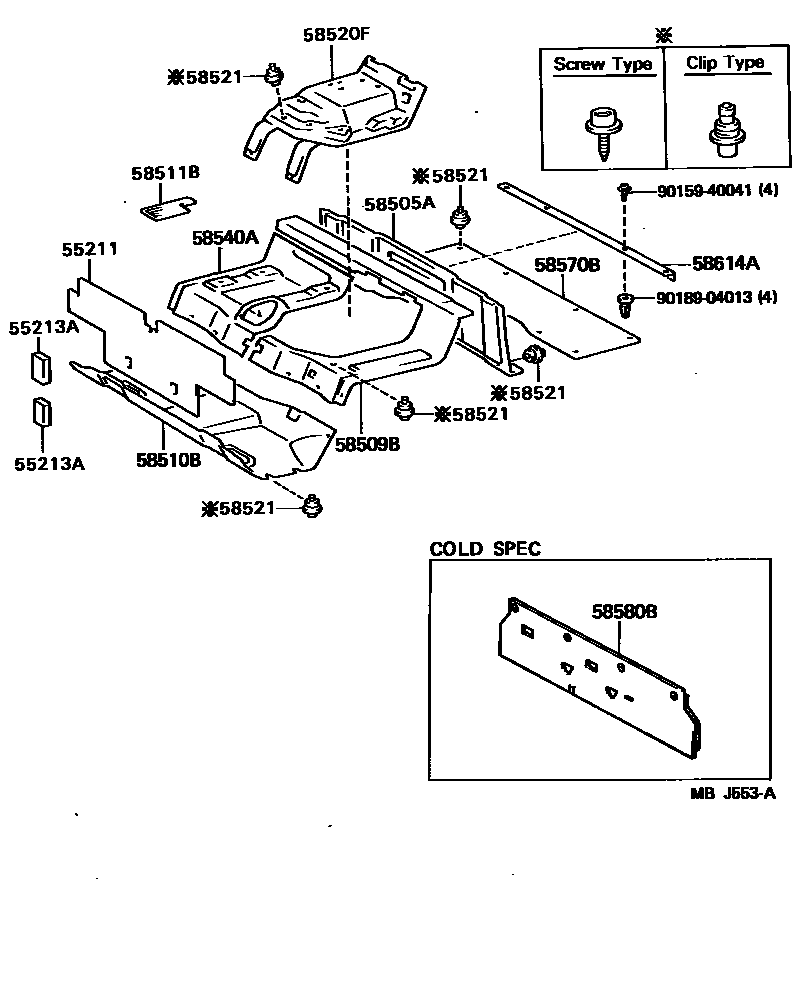

FLOOR MAT & SILENCER PAD

55211SILENCER, FRONT PANEL

main55211-95404iLY50,60,YY5#,61198508-198708

55213APAD, DASH PANEL SILENCER

main55213-95400iLY50,60,YY5#,61198508-198708

UPP

main55213-95401iLY50,60,YY5#,61198508-198708

LWR

58505AMAT SUB-ASSY, HEADER

main58504-95021-03iLY50,60,YY50,61..DYN..TW198508-198708

SHADOW GRAY,SHADOW GRAY

main58504-95021-04iLY50,60,YY50,61..TOY..TW198508-198708

BLUE,BLUE

58509BMAT SUB-ASSY, SEAT FLOOR

main58509-95015-03iLY50,60,YY5#,61..DYN..(T1,T2,T3)198508-198708

SHADOW GRAY,SHADOW GRAY

main58509-95015-04iLY50,60,YY5#,61..TOY..(T1,T2,T3)198508-198708

BLUE,BLUE

main58509-95017-03iLY50,60..DYN..15T198508-198708

W/*SD,SHADOW GRAY,SHADOW GRAY

main58509-95017-04iLY50,60..TOY..15T198508-198708

W/*SD,BLUE,BLUE

main58509-95020-04iLY50,60,YY50,61..TOY..TW198508-198708

BLUE,BLUE

main58509-95023-03iLY50,60,YY50,61..DYN..TW198508-198708

SHADOW GRAY,SHADOW GRAY

58510BMAT, FRONT FLOOR, FRONT

main58510-95038-03iLY50,60,YY5#,61..DYN198508-198708

W/*ACIS,SHADOW GRAY,SHADOW GRAY

main58510-95038-04iLY50,60,YY5#,61..TOY198508-198708

W/*ACIS,BLUE,BLUE

main58510-95042-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main58510-95042-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

58511BMAT, FLOOR, FRONT SIDE

main58515-95403-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,GRAY

main58515-95403-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

58520FMAT ASSY, ENGINE COVER

main58520-95012-04iLY50,60,YY50,61..TOY..TW198508-198708

BLUE,BLUE

main58520-95016-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main58520-95016-04iLY50,60,YY5#,61..TOY..(T1,T2,T3)198508-198708

BLUE,BLUE

58521HOOK, MALE, NO.1

main90530-04007iLY50,60,YY50,61..TW198508-198708

SCREW TYPE

main90530-06001iLY50,60,YY5#,61198508-198708

CLIP TYPE

58540AMAT ASSY, FRONT FLOOR, REAR NO.1

main58540-95010-04iLY50,60,YY50,61..TOY..TW198508-198708

BLUE,BLUE

main58540-95013-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main58540-95013-04iLY50,60,YY5#,61..TOY..(T1,T2,T3)198508-198708

BLUE,BLUE

main58540-95016-03iLY50,60,YY52,61..DYN..15T198608-198708

*SUS,SHADOW GRAY,SHADOW GRAY

main58540-95016-04iLY50,60,YY52,61..TOY..15T198608-198708

*SUS,BLUE,BLUE

58570BMAT ASSY, REAR FLOOR

main58581-95012-03iLY50,60,YY50,61..DYN..TW198508-198608

SHADOW GRAY,SHADOW GRAY

main58581-95012-04iLY50,60,YY50,61..TOY..TW198508-198608

BLUE,BLUE

main58581-95013-03iLY50,60,YY50,61..DYN..TW198508-198608

COLD SPEC,SHADOW GRAY,SHADOW GRAY

main58581-95013-04iLY50,60,YY50,61..TOY..TW198508-198608

COLD SPEC,BLUE,BLUE

main58581-95015-03iLY50,60,YY50,61..DYN..TW198608-198708

SHADOW GRAY,SHADOW GRAY

main58581-95015-04iLY50,60,YY50,61..TOY..TW198608-198708

BLUE,BLUE

main58581-95016-03iLY50,60,YY50,61..DYN..TW198608-198708

COLD SPEC,SHADOW GRAY,SHADOW GRAY

main58581-95016-04iLY50,60,YY50,61..TOY..TW198608-198708

COLD SPES,BLUE,BLUE

58580BMAT ASSY, REAR FLOOR, REAR

main58582-95010-03iLY50,60,YY50,61..DYN..TW198508-198608

COLD SPEC,SHADOW GRAY,SHADOW GRAY

main58582-95010-04iLY50,60,YY50,61..TOY..TW198508-198608

COLD SPEC,BLUE,BLUE

main58582-95011-03iLY50,60,YY50,61..DYN..TW198608-198708

COLD SPEC,SHADOW GRAY,SHADOW GRAY

main58582-95011-04iLY50,60,YY50,61..TOY..TW198608-198708

COLD SPEC,BLUE,BLUE

58614APLATE, MAT SET, NO.4

main58614-95A01-03iLY50,60,YY50,61..DYN..TW198508-198708

SHADOW GRAY,SHADOW GRAY

main58614-95A01-04iLY50,60,YY50,61..TOY..TW198508-198708

BLUE,BLUE

9015940041

main90159-40041

9018904013

main90189-04013

14 parts on this diagram · 1 diagram in section
