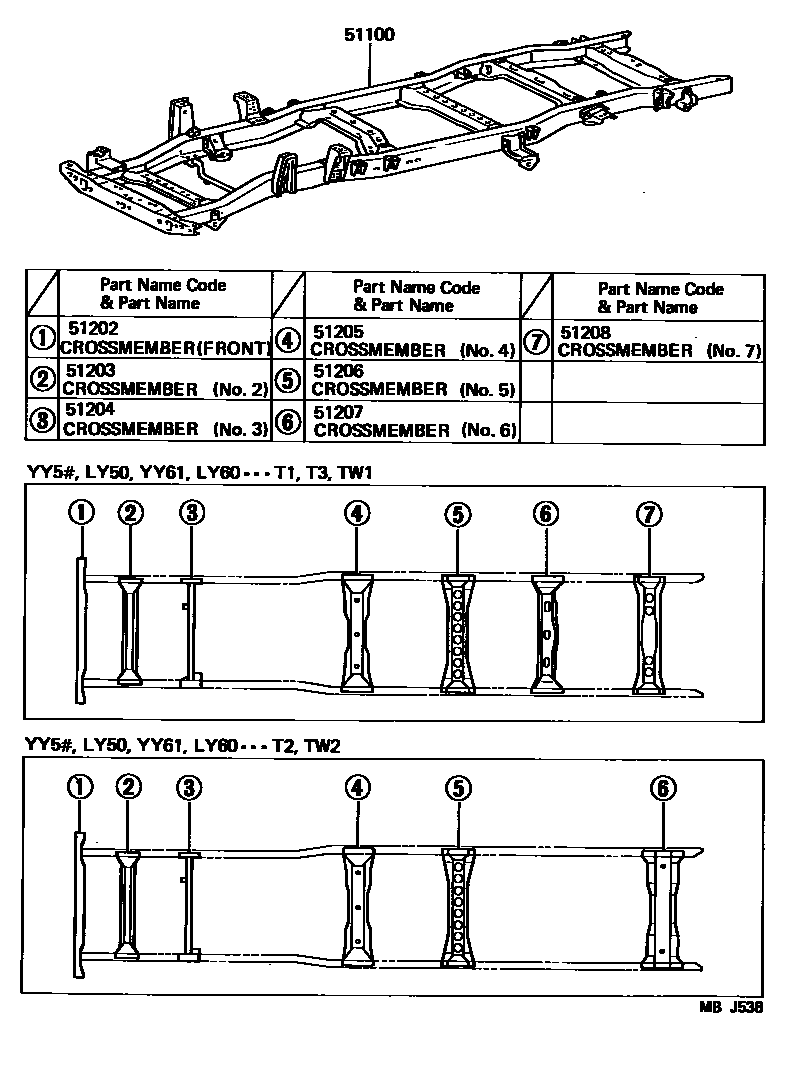

FRAME

0001 1 0002 1

51100FRAME ASSY

main51002-25480iLY50,YY50..125..ST198508-198708

main51002-25490iLY50,YY52..15T..ST198508-198708

main51002-25500iLY50,YY50..10T198508-198708

main51002-25520iLY50..WT1198608-198708

BATTERY=75D26R

main51002-25520iYY5#..WT1198508-198708

main51002-25530iLY50..WT1198508-198708

main51002-25540iLY60,YY61..TS..15T..ST198508-198708

main51002-25570iLY60,YY61..TB..ST198508-198708

main51002-25580iLY60,YY61..125..ST198508-198708

main51002-25600iLY60,YY61..T2198508-198708

main51002-25610iLY60,YY61..125..WT1198508-198708

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51211-25090iLY50,60,YY5#,61198508-198708

sub51211-25091

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-25120iLY50,60,YY5#,61198508-198708

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-25110iLY50,60,YY5#,61198508-198708

sub51203-25111

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-25060iLY50,60,YY5#,61198508-198708

sub51204-25061

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-25050iLY50,60,YY5#,61198508-198708

sub51205-25051

51207CROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-25080iLY50,60,YY5#,61..ST198508-198708

sub51206-25100

main51206-25090iLY50,60,YY5#,61..WT1,WT2198508-198708

51208CROSSMEMBER SUB-ASSY, FRAME, NO.7

main51207-25040iLY50,60,YY5#,61..ST198508-198708

sub51207-25050

8 parts on this diagram · 2 diagrams in section
