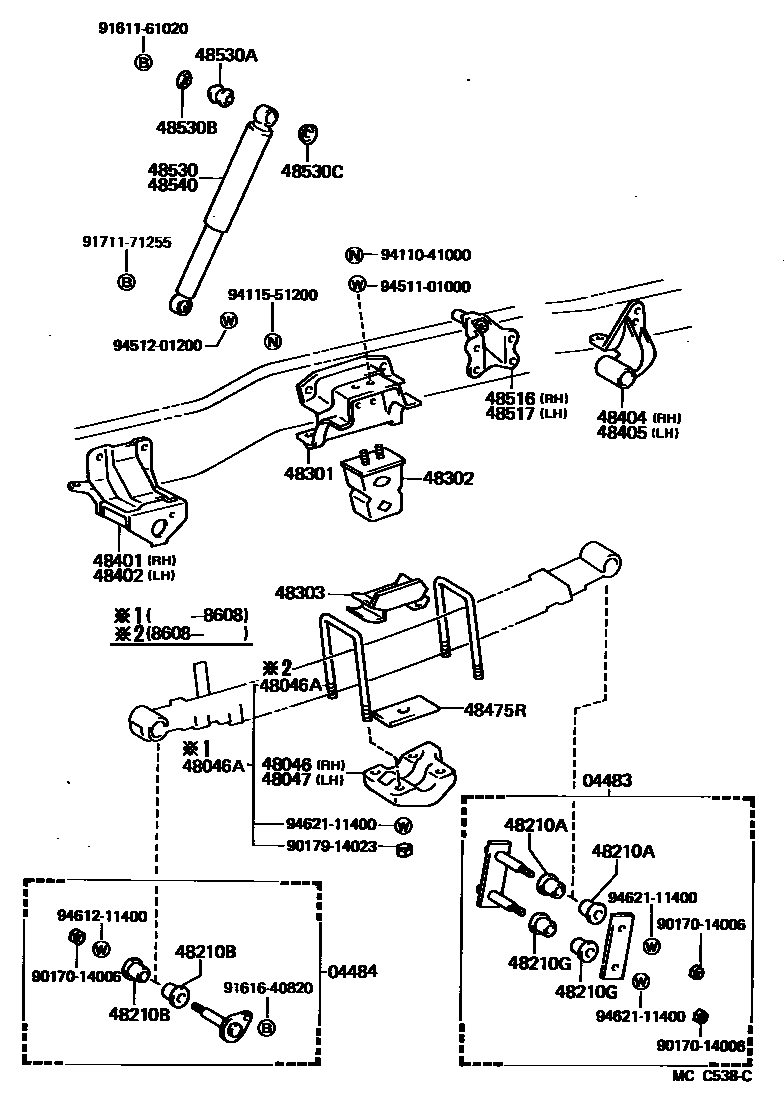

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04483SHACKLE KIT, REAR SPRING

main04483-25011iLY50,60,YY5#,61198508-198708

04484PIN KIT, REAR SPRING

main04482-25011iLY50,60,YY5#,61198508-198708

sub04482-25020

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-25070iLY60,YY61..WT2198508-198708

main48046-25080iLY50,YY50..125..ST198508-198708

sub48046-25090

main48473-25090iLY60,YY52,61..ST;LY50,YY50..(10T,15T)..ST198508-198708

sub48473-25130

48046ABOLT, U(FOR REAR SPRING)

main90117-14009iLY50,YY50..125..ST198608-198708

sub90117-14014

main90117-14014iLY50..15T..WT1..IV198508-198708

main90117-14014iLY60..ST..IV198601-198708

main90117-14035iLY50,60,YY5#,61..WT1198601-198708

main90117-14046iLY50..15T..WT1..IV198601-198708

sub90117-14035

main90117-14046iLY50,60,YY5#,61..WT1198508-198708

sub90117-14035

main90117-16031iLY60,YY61..WT2198608-198708

main90117-16062iLY60,YY61..WT2198608-198708

main90118-14172iLY50,YY50..125..ST198508-198608

sub90117-14009

main90118-14180iLY50,YY50..125..ST198508-198608

sub90117-14014

main90118-16221iLY60,YY61..WT2198508-198608

L=190

sub90117-16062

main90118-16241iLY60,YY61..WT2198601-198608

sub90117-16031

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-25070iLY60,YY61..WT2198508-198708

main48046-25080iLY50,YY50..125..ST198508-198708

sub48046-25090

main48473-25090iLY60,YY52,61..ST;LY50,YY50..(10T,15T)..ST198508-198708

sub48473-25130

48210SPRING ASSY, REAR RH

main48210-25350iLY50,YY50..125..ST198508-198708

main48210-25370iLY50,60,YY50,61..TW1198508-198708

main48210-25390iLY50,YY50..125..WT1198508-198708

main48210-25410iLY60,YY61..125..WT1198508-198708

main48210-25430iLY60,YY61..WT2198508-198708

main48210-25450iLY60..ST..IV198508-198708

main48210-25490iLY50,60,YY52,61..T2..15T..(CBR,DSL)..IV198508-198708

main48210-25570iLY60,YY61..125..WT1198606-198708

main48210-25580iLY50,60,YY52,61..15T..ST198606-198708

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18005iLY50,60,YY5#,61198508-198708

48210BBUSH(FOR REAR SPRING PIN)

main90385-18005iLY50,60,YY5#,61198508-198708

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18005iLY50,60,YY5#,61198508-198708

48301BRACKET SUB-ASSY, HOLLOW SPRING

main48311-25040iLY50,60,YY5#,61..ST198508-198708

RH

main48312-25020iLY50,60,YY5#,61..ST198508-198708

LH

48302SPRING SUB-ASSY, HOLLOW

main48302-25050iLY50,60,YY5#,61..WT1,WT2198508-198708

sub48302-25051

main48302-25070iLY50,60,YY5#,61..ST198508-198708

48303SEAT SUB-ASSY, HOLLOW SPRING

main48303-25040iLY50,60,YY5#,61..WT1198508-198708

main48303-25050iLY50,YY50..125..ST198508-198708

main48303-25060iLY60,YY61..WT2198508-198708

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-25050iLY50,60,YY5#,61..WT1,WT2198508-198708

main48414-25100iLY50,60,YY5#,61..ST198508-198708

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48415-25020iLY50,60,YY5#,61..WT1,WT2198508-198708

main48415-25030iLY50,60,YY5#,61..ST198508-198708

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-25040iLY50,60,YY5#,61..ST198508-198708

main48416-25080iLY50,60,YY5#,61..WT1,WT2198508-198708

sub48405-25020

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48417-25040iLY50,60,YY5#,61..ST198508-198708

main48417-25060iLY50,60,YY5#,61..WT1,WT2198508-198708

sub48406-25020

48475RPLATE, DISTANCE(FOR REAR)

main48475-25010iLY50,60,YY5#,61..ST,WT1198601-198708

main48475-36051iLY60,YY61..WT2198601-198708

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-25040iLY50,60,YY5#,61..WT1,WT2198508-198708

main48505-25050iLY50,60,YY5#,61..ST198508-198708

sub48505-25060

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-25050iLY50,60,YY5#,61..ST198508-198708

sub48505-25060

main48506-25040iLY50,60,YY5#,61..WT1,WT2198508-198708

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-25070iLY50,60,YY5#,61..ST198508-198708

sub48531-80060

main48531-25080iLY50,60,YY5#,61..WT1198508-198708

sub48531-80065

main48531-25090iLY60,YY61..WT2198508-198708

sub48531-80070

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004iLY50,60,YY5#,61198508-198708

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03007iLY50,60,YY5#,61198508-198708

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iLY50,60,YY5#,61198508-198708

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-25070iLY50,60,YY5#,61..ST198508-198708

sub48531-80060

main48531-25080iLY50,60,YY5#,61..WT1198508-198708

sub48531-80065

main48531-25090iLY60,YY61..WT2198508-198708

sub48531-80070

9017014006

main90170-14006

9017914023

main90179-14023

9161161020

main91611-61020

9161640820

main91616-40820

9171171255

main91711-71255

9411041000

main94110-41000

9411551200

main94115-51200

9451101000

main94511-01000

9451201200

main94512-01200

9461211400

main94612-11400

9462111400

main94621-11400

35 parts on this diagram · 6 diagrams in section
