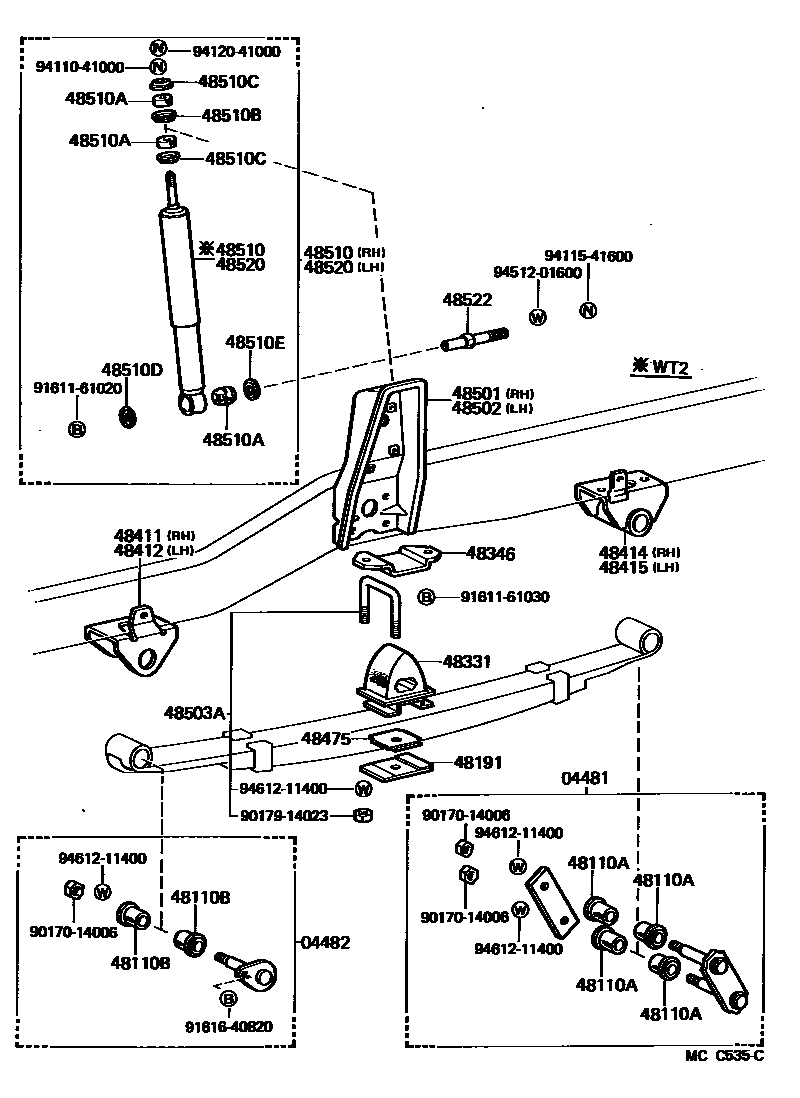

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

04481SHACKLE KIT, FRONT SPRING

main04481-25031iLY50,60,YY5#,61198508-198708

sub04481-25050

04482PIN KIT, FRONT SPRING

main04482-25011iLY50,60,YY5#,61198508-198708

sub04482-25020

48110SPRING ASSY, FRONT, RH

main48110-25460iYY50..125198508-198708

main48110-25480iYY50..10T198508-198708

sub48110-2E050

main48110-25500iLY50..10T198508-198708

main48110-25520iYY52;YY61..15T..ST198508-198708

sub48110-2E020

main48110-25540iYY61..125198508-198708

sub48110-2E020

main48110-25560iLY60..125198508-198708

sub48110-2E020

main48110-25580iLY60,YY61..WT2198508-198708

main48110-25620iYY52,61..15T..WT1..CBR..IV198508-198708

main48110-25640iLY50,60..TS..15T..IV198508-198708

main48110-25660iLY60..125..ST..IV198508-198708

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-18005iLY50,60,YY5#,61198508-198708

48110BBUSH(FOR FRONT SPRING PIN)

main90385-18005iLY50,60,YY5#,61198508-198708

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-25010iLY50,60,YY5#,61..ST,WT1198508-198708

FOR 2CLIP LEAF SPRING

main48191-35020iLY60,YY61..WT2198508-198708

48331BUMPER, FRONT SPRING, NO.1

main48304-36021iLY50,60,YY5#,61198508-198708

48346STOPPER, BUMPER, FRONT

main48346-25090iLY50,60,YY5#,61..(T1,T2,T3)..(ST,WT1)198508-198708

sub48346-25091

main48346-25130iLY60,YY61..WT2;LY50,60,YY50,61..TW198508-198708

48411BRACKET, FRONT SPRING(FOR FRONT RH)

main48411-25050iLY50,60,YY5#,61198508-198601

sub48411-25051

main48411-25051iLY50,60,YY5#,61198601-198708

48412BRACKET, FRONT SPRING(FOR FRONT LH)

main48411-25050iLY50,60,YY5#,61198508-198601

sub48411-25051

main48411-25051iLY50,60,YY5#,61198601-198708

48414BRACKET, FRONT SPRING(FOR REAR RH)

main48433-25050iLY50,60,YY5#,61198508-198708

48415BRACKET, FRONT SPRING(FOR REAR LH)

main48434-25040iLY50,60,YY5#,61198508-198708

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iLY50,60,YY5#,61198508-198708

48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH

main48512-25080iLY50,60,YY5#,61198508-198708

48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH

main48512-25080iLY50,60,YY5#,61198508-198708

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90117-14045iLY50,60,YY5#,61198608-198708

main90117-14047iLY50,60,YY5#,61198508-198708

main90118-14231iLY50,60,YY5#,61198508-198608

L=95

sub90117-14045

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-25150iLY60,YY61..WT2198508-198602

sub48511-29495

main48511-25151iLY60,YY61..WT2198602-198708

sub48511-29496

main48511-29125iLY60,YY61..WT2..IV198508-198708

sub48511-29126

main48511-29125iLY50,60,YY5#,61..ST,WT1198508-198708

sub48511-29126

48510ACUSHION, FRONT SHOCK ABSORBER

main90385-16004iLY50,60,YY5#,61198508-198708

LWR

main90948-01003iLY50,60,YY5#,61198508-198708

UPR

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02017iLY50,60,YY5#,61198508-198708

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iLY50,60,YY5#,61198508-198708

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03007iLY50,60,YY5#,61198508-198708

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iLY50,60,YY5#,61198508-198708

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-25150iLY60,YY61..WT2198508-198602

sub48511-29495

main48511-25151iLY60,YY61..WT2198602-198708

sub48511-29496

main48511-29125iLY50,60,YY5#,61..ST,WT1198508-198708

sub48511-29126

main48511-29125iLY50,60,YY5#,61..ST,WT1198508-198708

sub48511-29126

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25010iLY50,60,YY5#,61198508-198708

9017014006

main90170-14006

9017914023

main90179-14023

9161161020

main91611-61020

9161161030

main91611-61030

9161640820

main91616-40820

9411041000

main94110-41000

9411541600

main94115-41600

9412041000

main94120-41000

9451201600

main94512-01600

9461211400

main94612-11400

34 parts on this diagram · 2 diagrams in section
