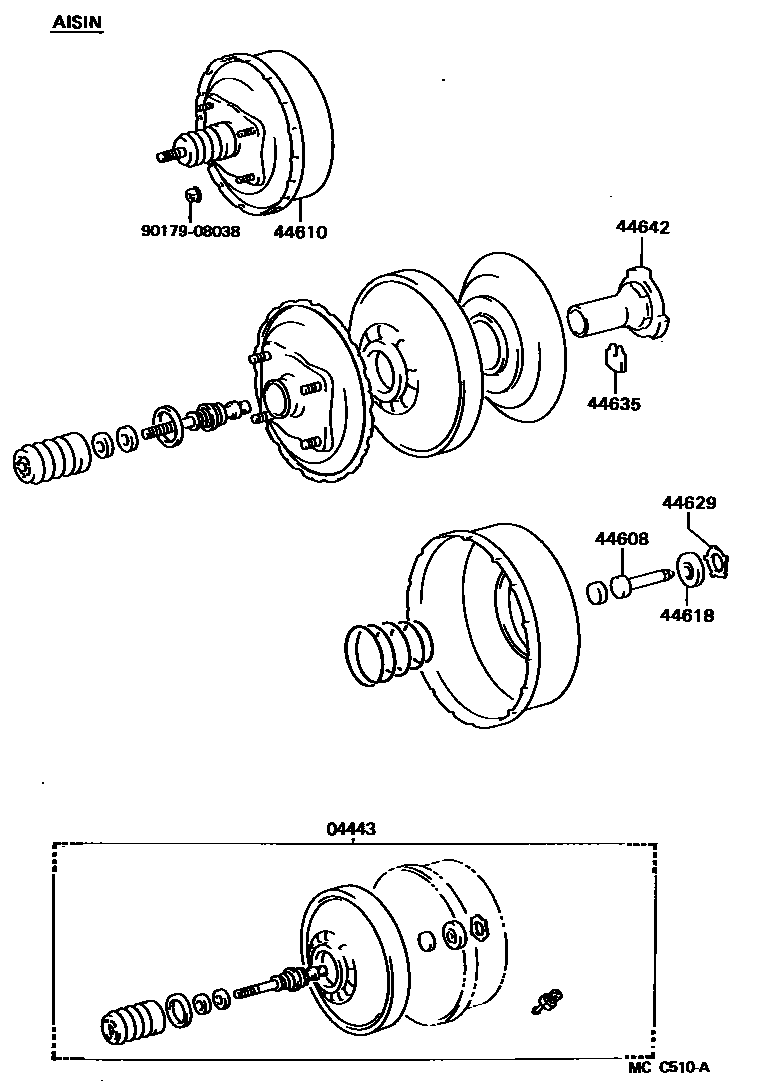

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-25110iLY50,60..WT1198508-198708

main04443-25120iYY5#,61..WT1198508-198708

main04443-25130iLY60..ST,WT2;LY50..(10T,15T)..ST198508-198708

main04443-25140iYY61..ST,WT2;YY5#..(10T,15T)..ST198508-198708

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-36240iLY50,60,YY5#,61..WT1198508-198708

main44608-25150iLY60,YY61..WT2198508-198708

44610BOOSTER ASSY, BRAKE

main44610-25130iLY50,60,YY5#,61..WT1198508-198708

main44610-25150iLY60,YY61..WT2198508-198708

44618SEAL, BOOSTER BODY

main44621-28120iLY50,60,YY5#,61..WT1198508-198708

44629RING, CIRCULAR INTERNAL

main44628-28120iLY50,60,YY5#,61..WT1198508-198708

44635RETAINER, HYDRAULIC VALVE

main44635-36240iLY50,60,YY5#,61..WT1198508-198708

44642PISTON, BRAKE BOOSTER

main44642-36260iLY50,60,YY5#,61..WT1198508-198708

9017908038

main90179-08038

8 parts on this diagram · 4 diagrams in section
