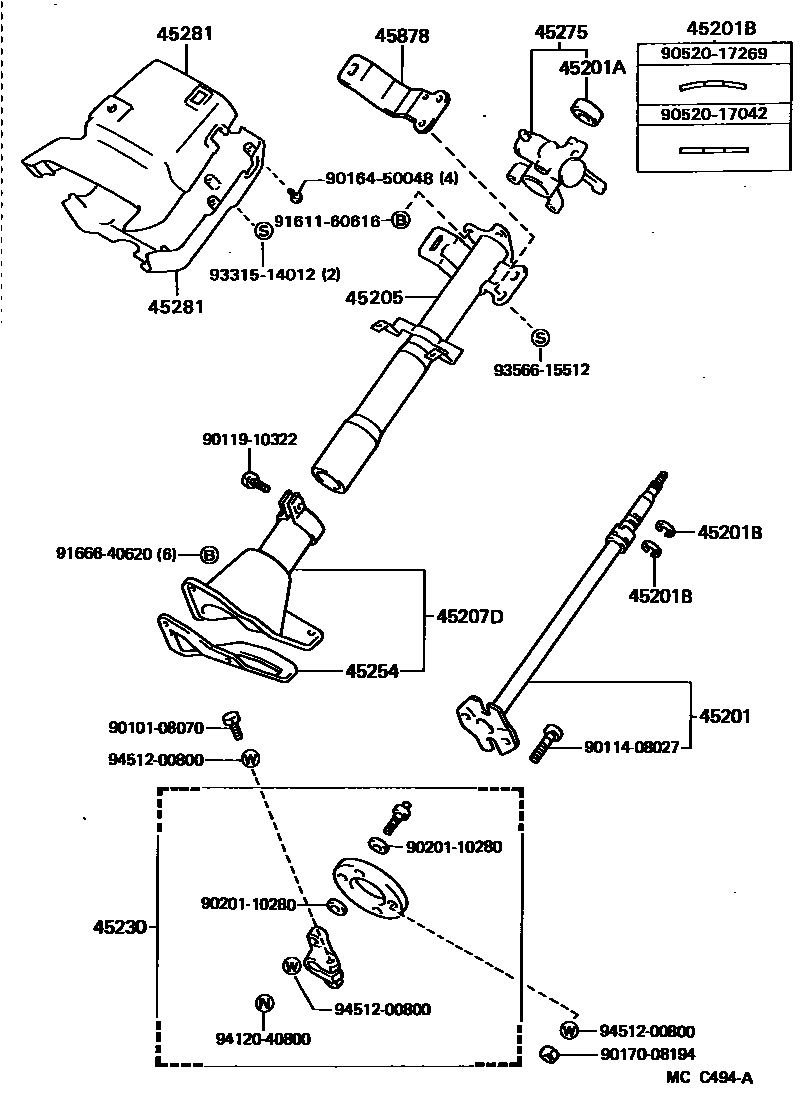

STEERING COLUMN & SHAFT

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-25090iLY50,60,YY5#,61198508-198708

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iLY50,60,YY5#,61198508-198708

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLY50,60,YY5#,61198508-198708

main90520-17269iLY50,60,YY5#,61198508-198708

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-25120iLY50,60,YY5#,61198508-198612

main45205-25121iLY50,60,YY5#,61198612-198708

45207DCOVER SUB-ASSY, MAIN SHAFT JOINT

main45207-25020iLY50,60,YY5#,61198508-198612

sub45207-25021

sub45205-25121

main45207-25021iLY50,60,YY5#,61198612-198708

sub45207-25022

45230COUPLING ASSY, FLEXIBLE

main45230-25010iLY50,60,YY5#,61198508-198604

sub45230-25011

main45230-25011iLY50,60,YY5#,61198604-198708

45254SHIELD, STEERING COLUMN HOLE

main45254-36090iLY50,60,YY5#,61198508-198708

45275BRACKET, STEERING COLUMN, UPPER

main45307-36160iLY50,60,YY5#,61198508-198708

45281HOUSING, STEERING COLUMN

main45286-36680-03iLY50,60,YY5#,61..DYN198508-198708

UPR,SHADOW GRAY,SHADOW GRAY

sub45286-36680

main45286-36680-04iLY50,60,YY5#,61..TOY198508-198708

UPR,BLUE,BLUE

sub45286-36680

main45287-36270-03iLY50,60,YY5#,61..DYN198508-198708

LWR,SHADOW GRAY,SHADOW GRAY

sub45287-36270

main45287-36270-04iLY50,60,YY5#,61..TOY198508-198708

LWR,BLUE,BLUE

sub45287-36270

45878BRACKET, STEERING COLUMN UPPER SUPPORT

main45879-25011iLY50,60,YY5#,61198612-198708

9010108070

main90101-08070

9011408027

main90114-08027

9011910322

main90119-10322

9016450048

main90164-50048

9017008194

main90170-08194

9020110280

main90201-10280

9052017042

main90520-17042

9052017269

main90520-17269

9161160616

main91611-60616

9166640620

main91666-40620

9331514012

main93315-14012

9356615512

main93566-15512

9412040800

main94120-40800

9451200800

main94512-00800

24 parts on this diagram · 1 diagram in section
