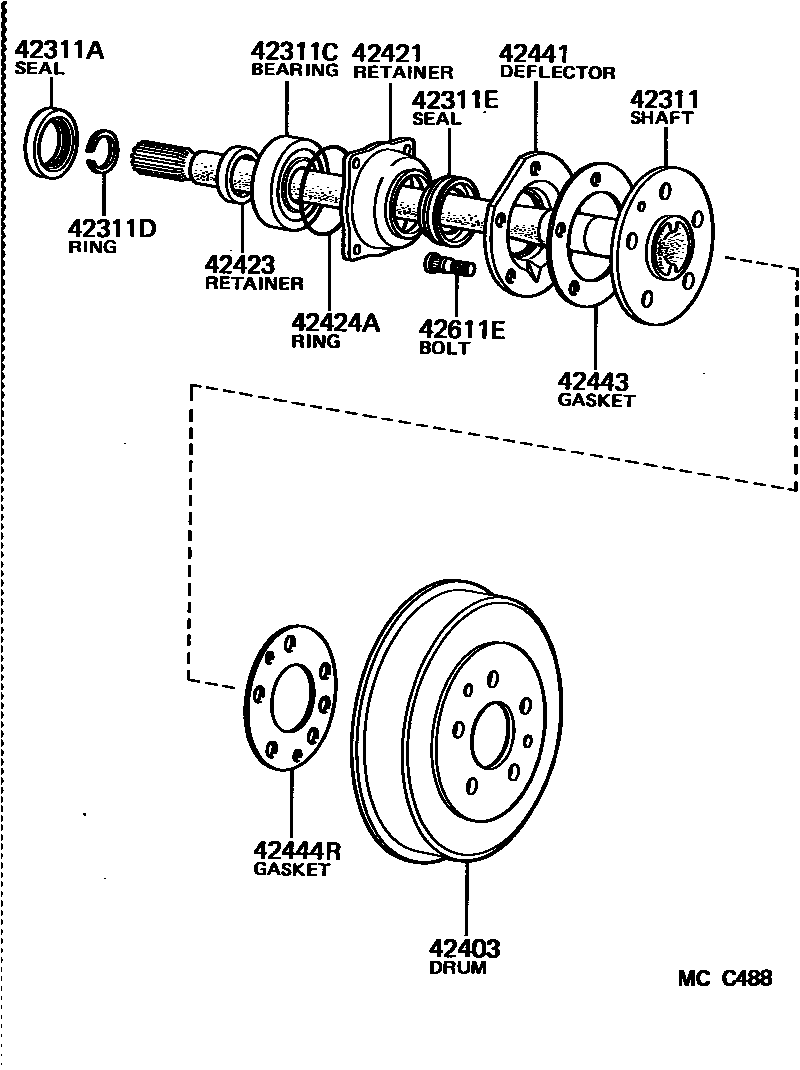

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311SHAFT, REAR AXLE

main42311-25060×2iLY60,YY52,61..ST;LY50,YY50..(10T,15T)..ST198508-198708

sub42311-25061

main42311-25070×2iLY50,60,YY5#,61..WT1198508-198708

sub42311-25071

sub90310-36003

main42311-25080×2iLY50,YY50..125..ST198508-198708

sub42311-25081

main42311-36090×2iLY60,YY61..WT2198508-198708

sub42311-36091

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-35001×2iLY50,60,YY5#,61..WT1198508-198708

main90310-38033×2iLY60,YY61..WT2198508-198708

main90310-50001×2iLY50,YY50..125..ST198508-198708

sub90310-50006

main90311-47001×2iLY60,YY52,61..ST;LY50,YY50..(10T,15T)..ST198508-198708

42311CBEARING(FOR REAR AXLE SHAFT)

main90363-40020×2iLY50,YY50..125..ST198508-198708

main90365-47013×2iLY60,YY52,61..ST;LY50,YY50..(10T,15T)..ST198508-198708

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-36045×2iLY50,YY50..125..ST198508-198708

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-48001×2iLY50,YY50..125..ST198508-198708

42403DRUM SUB-ASSY, REAR BRAKE

main42431-25040×2iLY60,YY52,61..ST;LY50,YY50..(10T,15T)..ST198508-198708

main42431-25060×2iLY60,YY61..WT2198508-198708

main42431-26060×2iLY50,60,YY5#,61..WT1198508-198708

main42431-35060×2iLY50,YY50..125..ST198508-198708

sub42431-25070

42421CASE, REAR AXLE BEARING

main42421-35030×2iLY50,YY50..125..ST198508-198708

42423RETAINER, REAR AXLE BEARING, INNER

main42423-20010×2iLY50,YY50..125..ST198508-198708

42424ARING, O (FOR BEARING RETAINER SET)

main90301-88077×2iLY50,YY50..125..ST198508-198708

42441DEFLECTOR, BRAKE DRUM OIL

main42441-25020×2iLY50,60,YY5#,61..WT1198508-198708

main42441-25030×2iLY60,YY52,61..ST;LY50,YY50..(10T,15T)..ST198508-198708

main42441-35020×2iLY50,YY50..125..ST198508-198708

main42441-36050×2iLY60,YY61..WT2198508-198708

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-25010×2iLY60,YY52,61..ST;LY50,YY50..(10T,15T)..ST198508-198708

main42443-55020×2iLY50,YY50..125..ST198508-198708

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35050×2iLY50,YY50..125..ST198508-198708

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02030×12iLY60,YY52,61..ST;LY50,YY50..(10T,15T)..ST198508-198708

sub90942-02077

main90942-02041×6iLY50,60,YY5#,61..WT1198508-198708

RH

sub90942-02110

main90942-02042×6iLY50,60,YY5#,61..WT1198508-198708

LH

sub90942-02111

main90942-02050×6iLY60,YY61..WT2198508-198708

RH

main90942-02051×6iLY60,YY61..WT2198508-198708

LH

main90942-02052×12iLY50,YY50..125..ST198508-198708

13 parts on this diagram · 4 diagrams in section
