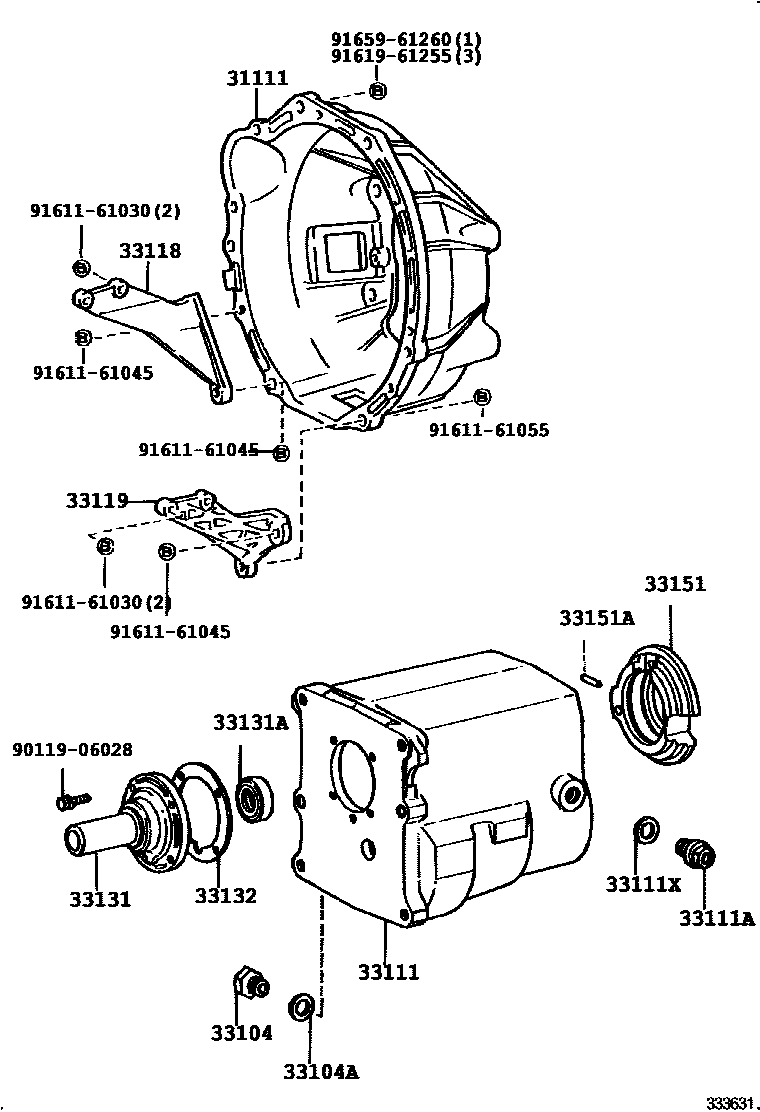

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

31111HOUSING, CLUTCH

main31111-22111iLY50..125198508-198708

sub31111-22112

main31111-25030iLY60;LY50..10T,15T198508-198708

main31111-25040iYY61;YY5#..10T,15T198508-198708

main31111-28010iYY50..125198508-198708

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLY60,YY61;LY50,YY5#..10T,15T198508-198708

main90341-18057iLY50,YY50..125198508-198708

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLY50,60,YY5#,61198508-198708

33111CASE, MANUAL TRANSMISSION

main33101-25010iLY60,YY61;LY50,YY5#..10T,15T198508-198708

sub33101-25H01

sub33101-25H02

main33101-26010iLY50..125198508-198602

sub33101-26900

main33101-26900iLY50..125198602-198708

sub33101-28020

main33111-35031iYY50..125198508-198708

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iLY50,60,YY5#,61198508-198708

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iLY50,60,YY5#,61198508-198708

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLY50,60198508-198708

main33118-36031iYY5#,61198508-198708

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLY50,60198508-198708

main33119-36030iYY5#,61198508-198708

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iYY50..125198508-198708

main33131-26020iLY50..125198508-198708

main33131-35030iLY60,YY61;LY50,YY5#..10T,15T198508-198708

sub33131-35031

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iLY50..125198508-198708

main90311-32012iLY60,YY61;LY50,YY5#..10T,15T198508-198708

main90311-32106iYY50..125198508-198708

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLY50..125198508-198708

main33132-30030iYY50..125198508-198708

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-26010iYY50..125198508-198708

main33151-28010iLY50..125198508-198708

main33151-35020iLY60,YY61;LY50,YY5#..10T,15T198508-198708

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iYY50..125198508-198708

9011906028

main90119-06028

9161161030

main91611-61030

9161161045

main91611-61045

9161161055

main91611-61055

9161961255

main91619-61255

9165961260

main91659-61260

19 parts on this diagram · 5 diagrams in section
