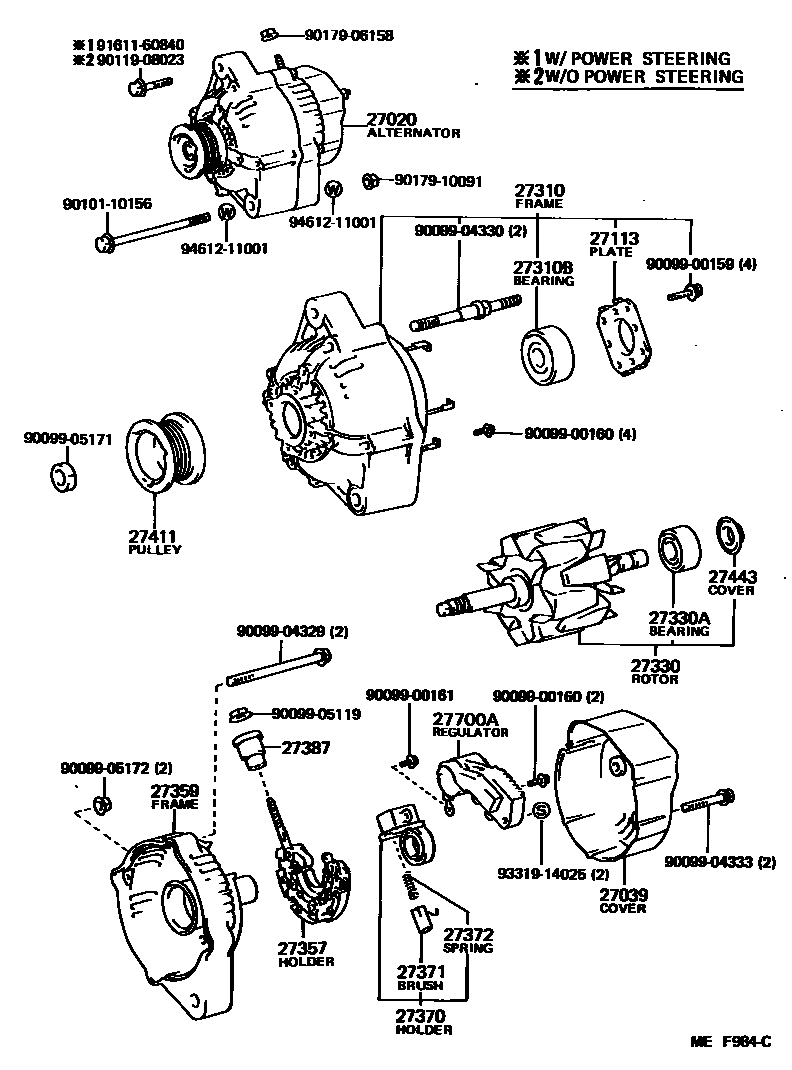

ALTERNATOR

0001 112V 45A 0002 112V 45A 0003 112V 55A

27020ALTERNATOR ASSY

main27020-54270i2L..LY50,60198508-198708

main27020-54290i2L..LY60..15T..(ST,WT2)..IV198508-198708

main27060-72110i1Y,3Y#..YY5#,61198508-198608

main27060-72111i1Y,3Y#..YY5#,61198608-198708

27039COVER, ALTERNATOR REAR END

main27039-72150i1Y,3Y#..YY5#,61198508-198708

12V 45A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-57060i2L..LY50,60198508-198708

12V 45A,55A

main27312-72120i1Y,3Y#..YY5#,61198508-198708

12V 45A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-54110i2L..LY50,60198508-198708

12V 45A

sub27310-54111

main27310-54130i2L..LY60..15T..(ST,WT2)..IV198508-198708

12V 55A

sub27310-54131

main27310-72150i1Y,3Y#..YY5#,61198508-198708

12V 45A

sub27310-72151

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i2L..LY50,60198508-198708

12V 45A,55A

main90099-10170i1Y,3Y#..YY5#,61198508-198708

12V 45A

sub90099-10198

27330ROTOR ASSY, ALTERNATOR

main27330-54290i2L..LY60..15T..(ST,WT2)..IV198508-198708

12V 55A

main27330-56340i2L..LY50,60198508-198708

12V 45A

main27330-72150i1Y,3Y#..YY5#,61198508-198708

12V 45A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10154i1Y,3Y#..YY5#,61198508-198708

12V 45A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-54190i2L..LY50,60198508-198708

12V 45A

main27357-64060i2L..LY60..15T..(ST,WT2)..IV198508-198708

12V 55A

main27357-72150i1Y,3Y#..YY5#,61198508-198708

12V 45A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-72150i1Y,3Y#..YY5#,61198508-198708

12V 45A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-54010i2L..LY50,60198508-198708

12V 45A,55A

sub27370-54250

main27370-63021i1Y,3Y#..YY5#,61198603-198708

12V 45A

sub27370-70300

main27370-72100i1Y,3Y#..YY5#,61198508-198603

12V 45A

sub27370-63021

27371BRUSH, ALTERNATOR

main27371-56070i2L..LY50,60198508-198708

12V 45A,55A

sub27371-54412

main27371-63020i1Y,3Y#..YY5#,61198508-198708

12V 45A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-56070i2L..LY50,60198508-198708

12V 45A,55A

main27372-72100i1Y,3Y#..YY5#,61198508-198708

12V 45A

sub27372-63020

27387INSULATOR, TERMINAL

main27387-10050i1Y,3Y#..YY5#,61198508-198608

12V 45A

main27387-10080i1Y,3Y#..YY5#,61198608-198708

12V 45A

27411PULLEY, ALTERNATOR

main27411-54170i2L..LY50,60198508-198708

12V 45A,55A

sub27411-54171

main27411-72120i1Y,3Y#..YY5#,61198508-198708

12V 45A

27443COVER, ALTERNATOR BEARING

main27443-63020i1Y,3Y#..YY5#,61198508-198708

12V 45A

27700AREGULATOR ASSY, GENERATOR

main27700-10050i1Y,3Y#..YY5#,61198508-198708

12V 45A

sub27700-10080

main27700-44020i2L..LY50,60198508-198708

12V 45A,55A

sub27700-44021

9009900159

main90099-00159

9009900160

main90099-00160

9009900161

main90099-00161

9009904329

main90099-04329

9009904330

main90099-04330

9009904333

main90099-04333

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010110156

main90101-10156

9011908023

main90119-08023

9017906158

main90179-06158

9017910091

main90179-10091

9161160840

main91611-60840

9331914025

main93319-14025

9461211001

main94612-11001

32 parts on this diagram · 3 diagrams in section
